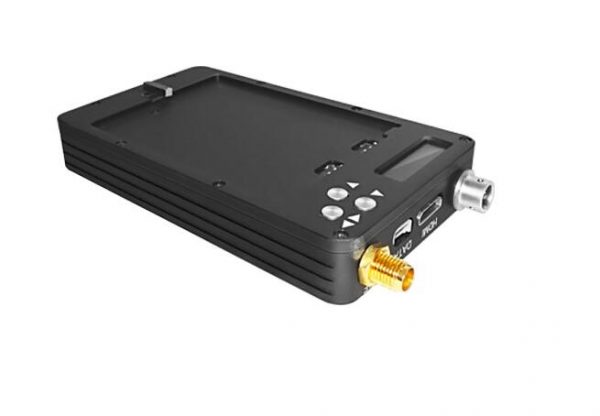

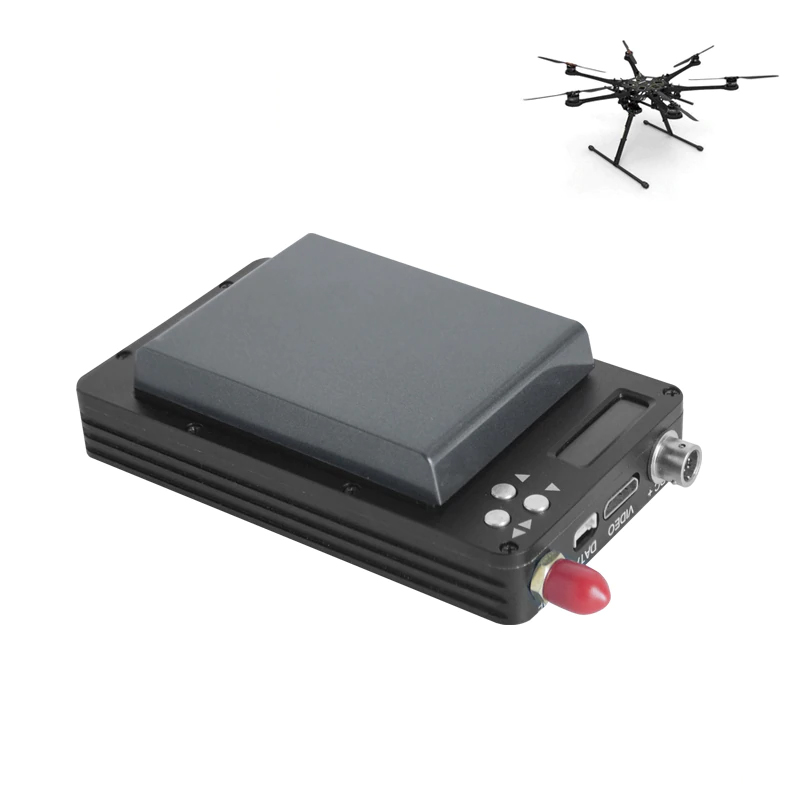

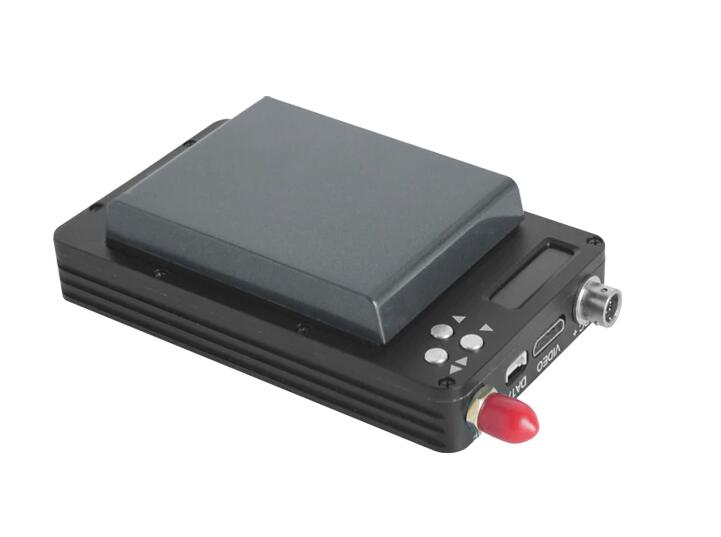

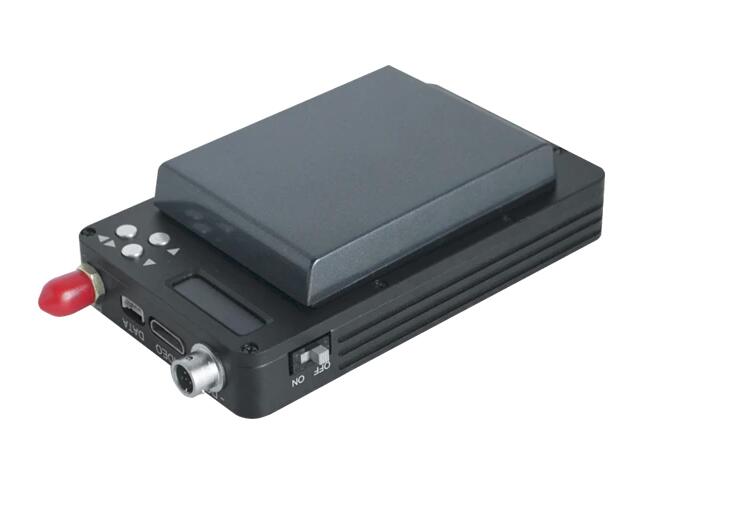

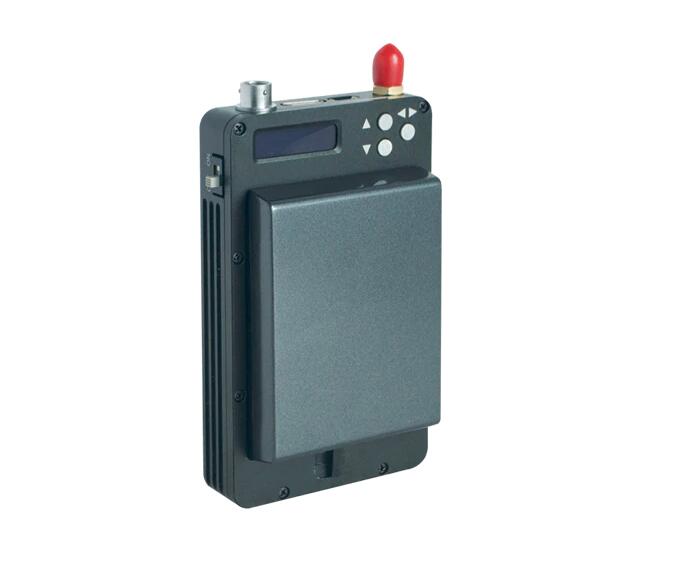

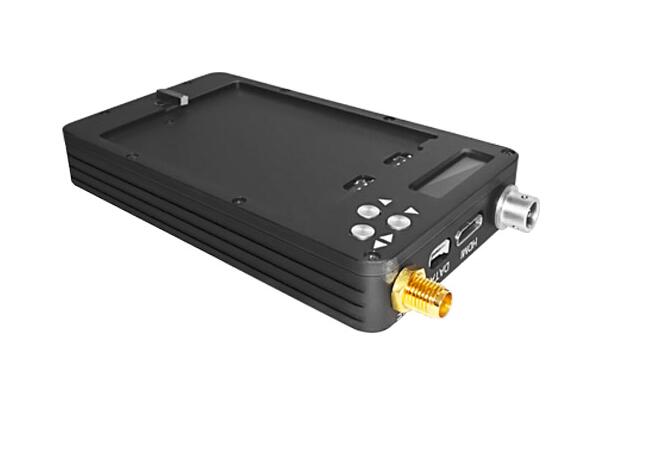

Mini COFDM HD Video Transmitter For UAV / UGV LOS/NLOS 20KM Long Range Digital Video Link with AES Encryption

Special Features:

  1. 1080P HD transmitter,minimum volume, lightweight and safety;
  2. LOS/NLOS distance:10-20km(on helicopter); 500m(personal carried);
  3. CODFM modulation, widely used in UAV or covert investigation applications;
  4. New design COFDM product, very easy for carrying and hiding.

Description:

The exclusive design Mini H.264 HD wireless video transmitter KP-HDS1000A is using the 4th generation mobile communication core COFDM multi-carrier modulation technology, high efficiency innovative H.264 compression encoding, integrated with high light,low power consumption of OLED display control panel, integrating digital modulation,audio and video compression in combo,highly integrated HD move, NLOS digital video transmission equipment. Its advantages small size, light weight that can transmit high quality full 1080P hd video and audio even though there are some building blocks or high-speed mobile shooting.

It’s widely used in UAV aviation filming,military,covert investigation, image monitor and real-time wireless video transmission and so on.

Feature:

  • COFDM modulation, H.264 compression;
  • Modular design and highly integrated
  • NTSC/PAL automatically adapt ,support user adjustable;
  • Shortly time delay;
  • Supports high-speed mobile NLOS ( Non Light Of Sight ) transmission;
  • Lithium battery for power supply (continuous working time is 3 hours max)
  • Adjustable working frequency,bandwidth,RF power and etc.
  • Transmission security by encryption of AES 265 bit
  • Good quality image without any mosaic;
  • Transmitter only has 195g net weight(without battery),very easy for portable and UAV applications.
  • Matched with multifunction amplifier for longer range requirement.

Transmitter parameters:

Voltage  DC7.2V(7.2V/1400mA standard matching mini battery)
Current 1A
Video Input AV:3.5mm port,connect to standard resolution analog video signal
Camera:2.5mm port,connect to HD camera;
HD-SDI/HDMI:support HD1080P,720P,576,480; with audio demultiplexing function)
Data Input (option) RS232/RS485/TTL
Frequency 300-1400MHz(subdivided)
Bandwidth 2/2.5/4/8MHz(adjustable)
Output power 30dBm max(100-1000mW adjustable)
Data encryption AES128/256bits
Modulation COFDM
FEC 1/2、2/3、3/4、7/8
Guard Interval 1/32、1/16、1/8、1/4
Video Compression H.264
Standard Video Format PAL/NTSC (autoadaptation)
Parameter control method Set the related parameters through the control panel
RF Interface SMA
Working temperature -20℃~75℃
Transmission distance 10-20km LOS(on air)300-500m NLOS(body-worn)

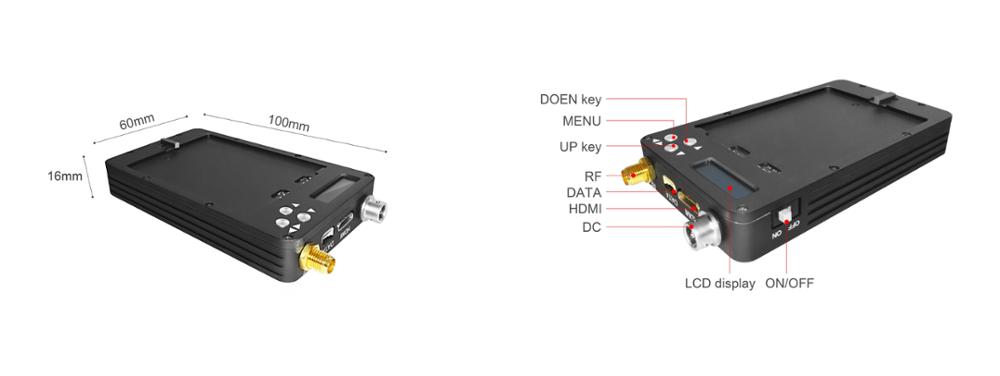

Dimension 100*59*22mm
Weight 195g(without battery)

Receiver specificatations:

Frequency 300-900MHz(option)
Bandwidth 2/2.5/4/8MHz (adustable)
RF Level Input -92dBm~-20dBm / -105dBm~-20dBm
RF Impedance 50Ω
RF Interface N female
Modulation COFDM
Constellation QPSK,16QAM,64QAM(optional),
QPSK/16QAM/64QAM @ 6/7/8MHz
FEC 1/2,2/3,3/4,5/6,7/8 (optional)
Guard Interval 1/32,1/16,1/8,1/4 (optional)
Carrier 2K,8K
Video Decoding ISO/IEC13818-2 [email protected]
Aspect Ratio 4:3, 16:9
Resolution 720×576(PAL) , 720×480(NTSC)
Audio Output Analog stereo left and right channels
Lines of horizontal 625 or 525 Line
Decryption AES256 bit / ALLTECH Basic scrambling
Working Voltage AC220V / DC12V
Temperature -30~70°

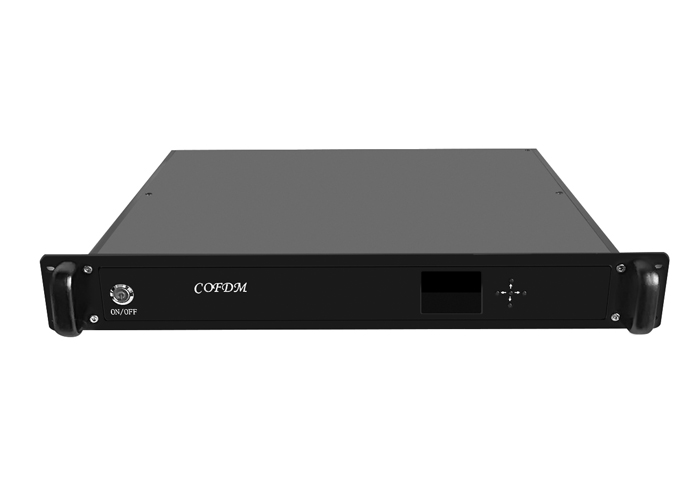

Dimension 430*310*65mm (1U Aluminium alloy box)
Weight 3.5 kg

Application:

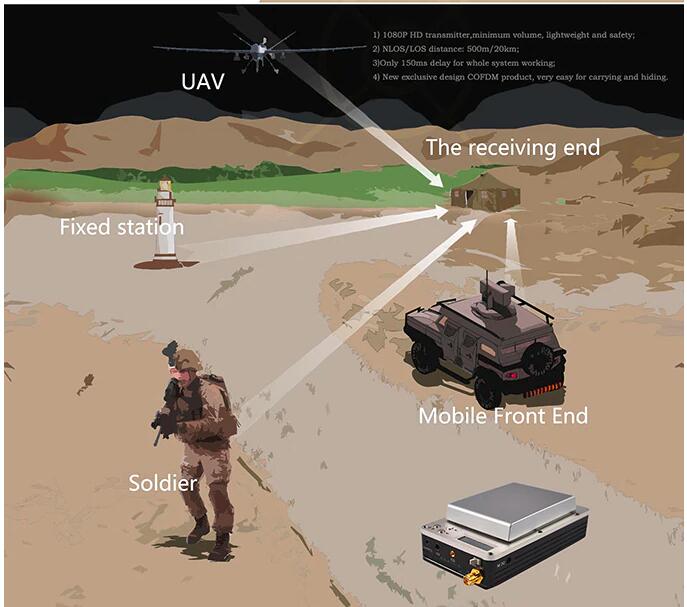

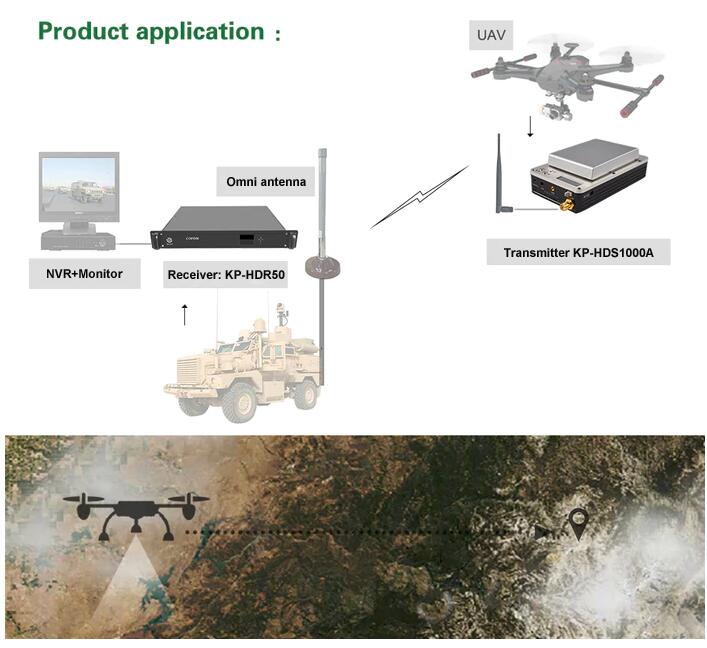

This special designed system is for long range distance for any AV equipment , has been widely used in UAV, Police Forces, First Respondents, Security Services, Fire Services, Port Security, Homeland Security, Traffic Management, Police Technical Support Units, Special Forces, Military Command and Control Posts, Airport, Border Control, Major Incident support.

Weight 8 kg
Dimensions 55 × 33 × 22 cm

Transmitter parameters:



Voltage  DC7.2V(7.2V/1400mA standard matching mini battery)
Current 1A
Video Input AV:3.5mm port,connect to standard resolution analog video signal
Camera:2.5mm port,connect to HD camera;
HD-SDI/HDMI:support HD1080P,720P,576,480; with audio demultiplexing function)
Data Input RS232/RS485/TTL(option)
Frequency 300-1400MHz(subdivided)
Bandwidth 2/2.5/4/8MHz(adjustable)
Output power 30dBm max(100-1000mW adjustable)
Data encryption AES128/256bits
Modulation COFDM
FEC 1/2、2/3、3/4、7/8
Guard Interval 1/32、1/16、1/8、1/4
Video Compression H.264
Standard Video Format PAL/NTSC (autoadaptation)
Parameter control method Set the related parameters through the control panel
RF Interface SMA
Working temperature -20℃~75℃
Transmission distance 10-20km LOS(on air)

300-500m NLOS(body-worn)

Dimension 100*59*22mm
Weight 195g(without battery)
