SIYI HM30 Full HD Digital Video Link Telemetry Radio System Dual-Way Transmission for drone

(1 customer review)



SIYI HM30 Full HD Digital Video Link Telemetry Radio System Dual-Way Transmission for drone

SIYI HM30 is a 30KM level 150ms low latency 1080P full HD video link based on the latest image transmission technology. Abundant features and powerful performance make it a commonly applied device of reliable FPV view and solid control on FPV planes, commercial drones, unmanned vehicles and boats, and robotics.

Technical Specs

Max FPV Range: 30 KM
Datalink Stream supported FC (Mavlink): Pixhawk, APM, SN+, SN-NAVI, MATEK H743/F405, or any other flight controllers with UART output
Video Stream supported GCS (RTSP): QGroundControl, SIYI FPV

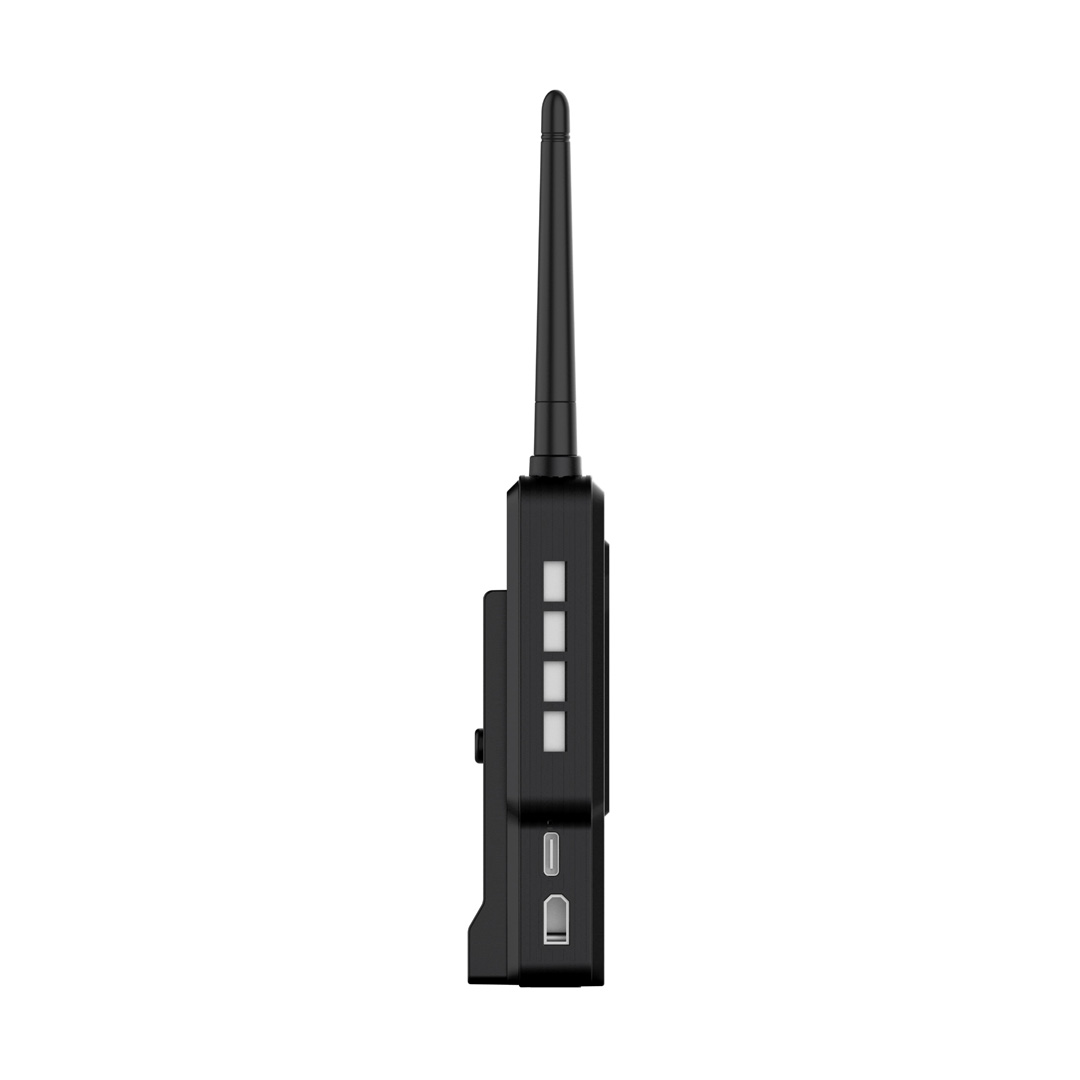

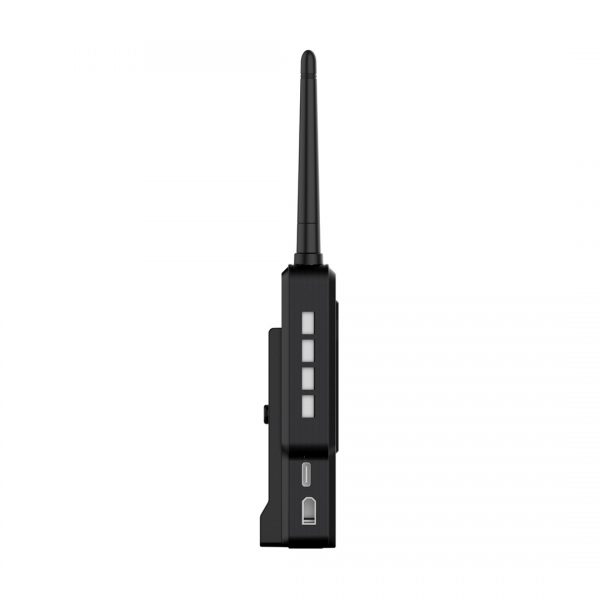

Functional Interface:
RC: Remote control signal input
UART: Datalink output
LAN: Ethernet port
VCC: Power output
Type-C: USB video stream output, PD fast charging, PC firmware update, USB WiFi
XT30 VCC: Power input
1/4” Screw Hole: Tripod connector

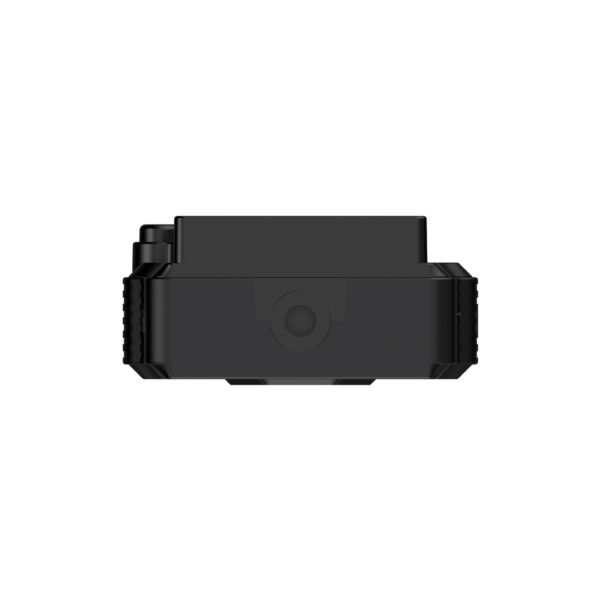

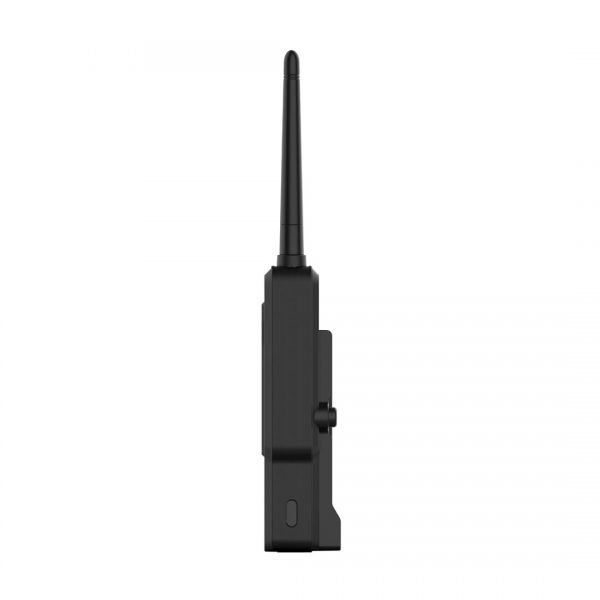

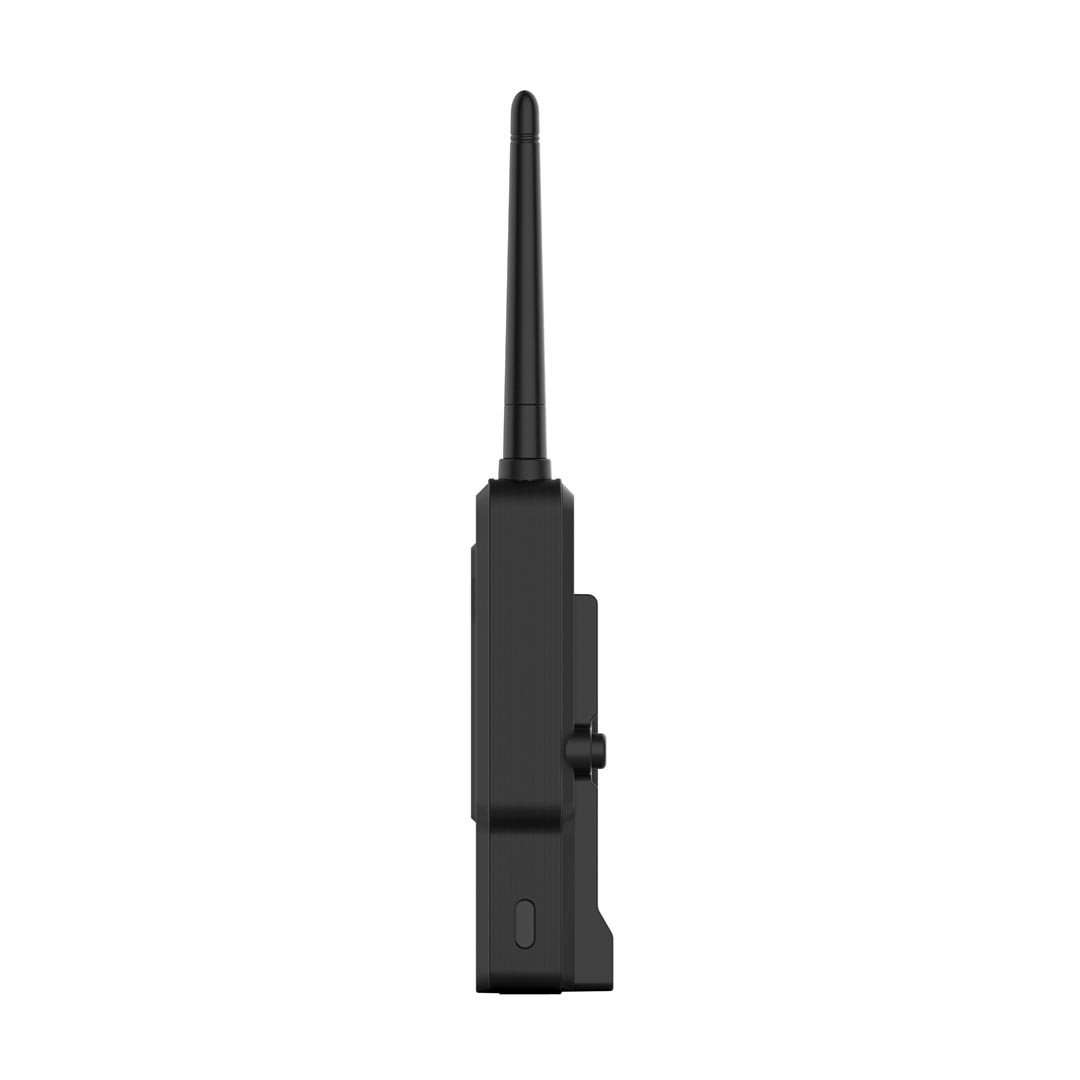

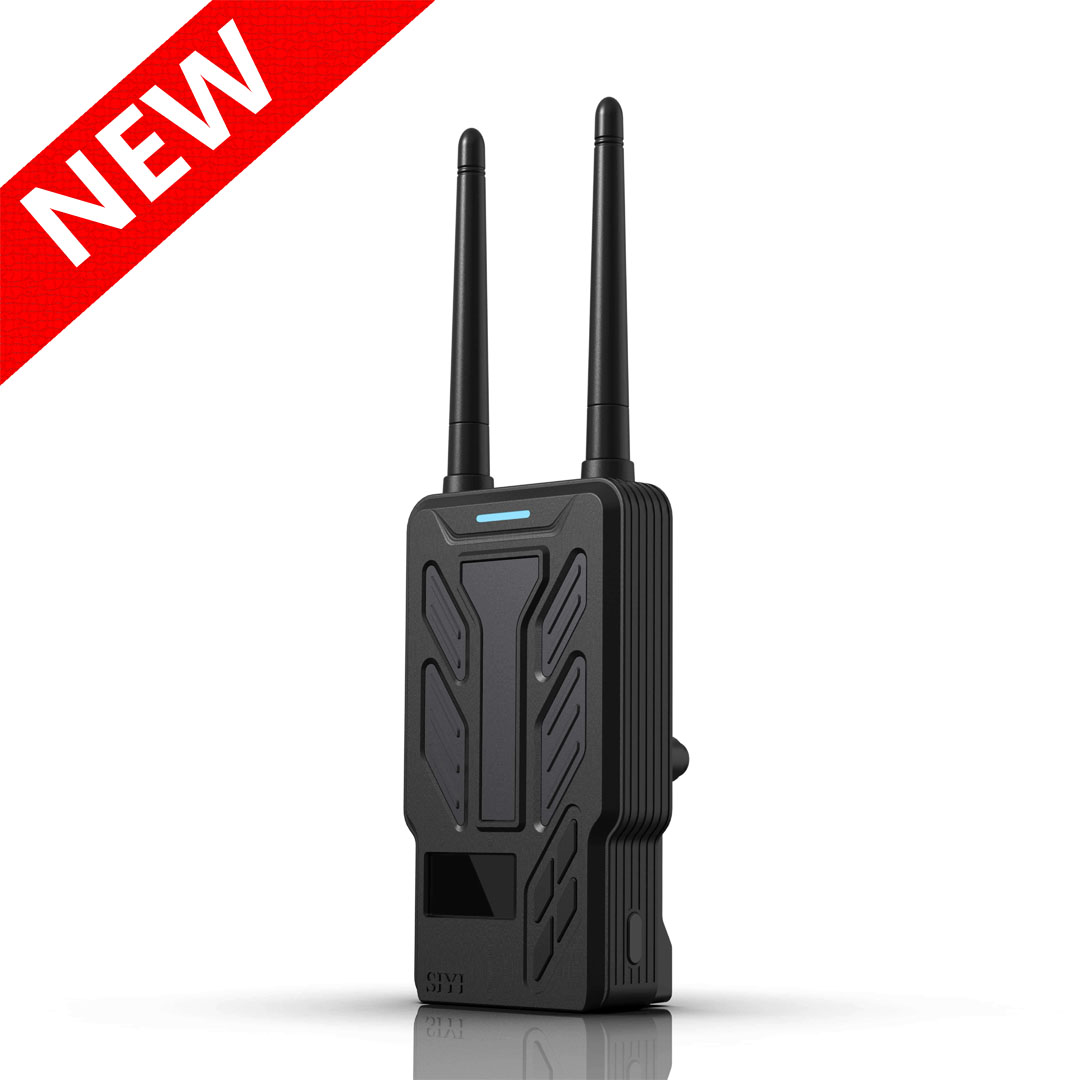

Ground Unit
Monitor: 0.96” OLED Screen
Dimension (antenna and battery excluded): 109 x 61 x 28 mm
Item Weight (antenna and battery excluded): 132 g
Working Temperature: -10 ~ 50 ℃

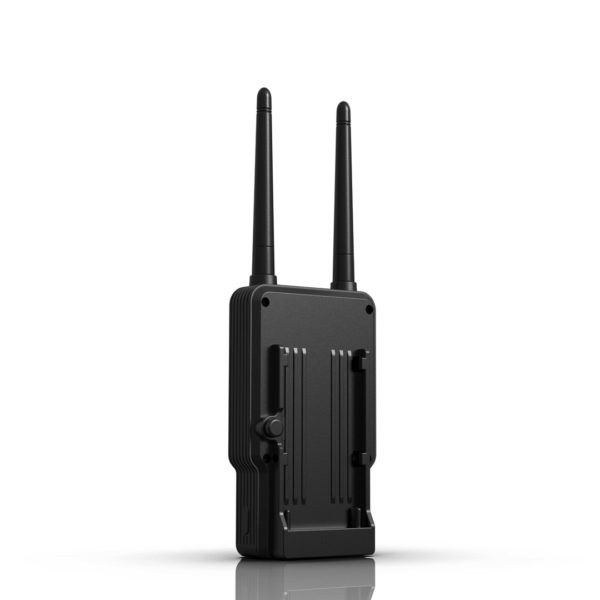

Supported Battery:
NP-F970 / F750 / F550 / F770 / F950 quick-release battery
*HM30 Fly More Combo comes with NP-F750 battery
Charging: PD 30 W fast charging
Antenna Gain:
Omni Antenna: 5 dBi
Long Range Antenna: 11 dBi
Power Consumption: 5 W
Waterproof Level: IP53

Air Unit
Signal Output: 16 CH S.Bus, 5 CH PWM
Functional Interface:
S.Bus: Remote control signal output
UART: Datalink output to FC
PWM: PWM signal output (CH 1 to 5)
Ethernet: Video stream input
Type-C: Firmware update
Dimension (antenna excluded, fan included): 70 x 55 x 24 mm
Item Weight (antenna excluded, fan included): 74 g
Antenna Gain: 5 dBi
Working Voltage:
11 ~ 16.8 V
*Expandable to 14 ~ 58.8 V with BEC.
Working Temperature: -10 to 50 ℃

FPV Camera
Camera Angle: FOV 120°
Max Resolution: 1080 p @ 30 fps
Dimension: 42 x 42 x 25 mm
Item Weight: 23 g
Working Temperature: -10 ~ 50 ℃

Weight 1 kg
Dimensions 30 × 20 × 10 cm
