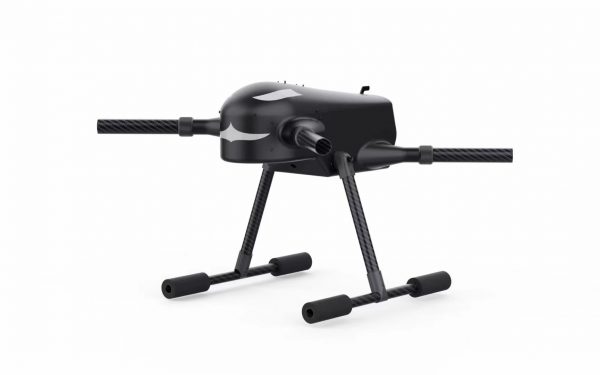

long endurance quadcopter FD465 reach120 minutes and 7 KGS max payload capacity



long endurance quadcopter FD465 120 minutes and 7 KGS max payload capacity

long endurance quadcopter FD465 for customize building your own drone kit can be a fun and rewarding experience. It is a highly customization KIT which comes disassembled with a lot of moving parts and you’ll have to assemble it according to your needs.  Drones have made a positive impact in different professional industries today. This is attributed to their user controlled capability, their ability to capture high quality videos and even transport huge payloads.  Today, drones have provided filming and aerial photography experts with a new perspective. Multi rotor drones can be fitted with 4K cameras which allow users to take overhead shots great for filming and aerial photography.Realtors have not been left behind when it comes to drones. They use them to conduct aerial photography of sprawling properties. This makes it easier to showcase the property to interested buyers plus it saves time. Surveyors and GIS experts are turning to drones to map different sections of the land. The images and video footage collected can be converted into 3D models, contour maps and others. They can be used by law enforcement agencies to provide risk free aerial surveillance. In wildlife sanctuaries, they provide surveillance of wild animals and present location of poachers.

The price is just for frame KIT, not include any electronics

Body material:  3K carbon fiber integrated molding (vacuum autoclave process)
Aircraft deployment size:   978mm*922mm*442mm
Aircraft folding size:  465mm*415mm*442mm
Aircraft wheelbase:   1200mm(subjct to actual collocation)
Power :  FOC integrated waterproof and dustproof power
Aircraft weight:   2 KGS
Battery : two units 6S 36000mah power battery
Maximum load weight:   7kg;    Max take off weight: 17KGS
Landing gear:   quick release fixed or retractable landing gear
Endurance:   No load : ≥ 120 minutes  ,  Loading 1 KG 100 minutes, Loading 3KGS 80 minutes, Loading 5 KGS 55 minutes,  Loading 7KGS: 45 minutes,
Wind resistance level:  ≤6
Flying radius:   15km
Maximum flight speed :  ≤13m/s
Positioning accuracy Vertical direction: ±0.5m Horizontal direction: ±1.5m
Flight mode attitude flight, GPS flight, pointing flight, route mission flight

Recommend motor: Tmotor U8 kv190  motor, 60A ESC, and 29″ propeller


Weight 5 kg
Dimensions 100 × 80 × 30 cm
