drone camera gimbal 36x starlight object tracking gimbal stabilizer for uav drone

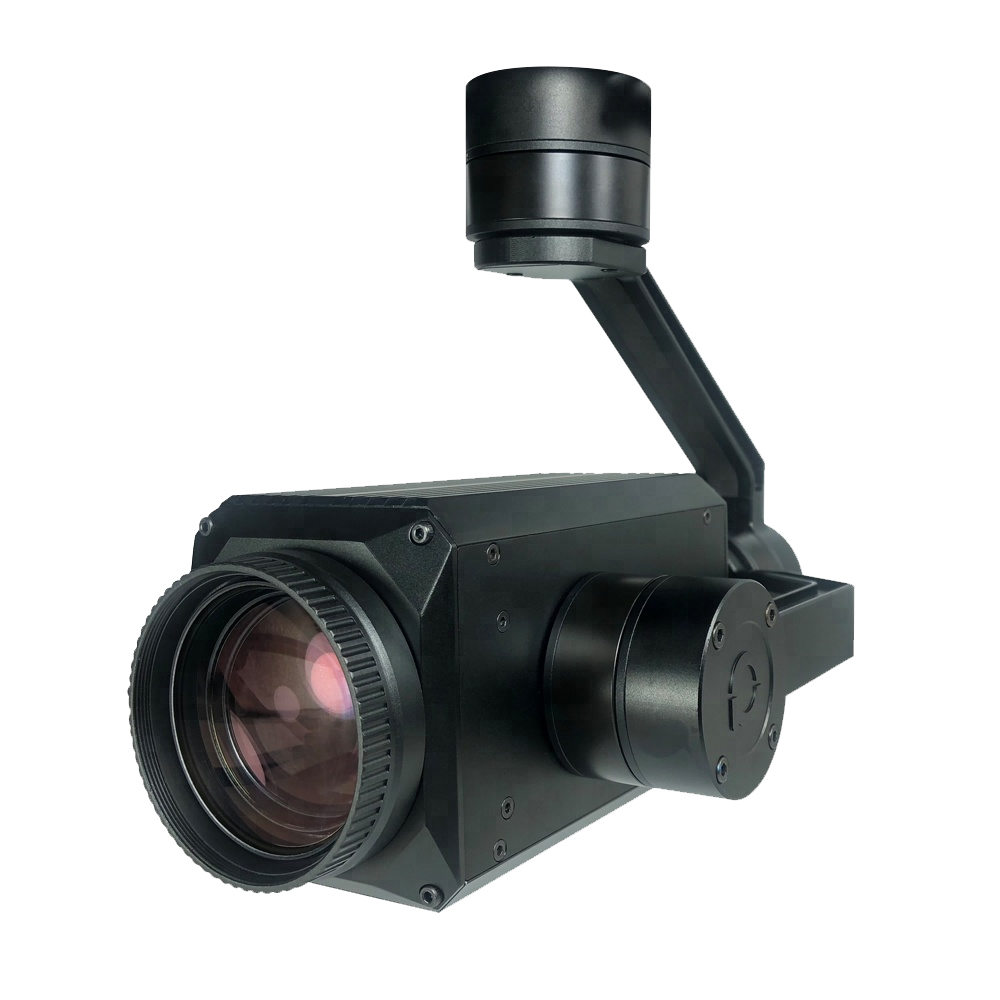

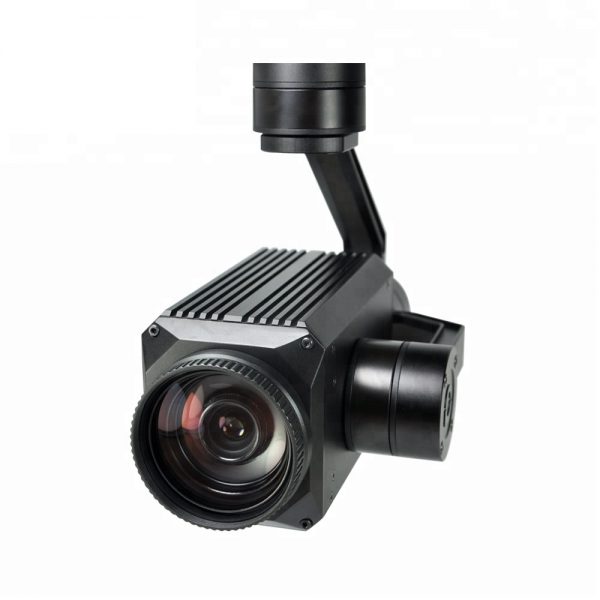

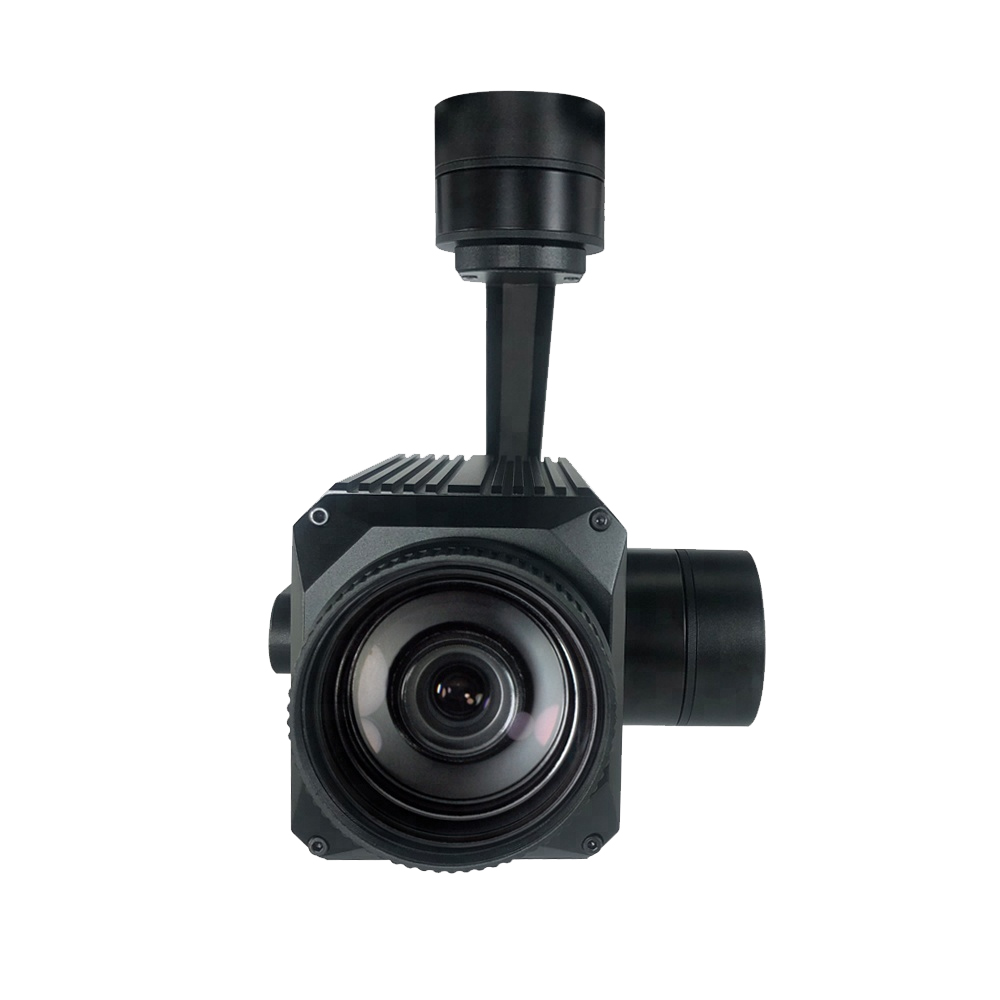

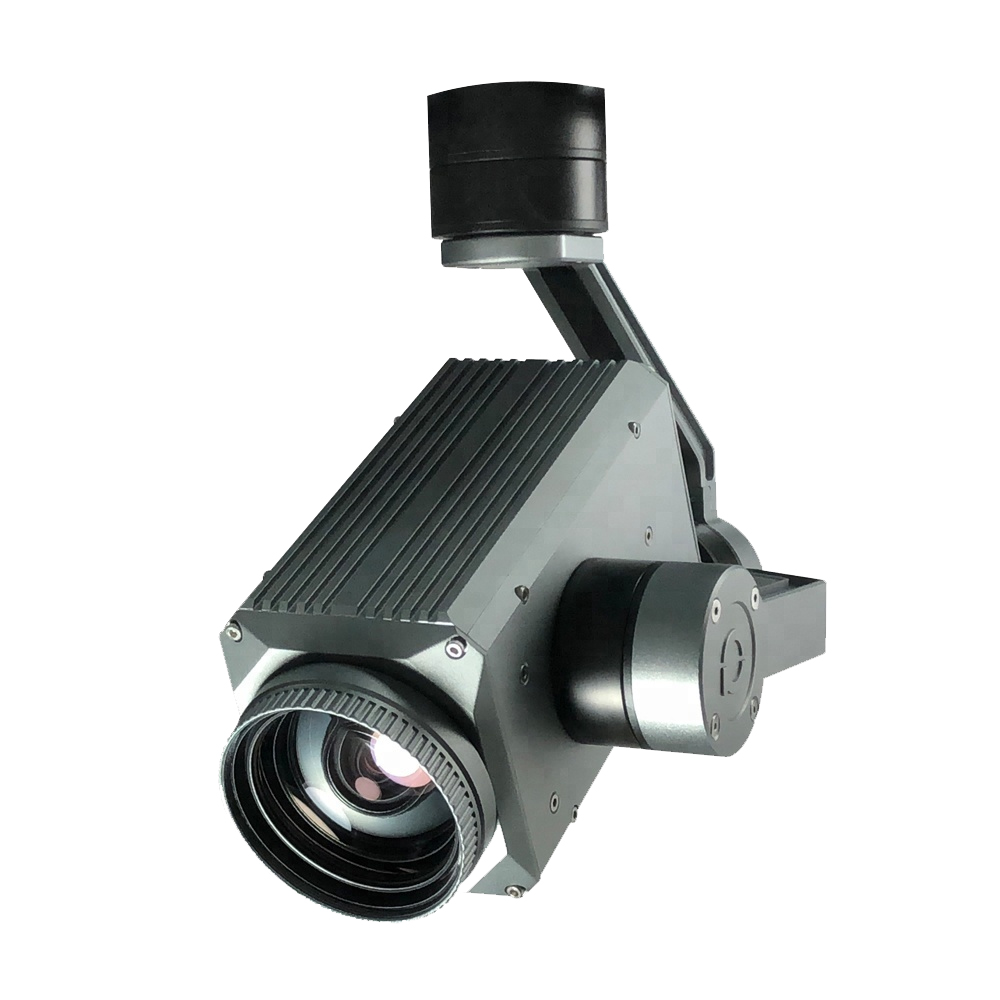

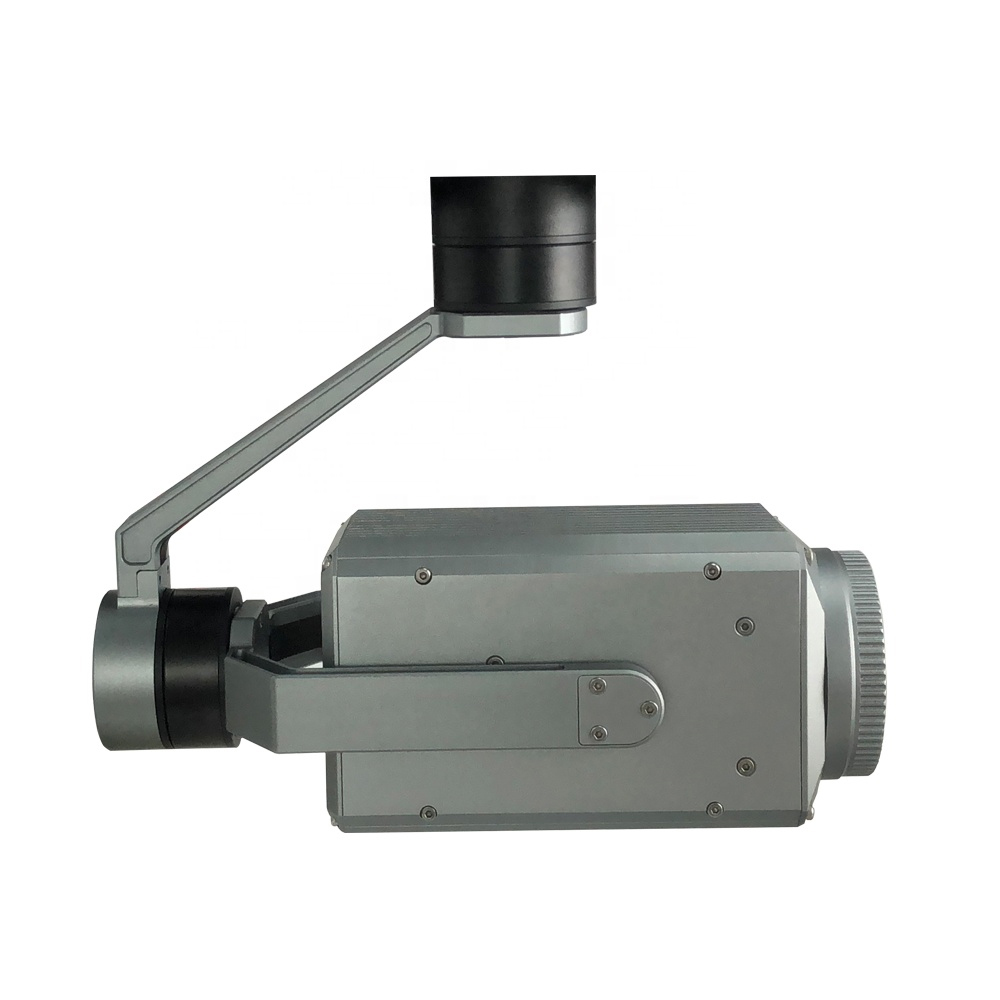

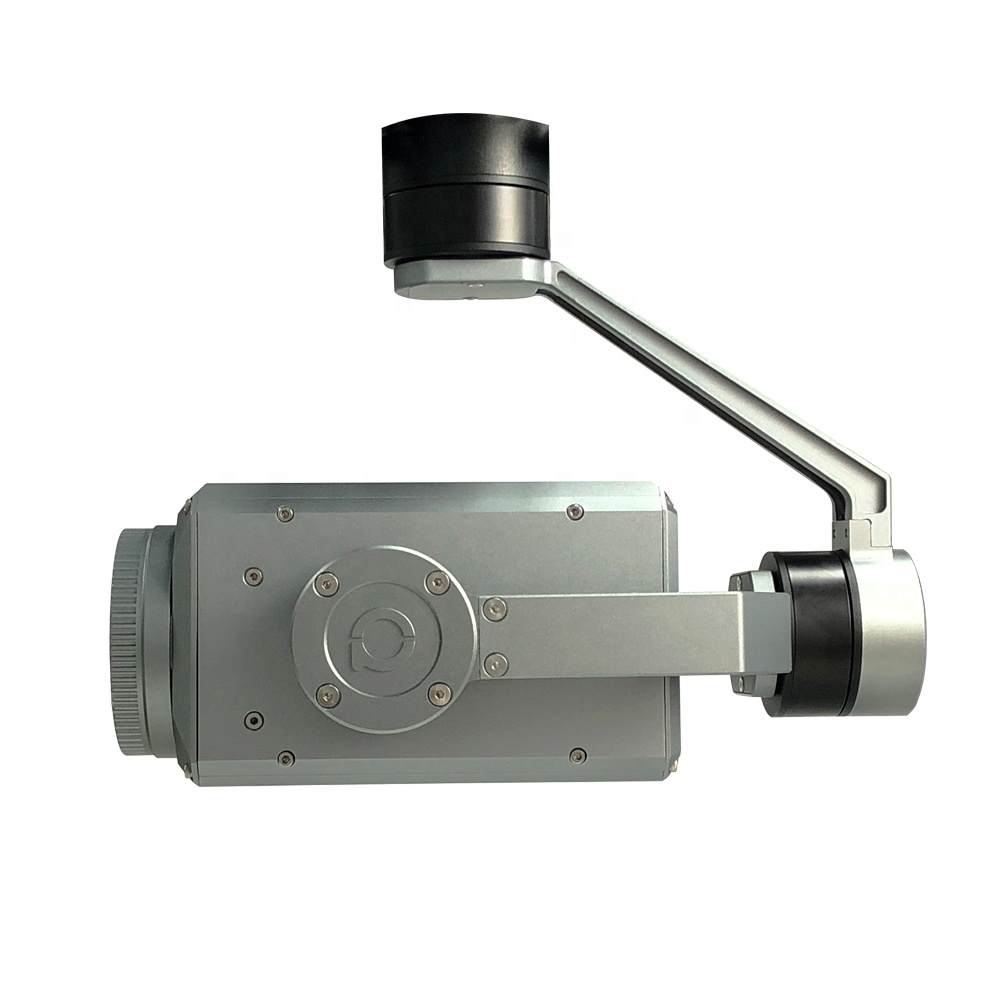

drone camera gimbal Z36T gimbal camera features a 36x optical zoom lens. It powered by 1/1.9″ CMOS module, with 0.005lux(@)F1.5 starlight level min illumination, 2.38 mega effective pixels, fast auto-focus speed, 1080p HD image quality, combined with 36x advanced optical zoom technology, designed for UAV aerial photography. At the same time, Z36T can achieve target tracking. All the parameters have been perfectly set, you just need to install the gimbal camera to UAV, then Ready to fly.The gimbal can be controlled in three directions: YAW, ROLL and PITCH, We use FOC solution can greatly compensate the vibration of UAV. The image is very stable even at 36 times optical zoom.

Working voltage
12v
Pitch/Tilt
±90°
Output
Micro HDMI(HD 1080P 60fps)
Roll
±85°
Local storage
SD card up to 128G
Yaw/Pan
±170°
Power consumption
≤6.6w
Warranty
1 years
Item Name
Starlight gimbals camera
Image sensor
1/1.9″CMOS
Control method
PWM/TTL/S.BUS
MOQ
1 Piece
Model Number
Viewpro Z36T
N.W.
945G
Input voltage
4S~6S
Package meas
360*300*250mm

Advantages

* Highly competitive cost
* DJI’s strategic partner
* Leading in the field for UAV payload of advanced technology.
* Certified by CE/ROHS authoritative institution.

drone camera gimbal drone camera gimbal

SKU: 5487FB8/19-45 Categories: ,
Weight 3 kg
Dimensions 30 × 26 × 20 cm

Technical Specifications

Working voltage
12v
Pitch/Tilt
±90°
Output
Micro HDMI(HD 1080P 60fps)
Roll
±85°
Local storage
SD card up to 128G
Yaw/Pan
±170°
Power consumption
≤6.6w
Warranty
1 years
Item Name
Starlight gimbals camera
Image sensor
1/1.9″CMOS
Control method
PWM/TTL/S.BUS
MOQ
1 Piece
Model Number
Viewpro Z36T
N.W.
945G
Input voltage
4S~6S
Package meas
360*300*250mm
