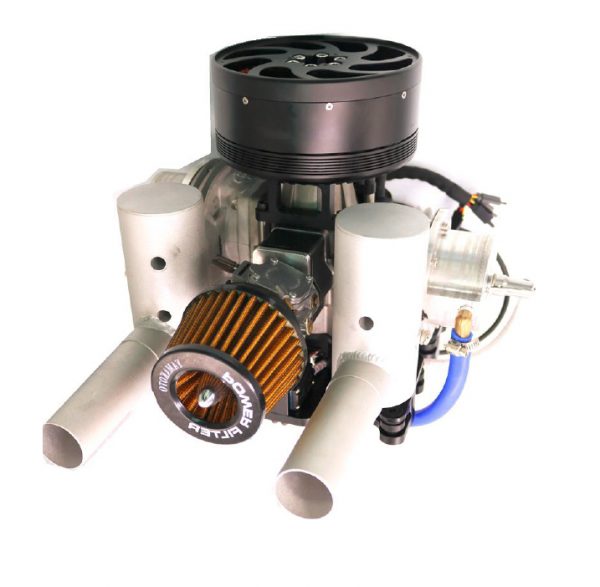

Hybrid generator FL7000 Power System for aerial photography planting and mapping UAV long flight time drone

Hybrid generator FL7000 is a high efficiency generator designed for multicopters. FL7000 generator is  12kg , which is much lighter than any other generators that produce MAX 7000w output power , so FL7000 generator is five times the efficiency of other generators. The continuous power output of generator is 6000w. An internal combustion engine consumes gasoline and spins a generator to ensure a 51.8V output. Besides this, a 14S lipo battery package is also needed to be installed on board to offer emergency back-up power for quick climbing and quick maneuvering. With this generator, the max take-off weight can reach 48kg(according to your power system), and the max flight time is about 2 hours.   As for the fuel, the auto gasoline is available. When the generator running, its noise level is about 80 dBA. But the noise has no effect if you talk 10 meters away from the drone. We also provide the silencer if you need which could reduce the noise to 60 dBA.
Also maintenance is necessary for FL7000 to keep its high performance. The maintenance cycle is 50 hours. And we will also provide the accessories for generator maintenance.

specification

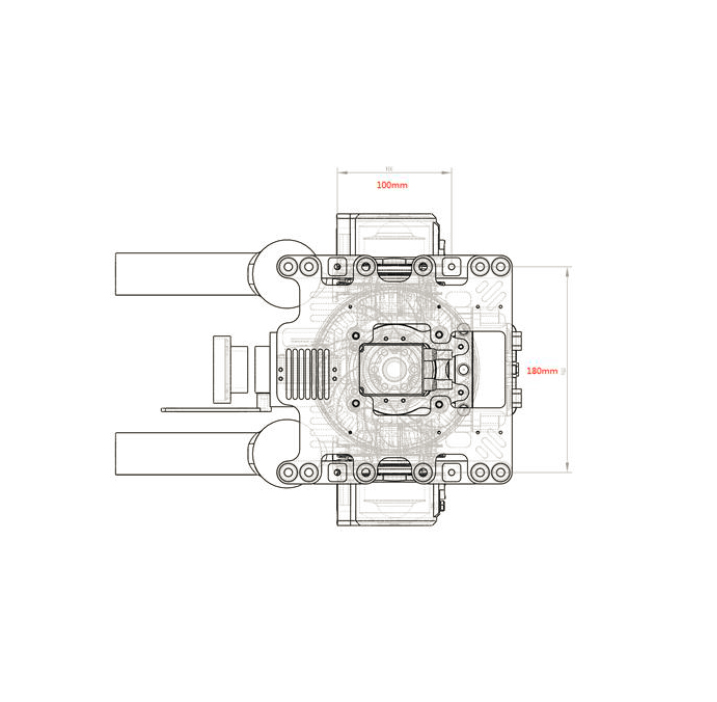

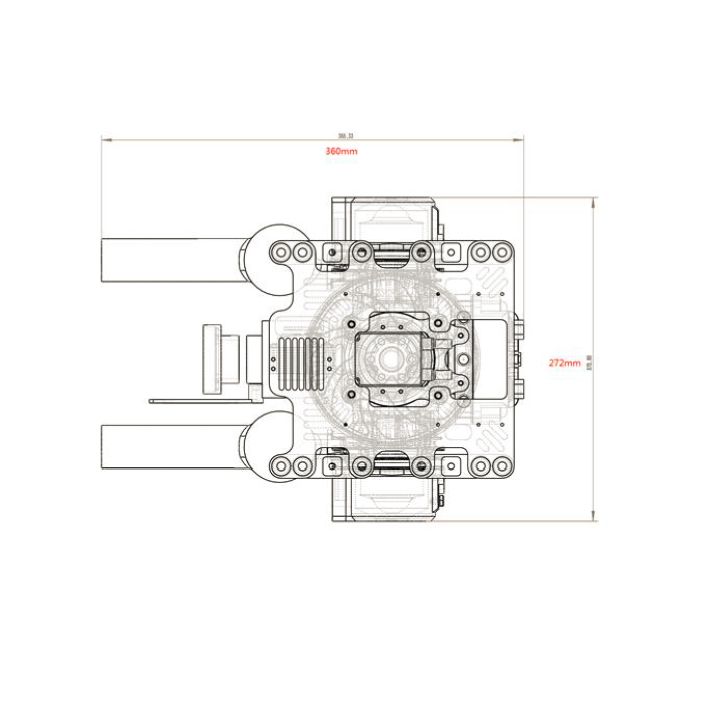

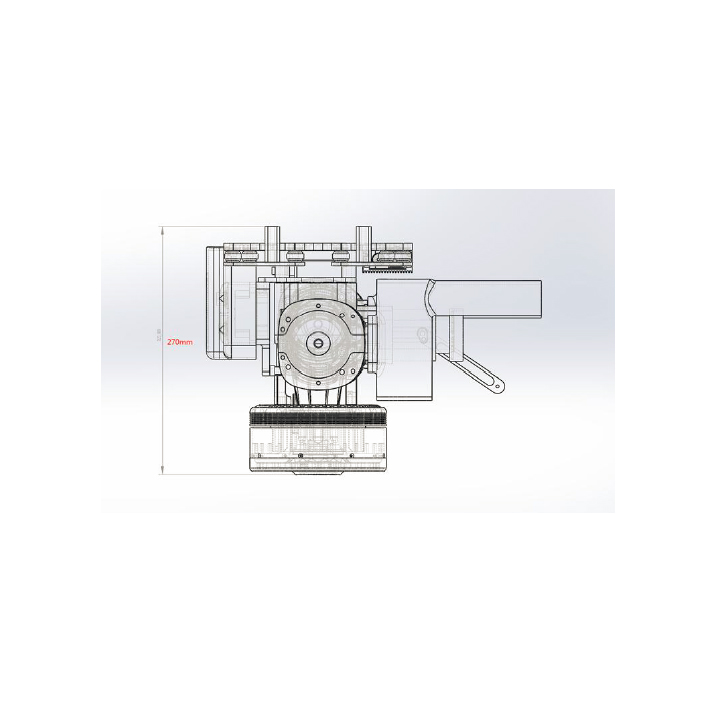

Size: 270*360*272mm (LxWxH)
Rated voltage :MIX 51.8V MAX 58.5V 14S
Continues power: 6000W
Weight: 12 kg
Fuel consumption : 9.5L/H
Fuel ratio: 25:1 (95# gasoline, FD grade 2T oil)
Working temperature: -20~45 degrees Celsius
Startup mode: one-button self-starting

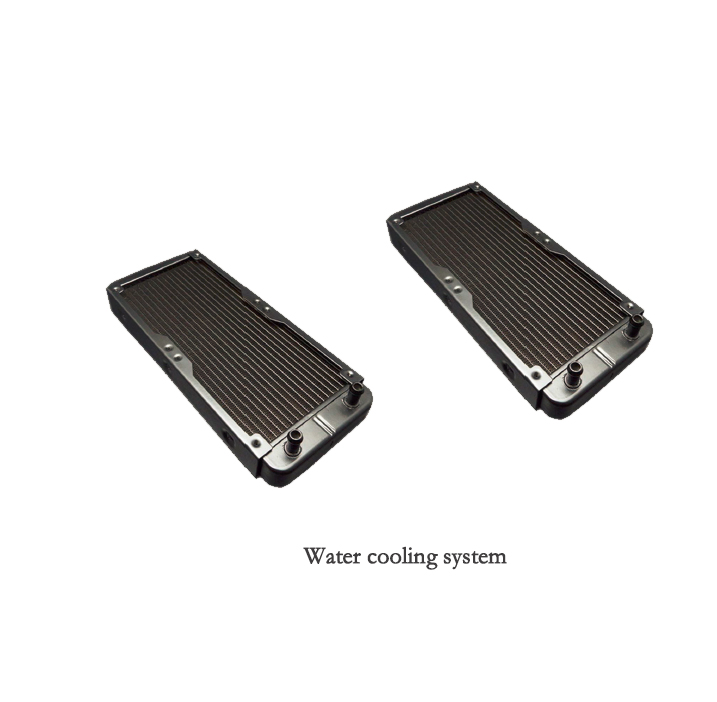

Cooling method: water cooling

FL7000 advantages:
1: Intelligent cooling system: It can reduce heat consumption according to the high and low temperature of the engine cylinder.
2: LED intelligent display, real-time accurate display of speed, voltage, cylinder temperature and system status.
3: One-piece patented industrial design, dustproof and waterproof, easy to maintain.

Features
The integrated power generation design is started, and the air start function can be realized without relying on external starting equipment.
The one-piece design makes it easy to hang in all types of racks.
No need to charge preparation time, no complicated ignition action, can quickly perform tasks.
In a cold environment of -20 degrees Celsius, it can work stably.
The backup battery can provide power for emergency short-range return or forced landing in an emergency.
For light-load business, additional fuel tanks can be added and the range can be increased to 1.5-3 hours.
Quick and easy engine installation for quick and easy engine replacement and maintenance.



MAINTENANCE CHART



Items



Action

Before Use Every 25 hours Every 100 hours

Note

Leakage,

Damage/Crack

Check

Idling Speed Check/Adjust
Air-cleaner Check/Cleaning Replace if necessary
Spark Plug(gap) Check/Adjust ­
Cylinder(barrel) Check/Cleaning ­
Piston, Ring Check/Cleaning ­
Bolt Check/Cleaning ­
Bearings Check/Cleaning ­



Weight 10 kg
Dimensions 50 × 40 × 30 cm
