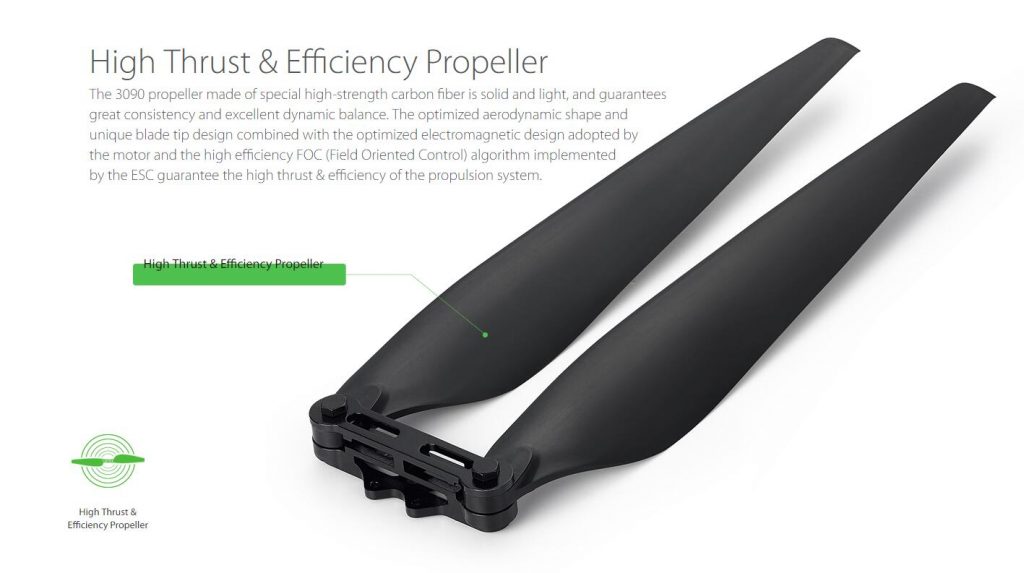

Hobbywing X8 FOC Integrated Power Propulsion System 3090 CW CCW Propeller for 30/35/40mm Carbon Tube Payload Agricultural Drones


$198.00

Clear

Hobbywing X8 FOC Integrated Power Propulsion System 3090 CW CCW Propeller for 30/35/40mm Carbon Tube Payload Agricultural Drones

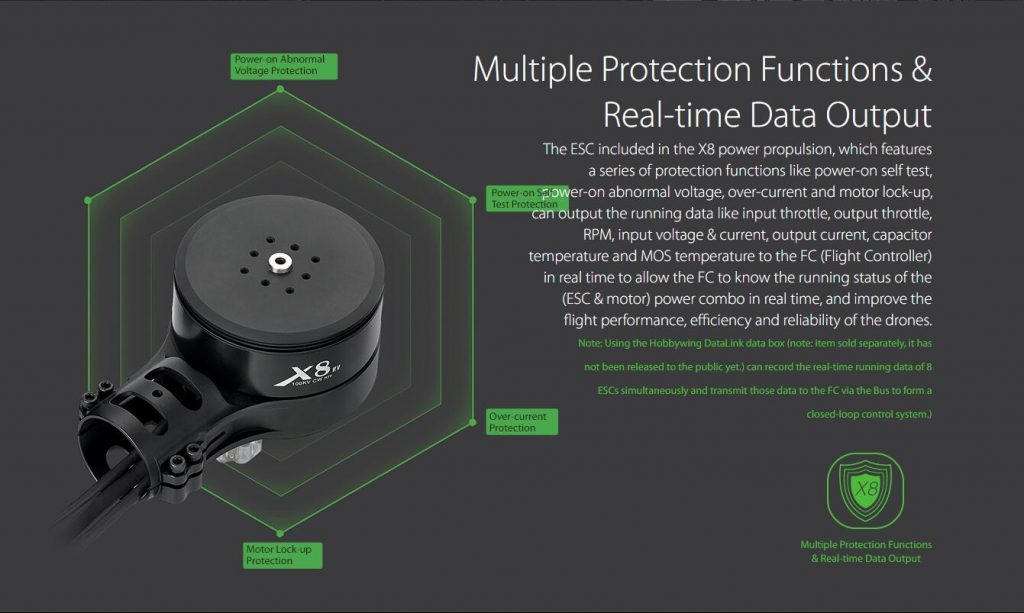

Hobbywing X8 brushless power system is a power system capable of carrying a load of 5~7kg (per rotor) for agricultural drones. It can provide the thrust of up to 15.3kg and match 30/35mm carbon fiber tube arms. It’s waterproof an dustproof to IPX7 standard and resistant to rainwater, pesticides, salt spray, sand, dust, mud, sandy soil, high temperature and impact. It also features the algorithm used for optimizing the FOC ESC & Motor system and making the system more balanced, multiple protections like power-on self detection, power-on abnormal voltage, over-current and motor lock-up, and the real-time data output function.

• The whole power system has been assembled before leaving the factory, it’s ready-to-use and you can directly mount it on your agricultural drone as per the rotation direction (CW/CCW) marked on the motor.
• The bore diameter (of the arm) is 35mm, if you want to use the 30mm tube, then tube adapter will be needed.
• The (Black/Red/White) tri-color cable is for outputting data & updating ESC firmware, the (White/Black) bi-color cable is the throttle signal cable, and the yellow wire is the RPM signal output wire.
• The data signal wire is for outputting throttle input, throttle output, motor RPM, input current, output current, input voltage, capacitor temperature, MOS temperature, and etc.
• The throttle range of the ESC is fixed at 1100~1940µs.

Hobbywing X8Hobbywing X8Hobbywing X8Hobbywing X8



SKU: 5487FB8/10-101 Categories: ,
Weight 3 kg
Dimensions 35 × 35 × 20 cm
