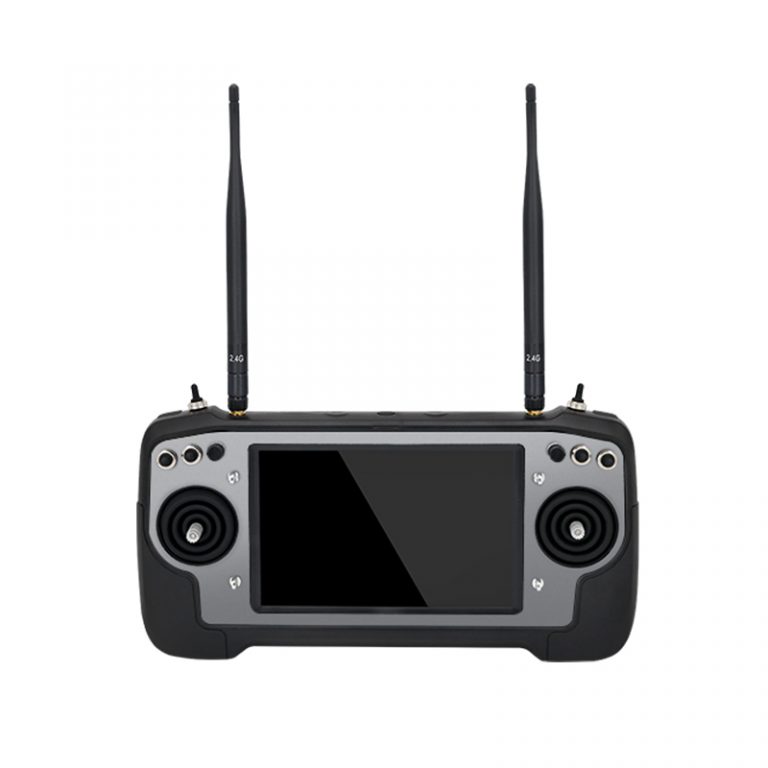

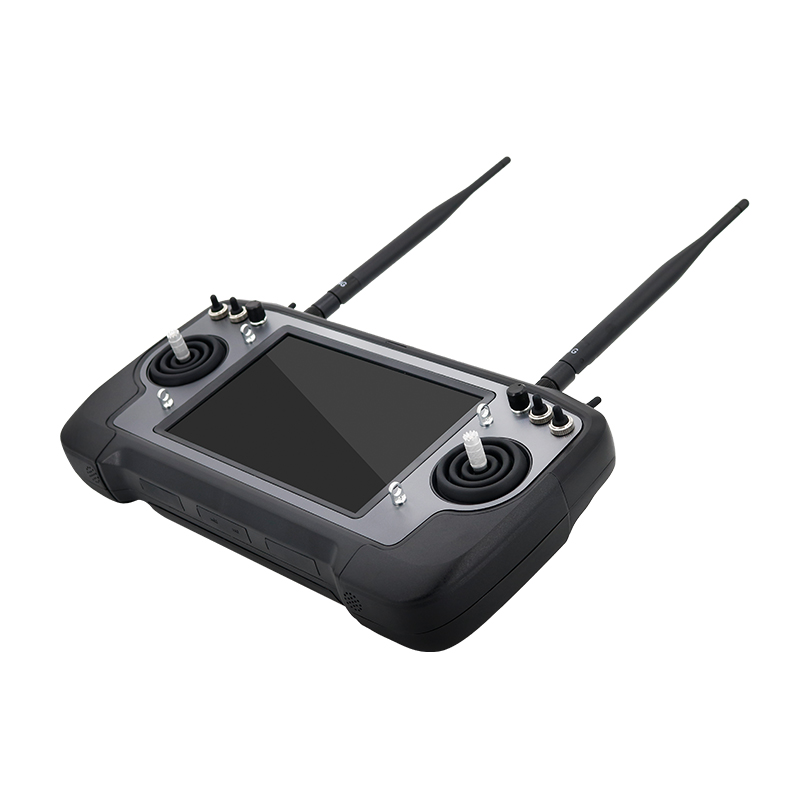

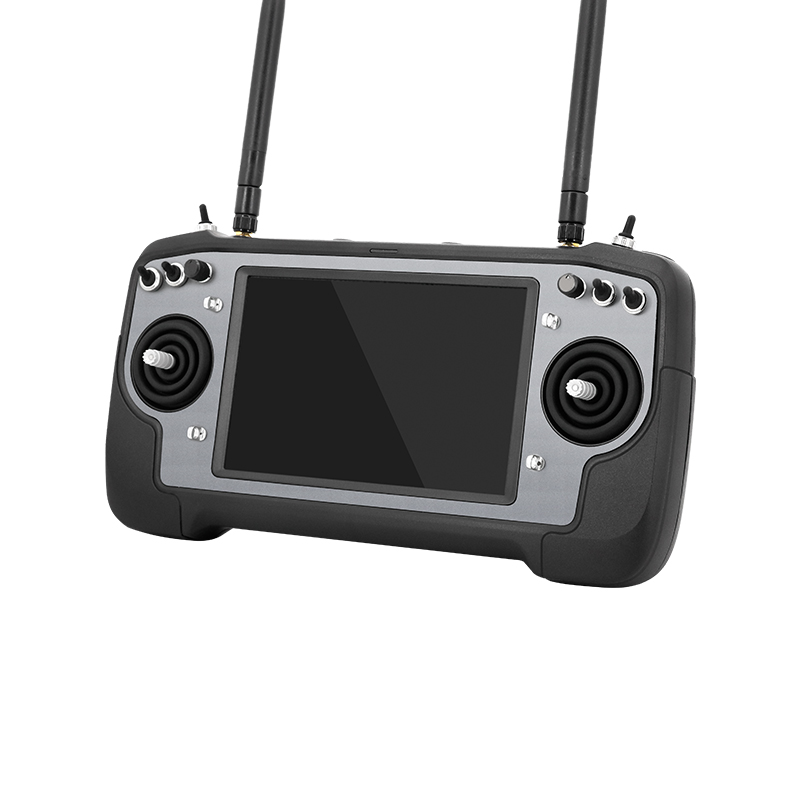

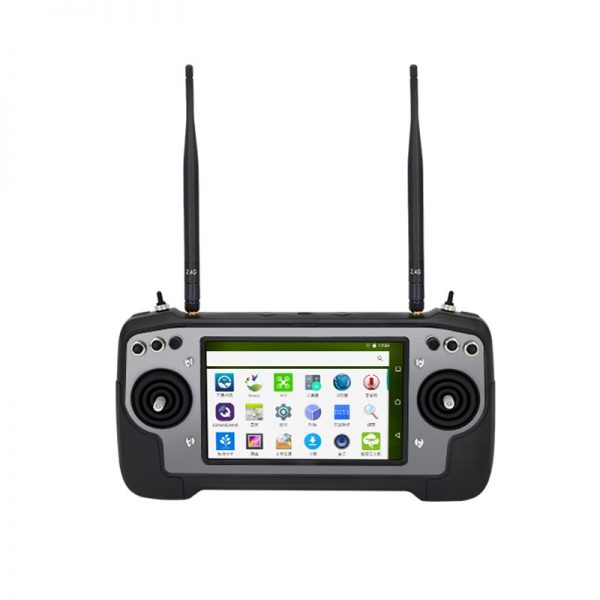

smart remote controller with screen for agriculture spraying drone

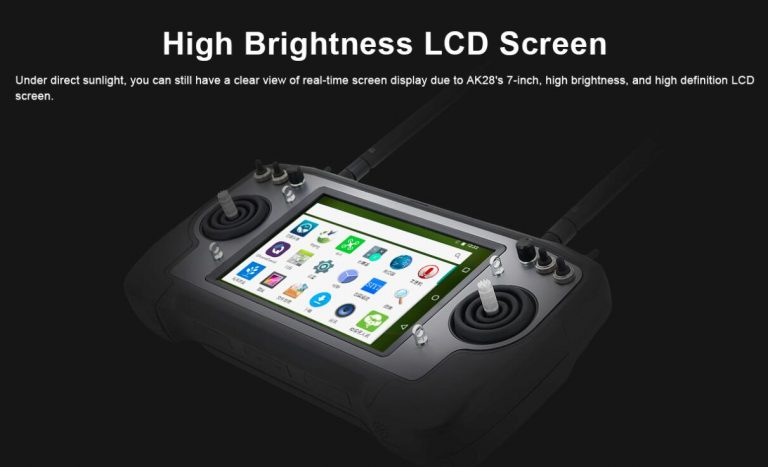

smart remote controller  is designed to maximize your outdoor flying experience with the spraying drone or other aircraft equipped with 7 inch built-in screen displays clear, bright images, even under challenging conditions. Intuitive controls and pre-installed features  app get you up in the air quicker, clearer, and more conveniently than ever before. With iUAV OS, a customized drone operating system powered by Android. AK28 is born to promote UAV application to an easier and more efficient, and more stable level. The new controller integrated with long distance datalink and video link comes with an HD FPV camera. It is designed with waterproof and dustproof ability on the industrial level for drone operation in extreme circumstance.
Through digital video transmission, smart remote controller AK28 receive the real time FPV and has a capability to deal with the information in the screen display using its powerful operation system. Which finally help pilots control and understand their drone in a good way. It makes itself a perfect combination of UAV remote control and communicating technology on both hardware and software. Moreover, it providing an opening SDK to global users. We believe that AK28’s potential infinite as their ideas are accomplished on the exciting platform.

PERFORMANCE

Transmission Range 2 km (effective operation range, ground to ground)
Frequency Band 2.400-2.483 GHz
Channels 14 physical channels, 14 output channels
Applicable Models Planes/Helicopters/Gliders/Quadcopters/Multi-rotors/Vehicles/Boat/Robotics
Compatible Flight Controllers Open Source Flight Controllers: PIX, APM, etc.
BOYING PALADIN V2
TOPXGUN T1-A
WOOZOOM THEONE-A – A
EFY FINIX200M
JIYI K3A K++
CFUAS C1-A

FPV CAMERA & NAVIGATION LIGHT

Camera Angle FOV 120°
Dimension (Videolink Module) 106*25*41 mm
Item Weight 108 g
Power Consumption (Navigation Light) 8 W
Luminous Flux 120-140lm/W
LED Type Translucent
LED Searching Angle 120°
Operation Temperature -10℃ to 55℃

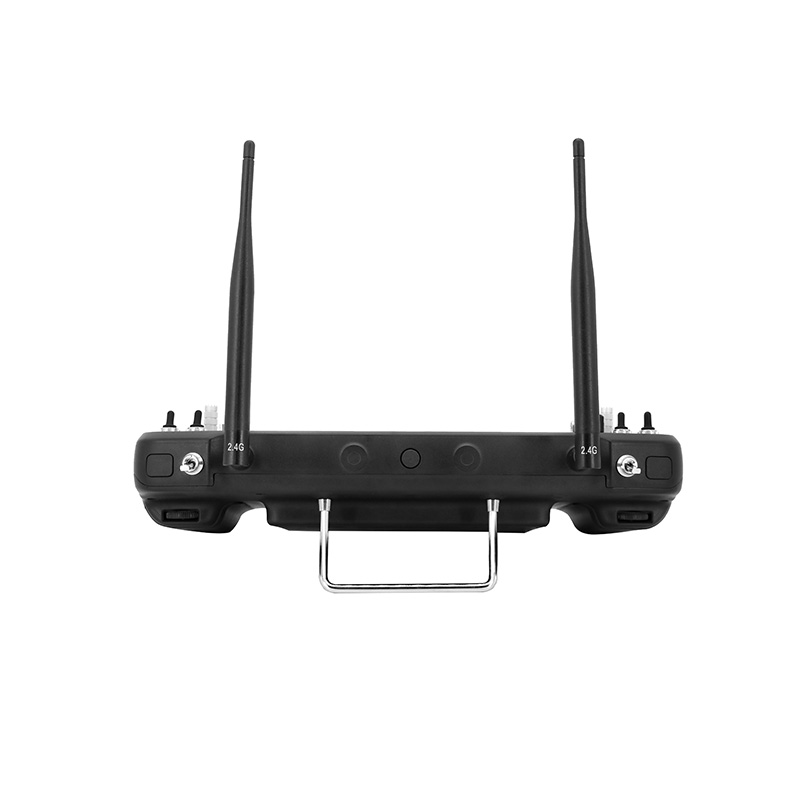

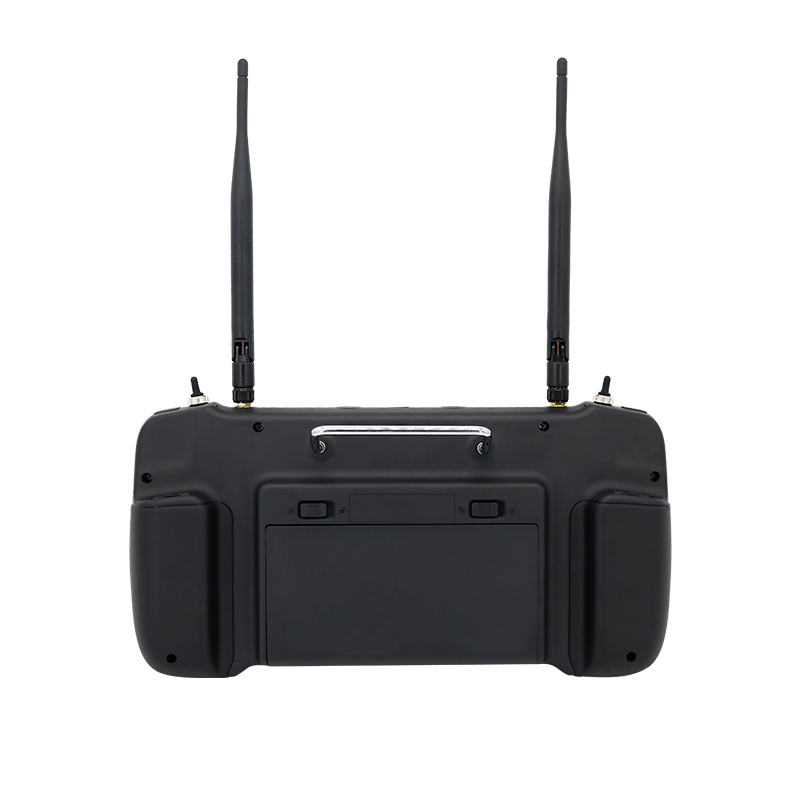

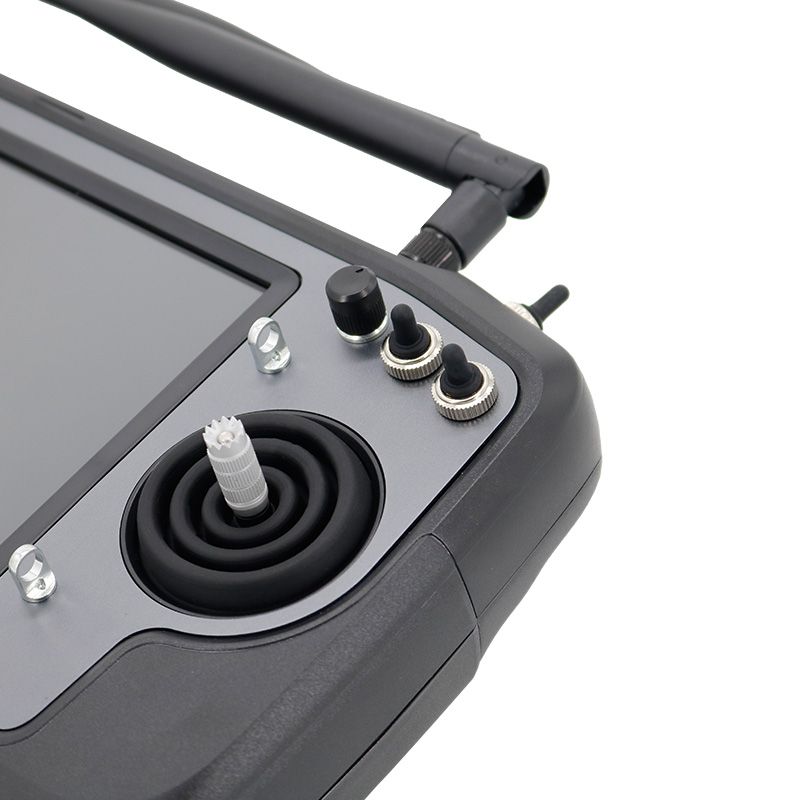

GROUND STATION (TRANSMITTER)

Device for Display 7″, Android OS, 2G RAM + 16G ROM
Dimensions 308 x 148 x 72 mm
Item Weight 1100 g
Battery Type 13000 mAh LiPo 1S 3.7V
Battery Working Temperature 0℃ ~ 55℃
Charging Micro-USB 5V/2A
Working Time >9 hrs

SKY STATION (RECEIVER)

Signal Output 14 Channels of S.BUS, 5 channels of PWM
Datalink Port (to FC) UART, CAN (optional)
Dimensions (without antennas) 59 x 59 x 16 mm
Item Weight (without antennas) 50 g
Antenna Gain 5 dBi
Working Voltage 15 – 50 V
Telemetry Voltage 15 – 50 V
Operating Temperature -10℃ ~ 55℃



Manual download  in PDF format



smart remote controller smart remote controller

Weight 3 kg
Dimensions 35 × 30 × 20 cm

PERFORMANCE

Transmission Range 2 km (effective operation range, ground to ground)
Frequency Band 2.400-2.483 GHz
Channels 14 physical channels, 14 output channels
Applicable Models Planes/Helicopters/Gliders/Quadcopters/Multi-rotors/Vehicles/Boat/Robotics
Compatible Flight Controllers Open Source Flight Controllers: PIX, APM, etc.
BOYING PALADIN V2
TOPXGUN T1-A
WOOZOOM THEONE-A – A
EFY FINIX200M
JIYI K3A K++
CFUAS C1-A

FPV CAMERA & NAVIGATION LIGHT

Camera Angle FOV 120°
Dimension (Videolink Module) 106*25*41 mm
Item Weight 108 g
Power Consumption (Navigation Light) 8 W
Luminous Flux 120-140lm/W
LED Type Translucent
LED Searching Angle 120°
Operation Temperature -10℃ to 55℃

GROUND STATION (TRANSMITTER)

Device for Display 7″, Android OS, 2G RAM + 16G ROM
Dimensions 308 x 148 x 72 mm
Item Weight 1100 g
Battery Type 13000 mAh LiPo 1S 3.7V
Battery Working Temperature 0℃ ~ 55℃
Charging Micro-USB 5V/2A
Working Time >9 hrs

SKY STATION (RECEIVER)

Signal Output 14 Channels of S.BUS, 5 channels of PWM
Datalink Port (to FC) UART, CAN (optional)
Dimensions (without antennas) 59 x 59 x 16 mm
Item Weight (without antennas) 50 g
Antenna Gain 5 dBi
Working Voltage 15 – 50 V
Telemetry Voltage 15 – 50 V
Operating Temperature -10℃ ~ 55℃
