drone frame kit fold-able for industrial customize
drone frame kit fold-able for customize Industrial Drone frame with rotor, 1-5KGS payload for camera and other equipment.
Flight platform for customize industrial Specially designed for industry applications. with modular design concept, the main components can be quickly disassembled and assembled, flexible and multi-purpose, convenient for customized demand expansion, and the whole frame adopts dumb black coating, which shows processional stability.

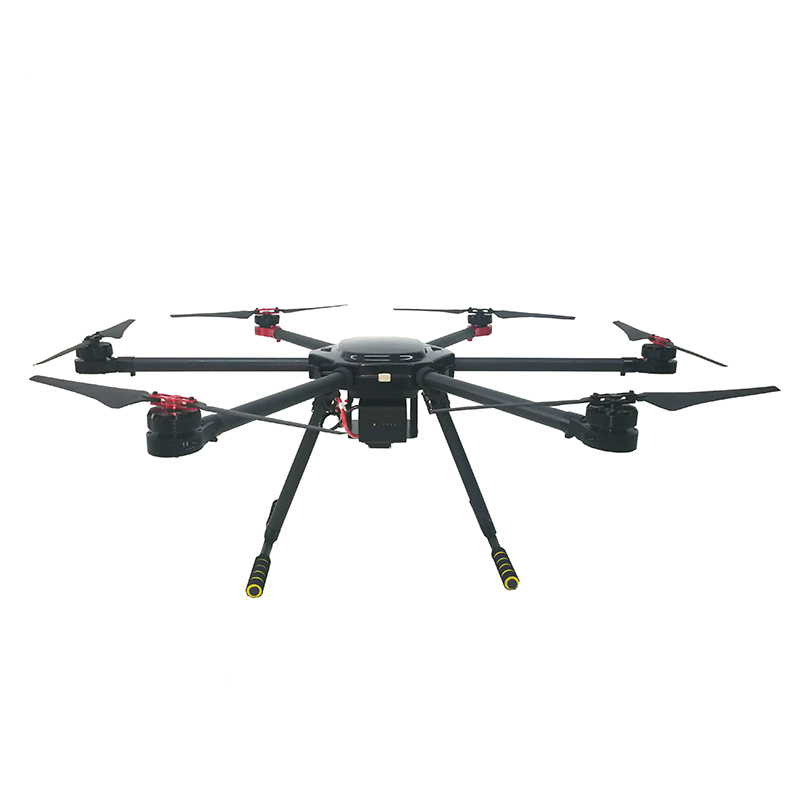

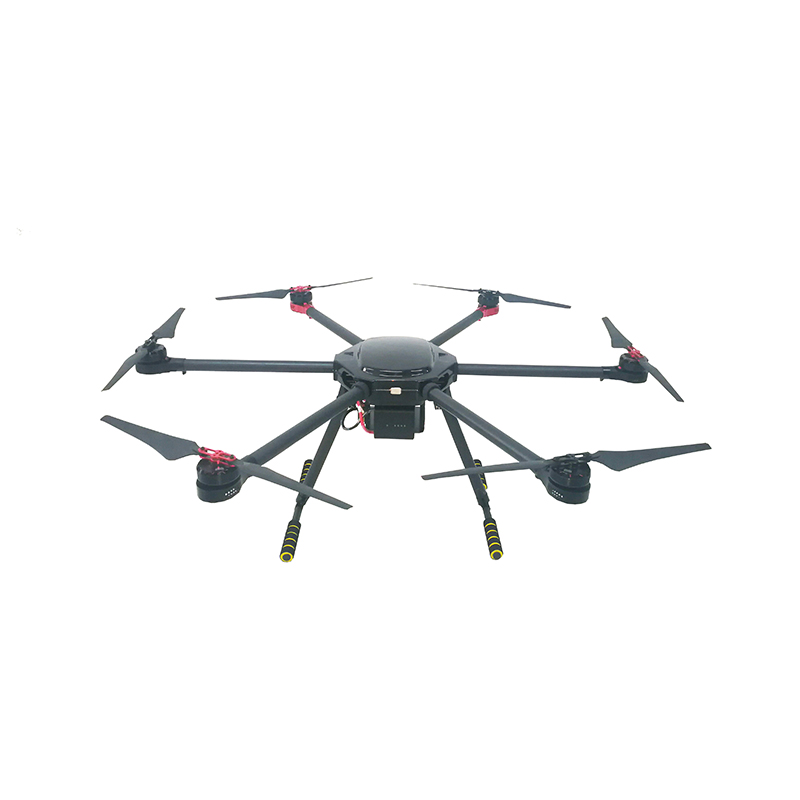

Foldable 3K Carbon Fiber Six rotor Drone Frame
drone frame kit fold-able 3K carbon fiber cloth woven carbon fiber board with 3K hollow twill pure carbon fiber carbon fiber tube (non-3K glassy carbon tube) CNC machining, design standards higher than similar products, the full set with rotor is only 3420 grams. Full folding design, installation designed for users with high portability requirements, the user can flexibly according to the weight of the loaded photographic equipment adjust the center of gravity. 1 KGS payload. Particularly suited to do surveillance, remote sensing, mapping, aerial reconnaissance, fire observed explore life cable line patrol, farm monitoring, and other the mobile performance requirements equipment. You may need other for your other options and comparison.
*Japanese 3K carbon, CNC cutting
*Design standard is higher than most similar products of this range.
*Folding design, meet the needs of customers who *have high demand on portability.
*Bottom mounting gimbal design (gimbal not included), and position adjustable.
*Battery mounting position also adjustable, so you can adjust the whole system gravity easily.
*About 50% pre-assembled.
Suggested setting (not included in the package):
5008 335KV motor + 40A ESC + 6S 16000mAh Li-Po battery + 17 inch propellers
1 pcs Foldable Drone Frame (not included others)
Wheelbase: 960MM Height: 400MM

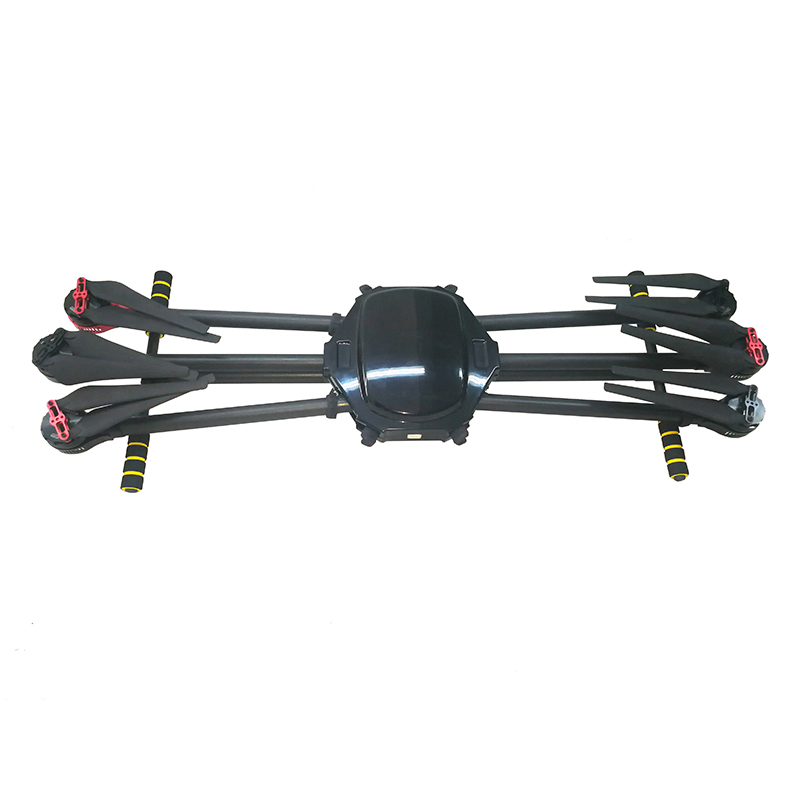

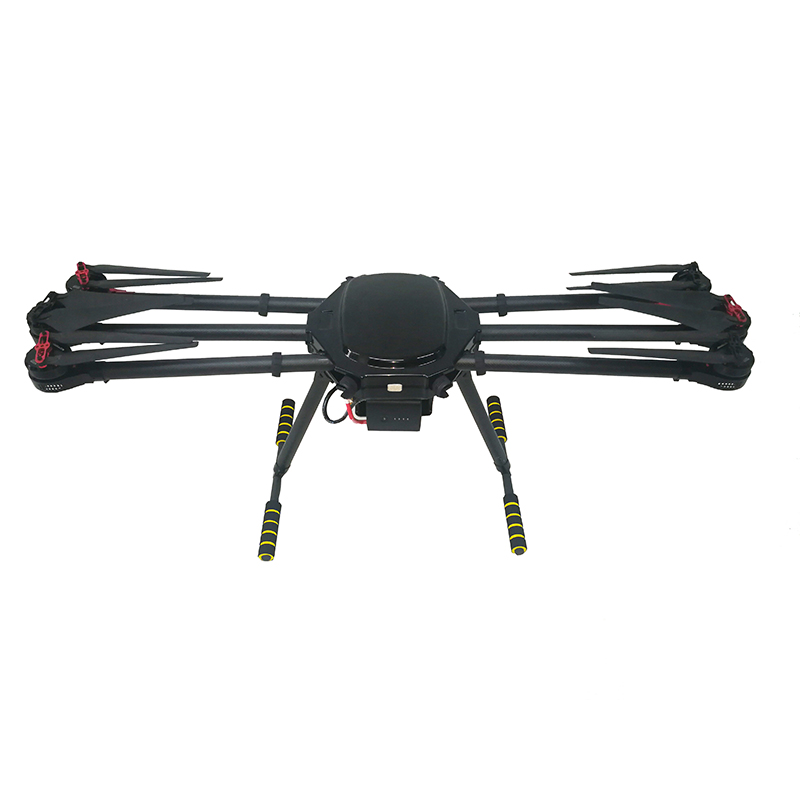

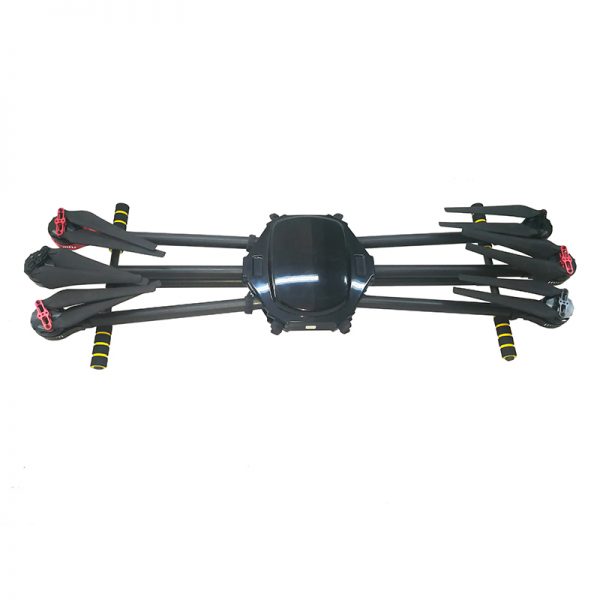

Unfold size: 960*960*400MM fold size: 960*260*400MM
Frame + motor Weight: 3.42KG
Supply voltage: 6S
Maximum takeoff weight: 5.44KG
Effective load: 1-2.5KGS
Motor: 5008 335KV
Propeller: 1760(17 inch) foldable nylon propeller
Battery: 16000 mAh 22.2V weight: 2020g
Endurance: 30 minutes(without payload), 22 minuts (with payload)
Note: The price is just the KIT, not include any electronic. and it is packing in carton box, if you need aluminum box, need add cost independent.
