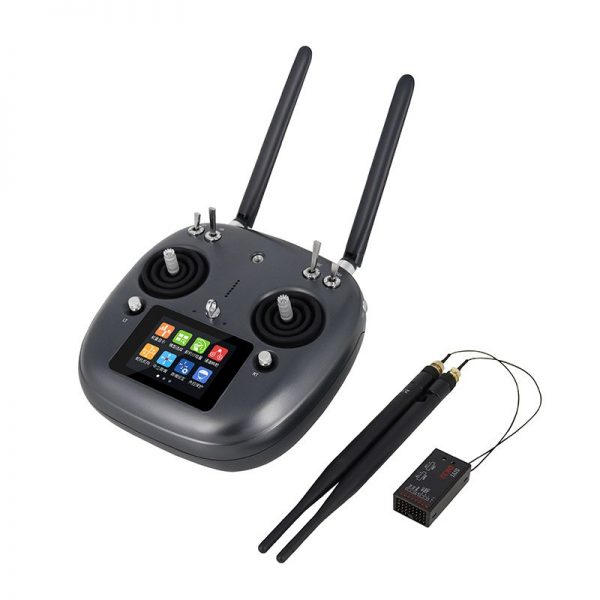

drone controller SIYI DK32 2.4G 16CH Transmitter Remote Controller Transimitter Receiver integrated 10KM DATALINK for DIY Agricultural drones

drone controller is an electronic device that uses radio signals to transmit commands wirelessly via a set radio frequency over to the Radio Receiver, which is connected to an aircraft or multirotor being remotely controlled. In other words, it’s the device that translates pilot’s commands into movement of the multirotor.

In some radios there is an option to connect an external transmitter module. This  makes it possible to use a different frequency (for instance, 900MHz in a 2.4GHz radio) or a different receiver from another brand/protocol (Crossfire CRSF module with Crossfire V2 Micro Receiver in FrSky Taranis).



Specifications:

Features

1, in an open environment, DK32 data transmission distance can reach 10KM, can perfectly meet the requirements of users over-the-horizon flight.
2, The transmitter of DK32 remote control supports USB connection PC, USB and Bluetooth connection smartphone and Pad. (Bluetooth is optional, standard configuration does not include)
3, The receiver of DK32 remote control supports UART, CAN connection flight control. (CAN is optional, standard configuration is not included)
4, using the newly developed two-way 2.4G spread spectrum technology SHTT, the effective maximum operating distance can reach 10KM (the distance is measured without interference in the outdoor open environment), the remote control and receiver unique code pairing, plus Fast frequency hopping technology to improve anti-interference ability, prevent interference with other remote controllers, support multiple remote controllers and work stably at the same time
5, full-featured 16-CH high-speed response mode, supports all models of fixed-wing, helicopter, glider, multirotor, RC car, RC ship.
6, vibration prompts, Chinese and English menus and voice broadcasts.
7, wide viewing angle highlights the color LCD touch screen to ensure that the outdoor flight is clearly visible. It adopts a mobile terminal-level capacitive touch screen and has a turntable button to assist operation, making the adjustment quicker and more convenient. The remote control interface is the latest development of a customized new GUI system that provides a more user-friendly user experience for display and touch input.
8, powerful features to meet a variety of complex modules or robot models
The default 64 sets of model data are stored and can be expanded indefinitely.
Powerful programmable mixing, support for a variety of custom common mixing and curve mixing settings.
Adjustable ratio function, throttle curve, pitch curve editing, complex curve adjustment is easy
Through the data copy function, it is convenient for the model friend to exchange model settings and share convenience.
Coach function, veteran with novice, comes with various protection functions, the trainer switches control
Channel mapping, out of control protection

9, PC tuning upgrade software, used for tuning and upgrade functions, better than the LCD tuning experience, enjoy continuous feature upgrade services.

Technical Parameters:

Overall performance
Maximum communication distance (no interference, no blocking): 15 km
Operating frequency: 2.400-2.483 GHz
Number of channels: 26 physical channels, 16 receiver output channels
Support models: plant protection machine / multi-rotor / fixed wing / glider / helicopter
Flight control supported by digital transmission:
  TopXgun T1-A
  Woozoom THEONE – A
  EFY Finix200
  JIYI K3A
  BOYING PALADIN V2
  QIAO Matrix
  Cfuas C1-A
  Open source flight control PIX, APM
  DJI N3, A3 (requires buyer to match DJI expansion module support)
Ground terminal (remote carontrol transmitter)
Language display Chinese/English
Connect mobile phone, tablet interface A-USB, Micro USB, Bluetooth, WIFI (optional)
Dimensions 194.5 x 172.5 x 114mm
Weight 610g
Battery ambient temperature 0°C ~55°C
Battery 4000 mAh Lithium Rechargeable Battery 1S
Charging Micro USB 5V 2A
Sky terminal (remote control receiver integrated DATALINK)
Signal output 16-channel S.Bus, 9-channel PPM, 9-channel PWM
Connect flight control interface UART, CAN (optional)
Dimensions (without antenna) 49 x 26 x 14mm
Weight (without antenna) 22g
Antenna gain 5dBi
Working voltage 5 V-8.4V
Working environment temperature -10 ° C to 55 ° C
​Package list:
Original SIYI DK32 2.4G 16-CH integradted datalink remote control * 1 set

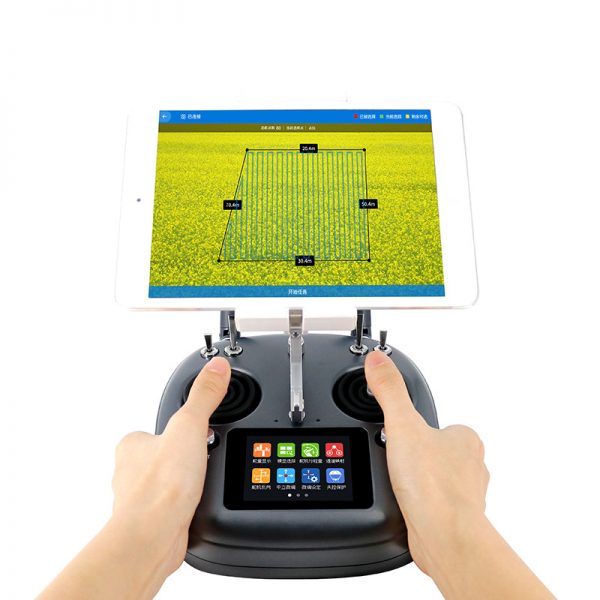

Smartphone/Pad bracket * 1 piece
12345
DK32DK32 02DK32 01DK32 03
Weight 2 kg
Dimensions 20 × 18 × 12 cm
Maximum communication distance (no interference, no blocking): 15 km
Operating frequency: 2.400-2.483 GHz
Number of channels: 26 physical channels, 16 receiver output channels
Support models: plant protection machine / multi-rotor / fixed wing / glider / helicopter
Flight control supported by digital transmission:
  TopXgun T1-A
  Woozoom THEONE – A
  EFY Finix200
  JIYI K3A
  BOYING PALADIN V2
  QIAO Matrix
  Cfuas C1-A
  Open source flight control PIX, APM
  DJI N3, A3 (requires buyer to match DJI expansion module support)
Ground terminal (remote carontrol transmitter)
Language display Chinese/English
Connect mobile phone, tablet interface A-USB, Micro USB, Bluetooth, WIFI (optional)
Dimensions 194.5 x 172.5 x 114mm
Weight 610g
Battery ambient temperature 0°C ~55°C
Battery 4000 mAh Lithium Rechargeable Battery 1S
Charging Micro USB 5V 2A
Sky terminal (remote control receiver integrated DATALINK)
Signal output 16-channel S.Bus, 9-channel PPM, 9-channel PWM
Connect flight control interface UART, CAN (optional)
Dimensions (without antenna) 49 x 26 x 14mm
Weight (without antenna) 22g
Antenna gain 5dBi
Working voltage 5 V-8.4V
Working environment temperature -10 ° C to 55 ° C
