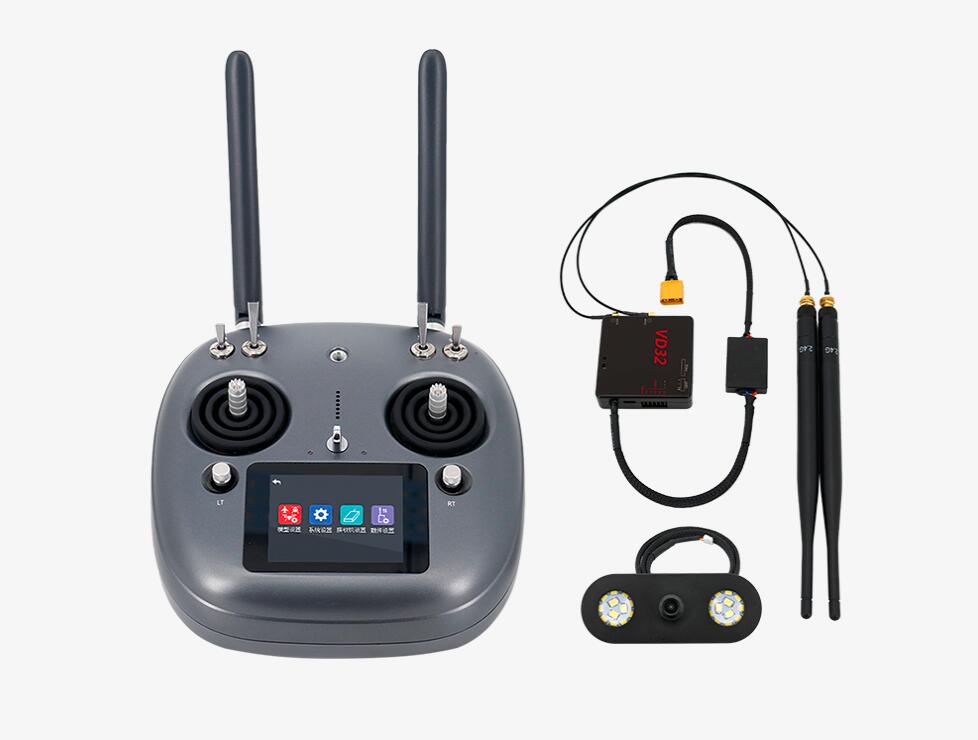

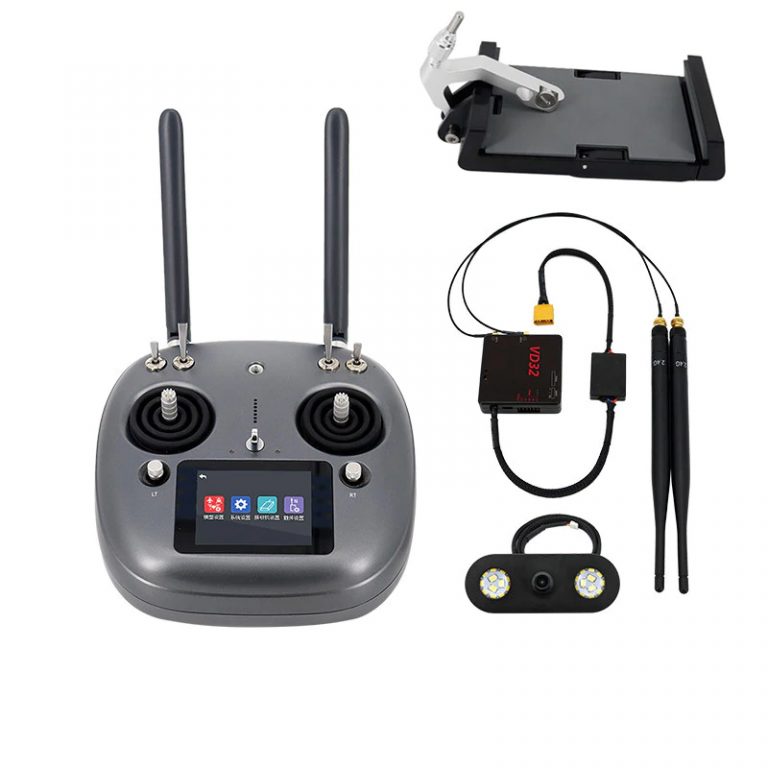

radio link data link and video link remote controller VD32 for UAV

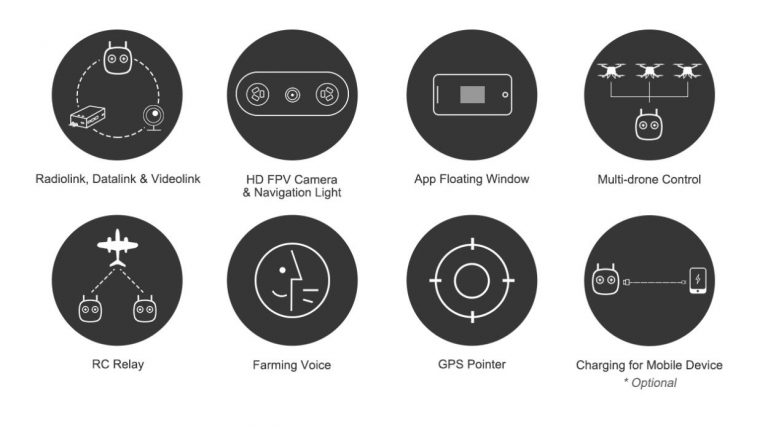

radio link VD32 is a 3-in-1 UAV intelligent data link system integrating the latest high-definition digital VTX, long-distance remote control and DATALINK. It integrates one control multi-drone, remote control relay, ESC calibration, voice broadcast, one-button configuration parameters. Such as improving work efficiency, reducing the practical functions of complex setup steps, adjusting parameters, and using is simpler. Support night agricultural plant protection operations One-click configuration In the past, for different flight control, the user must set the remote control parameters by themselves, the latest one-click configuration function, only need to select the corresponding flight control model, you can unlock the takeoff (currently supports JIYI, TopXgun, BOYING, PIX, APM, EFY, Woozoom)

PERFORMANCE

Transmission Range 2 km (effective operation range with videolink)
Frequency Band 2.400-2.483 GHz
Channels 26 physical channels, 16 transmitting channels
Applicable Models Planes/Helicopters/Gliders/Quadcopters/Multi-rotors/Vehicles/Boat/Robotics
Compatible Flight Controllers TOPXGUN T1-A
WOOZOOM THEONE-A – A
EFY FINIX200M
JIYI K3-A
BOYING PALADIN V2
CHIAO MATRIX
CFUAS C1-A
PIX
APM

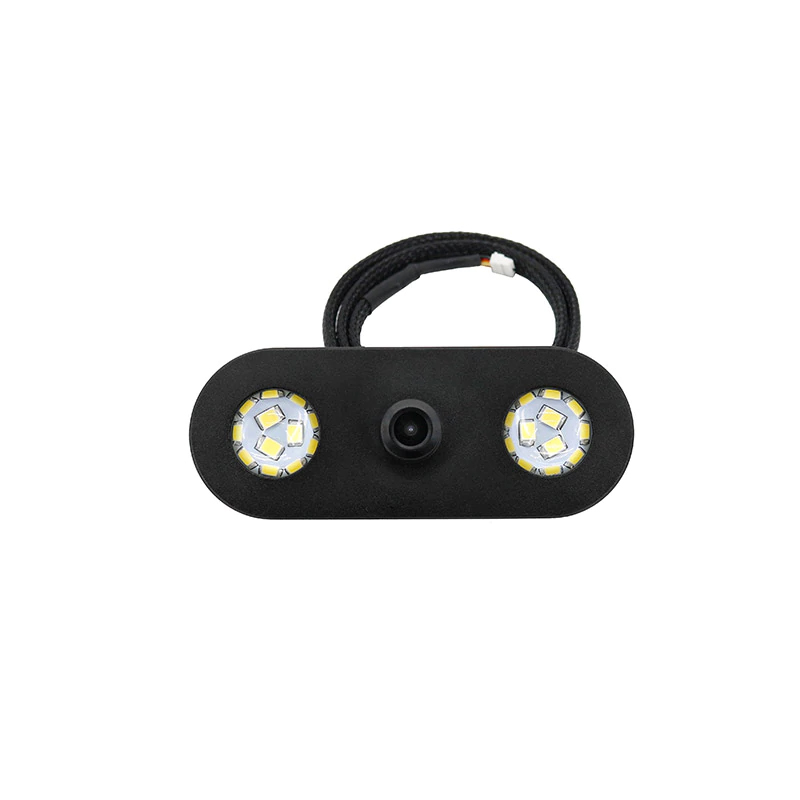

FPV CAMERA & NAVIGATION LIGHT

Video Resolution Max: [email protected]
Camera Angle FOV 120°
Dimension (Videolink Module) 106*25*41 mm
Item Weight 108 g
Power Consumption (Navigation Light) 8 W
Luminous Flux 120-140lm/W
LED Type Translucent
LED Searching Angle 120°
Operation Temperature -10℃ to 55℃

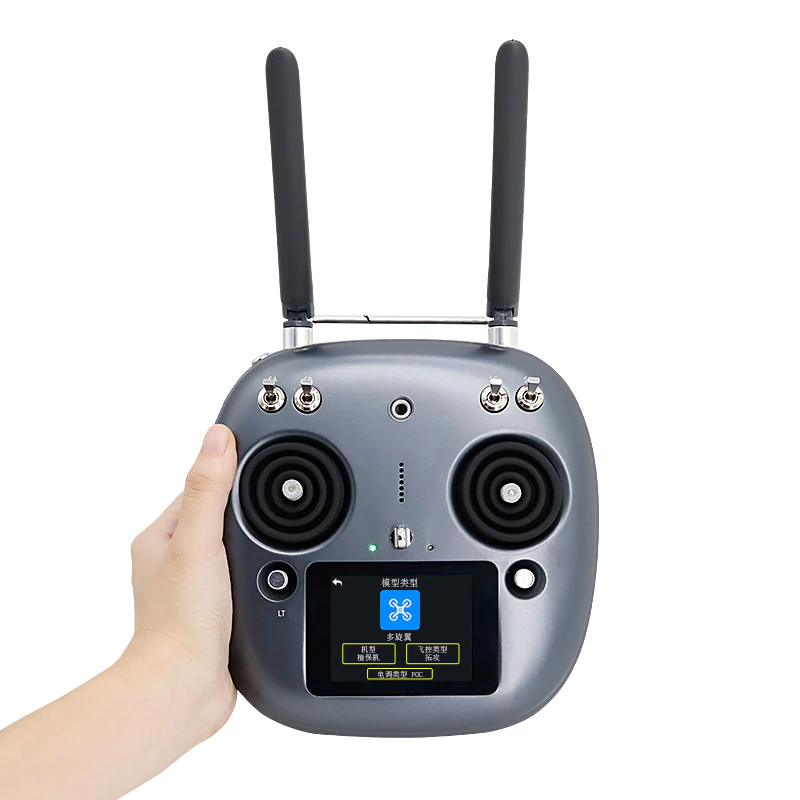

GROUND STATION (TRANSMITTER)

Videolink Output Port USB
Datalink Output Port USB, Bluetooth, WIFI(optional)
Touchscreen Language Display Chinese/English
Dimensions 194.5 x 172.5 x 114 mm
Item Weight 610 g
Operating Temperature 0℃ ~ 55℃
Battery Built-in 8000 mAh Li-Po 1S 3.7V
Charging Port Micro-USB (5V/2A)

SKY STATION (RECEIVER)

Signal Output 16 channels of S-Bus, 5 channels of PWM
Ports for Flight Controllers UART, CAN(optional)
Dimensions (without antennas) 59 x 59 x 16 mm
Weight (without antennas) 50 g
Antenna Gain 5 dBi
Working Voltage 15 – 50 V
Telemetry Voltage 15 – 50 V
Operating Temperature -10℃ ~ 55℃

VD32_Quick_Guide_En



Weight 1.5 kg
Dimensions 35 × 30 × 25 cm

PERFORMANCE

Transmission Range 2 km (effective operation range with videolink)
Frequency Band 2.400-2.483 GHz
Channels 26 physical channels, 16 transmitting channels
Applicable Models Planes/Helicopters/Gliders/Quadcopters/Multi-rotors/Vehicles/Boat/Robotics
Compatible Flight Controllers TOPXGUN T1-A
WOOZOOM THEONE-A – A
EFY FINIX200M
JIYI K3-A
BOYING PALADIN V2
CHIAO MATRIX
CFUAS C1-A
PIX
APM

FPV CAMERA & NAVIGATION LIGHT

Video Resolution Max: [email protected]
Camera Angle FOV 120°
Dimension (Videolink Module) 106*25*41 mm
Item Weight 108 g
Power Consumption (Navigation Light) 8 W
Luminous Flux 120-140lm/W
LED Type Translucent
LED Searching Angle 120°
Operation Temperature -10℃ to 55℃

GROUND STATION (TRANSMITTER)

Videolink Output Port USB
Datalink Output Port USB, Bluetooth, WIFI(optional)
Touchscreen Language Display Chinese/English
Dimensions 194.5 x 172.5 x 114 mm
Item Weight 610 g
Operating Temperature 0℃ ~ 55℃
Battery Built-in 8000 mAh Li-Po 1S 3.7V
Charging Port Micro-USB (5V/2A)

SKY STATION (RECEIVER)

Signal Output 16 channels of S-Bus, 5 channels of PWM
Ports for Flight Controllers UART, CAN(optional)
Dimensions (without antennas) 59 x 59 x 16 mm
Weight (without antennas) 50 g
Antenna Gain 5 dBi
Working Voltage 15 – 50 V
Telemetry Voltage 15 – 50 V
Operating Temperature -10℃ ~ 55℃
