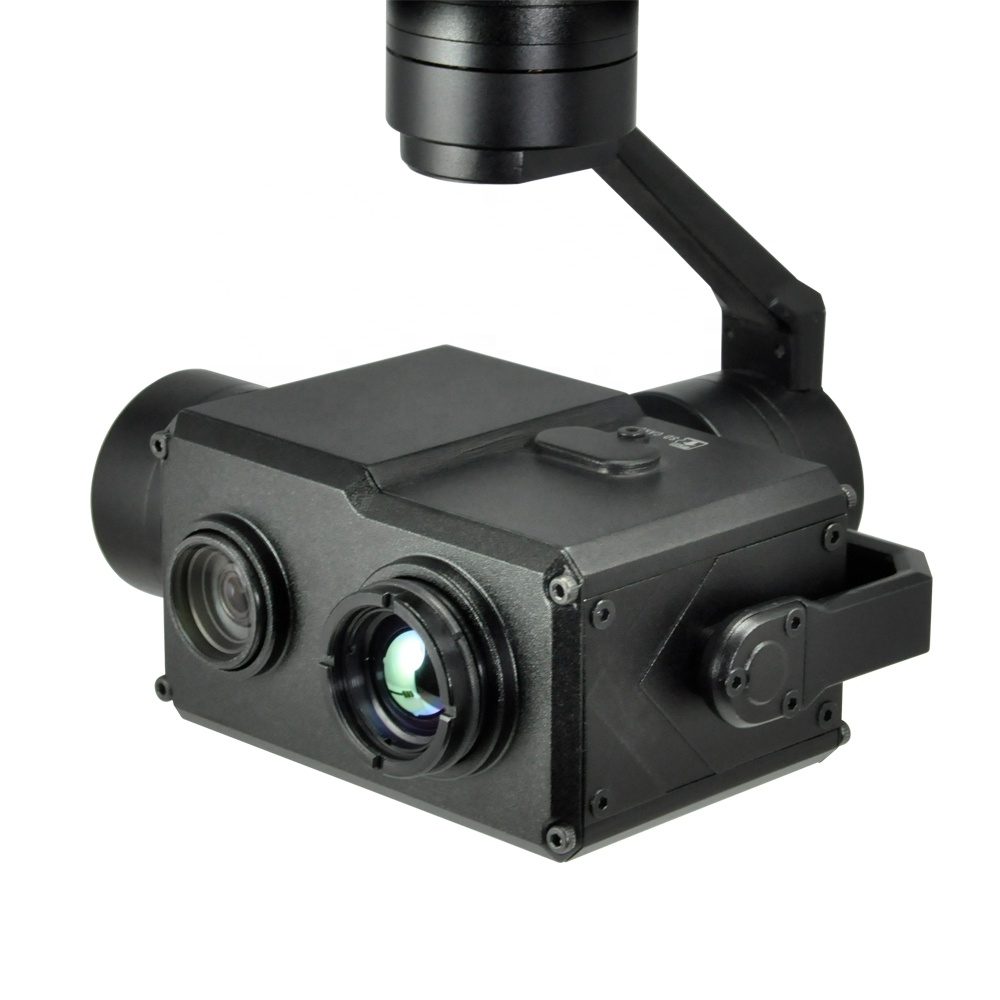

3 axis gimbal camera Mini Infrared thermal for inspection and surveillance DJI drone

3 axis gimbal camera Z10TIR gimbal camera features an 10x optical zoom lens. It’s powered by 1/3″ CMOS module, and 4.08 million effective pixels, fast auto-focus speed,  with 1080p HD image quality, as well as visible light, thermal imaging tracking.

It is compact size, light weight, support PWM, S. BUS and TTL. All parameters have been perfectly set, you just need to install the gimbal camera to UAV, then ready to fly.

* Highly competitive cost
* DJI’s strategic partner

* Leading in the field for UAV payload of advanced technology.

* Certified by CE/ROHS authoritative institution.

Product Name:
UAV gimbals camera
Image sensor:
1/3″ CMOS
Model
Mini Z10TIR
Lens:
10x optical zoom, F=3.2~33.6mm
Working voltage:
12V(4s~6s)
Output:
Micro HDMI 1080P/ IP / SDI
Total pixel
4.08MP
Picture quality
Full HD 1080 (1920*1080)
Local storage:
SD card up to 128G
Pitch/Tilt:
±90°
Roll:
±85°
Yaw/Pan:
±170° / ±360°*N (IP / SDI output)
Vibration angle:
Pitch/Roll: ±0.01°, Yaw:±0.01°

3 axis gimbal camera 3 axis gimbal camera

SKU: 5487FB8/21-33 Categories: ,
Weight 1.8 kg
Dimensions 28 × 26 × 18 cm
Product Name:
UAV gimbals camera
Image sensor:
1/3″ CMOS
Model
Mini Z10TIR
Lens:
10x optical zoom, F=3.2~33.6mm
Working voltage:
12V(4s~6s)
Output:
Micro HDMI 1080P/ IP / SDI
Total pixel
4.08MP
Picture quality
Full HD 1080 (1920*1080)
Local storage:
SD card up to 128G
Pitch/Tilt:
±90°
Roll:
±85°
Yaw/Pan:
±170° / ±360°*N (IP / SDI output)
Vibration angle:
Pitch/Roll: ±0.01°, Yaw:±0.01°
