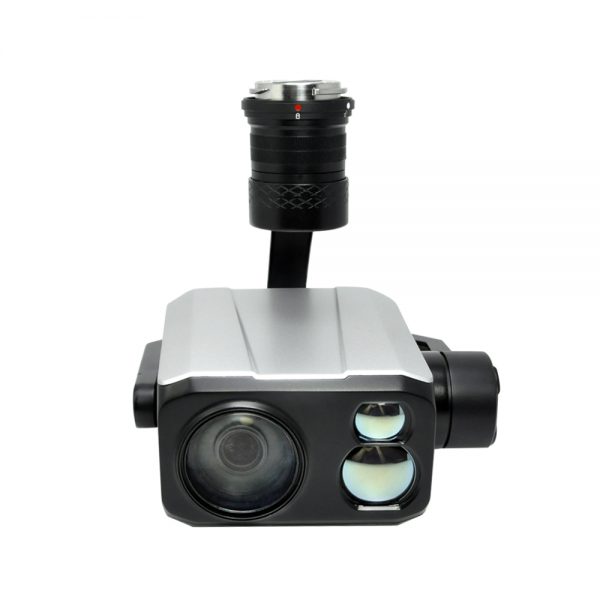

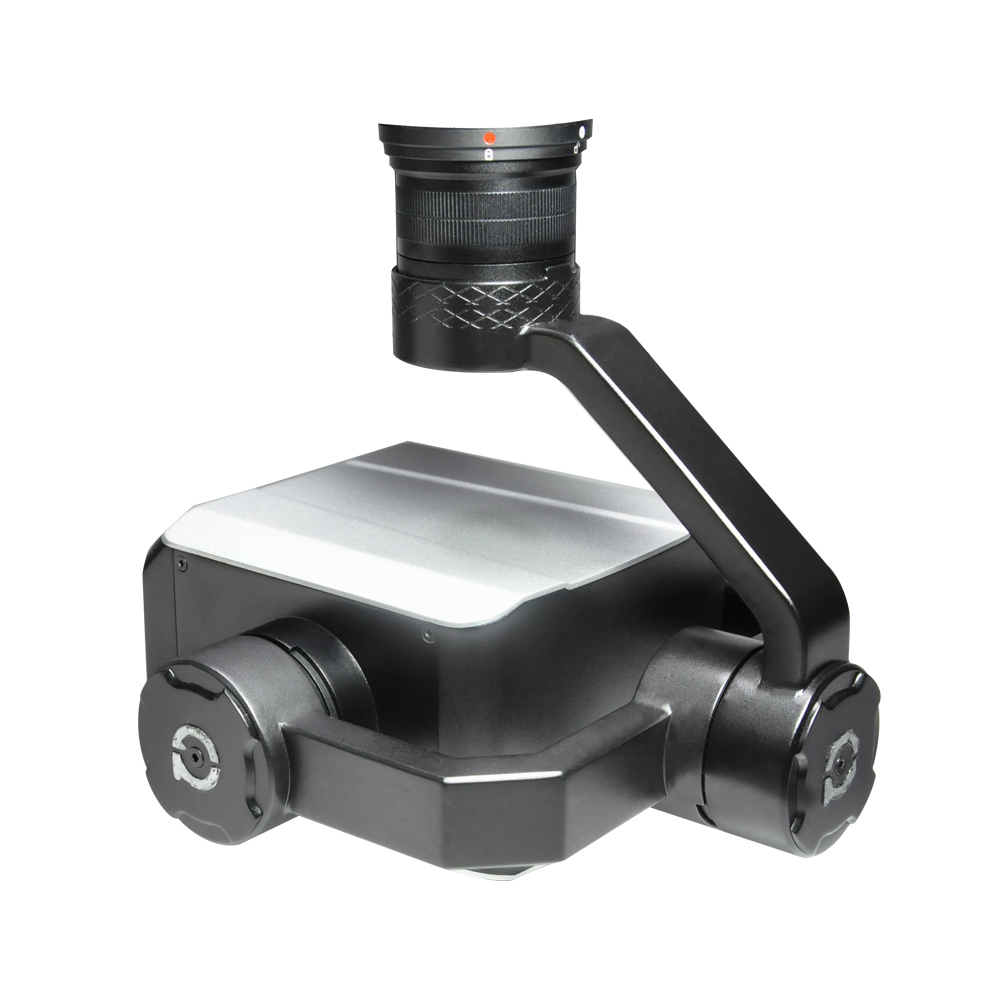

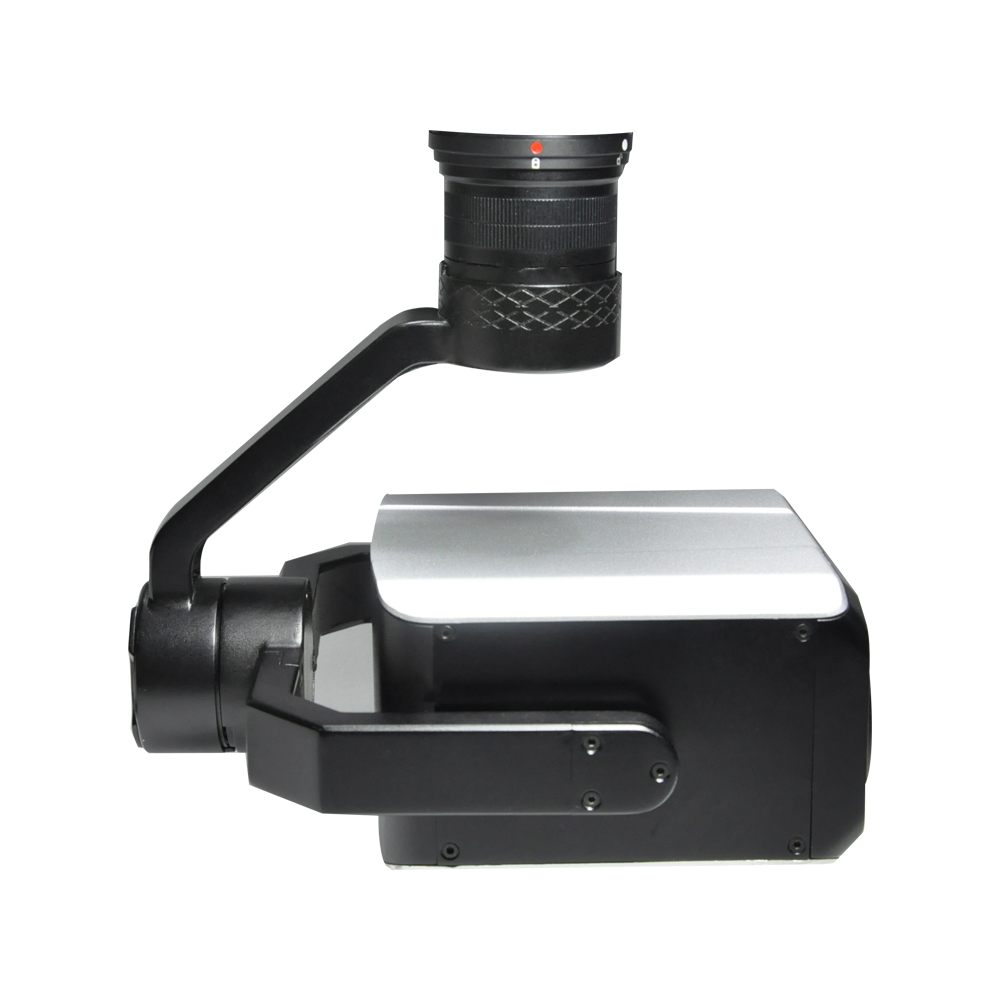

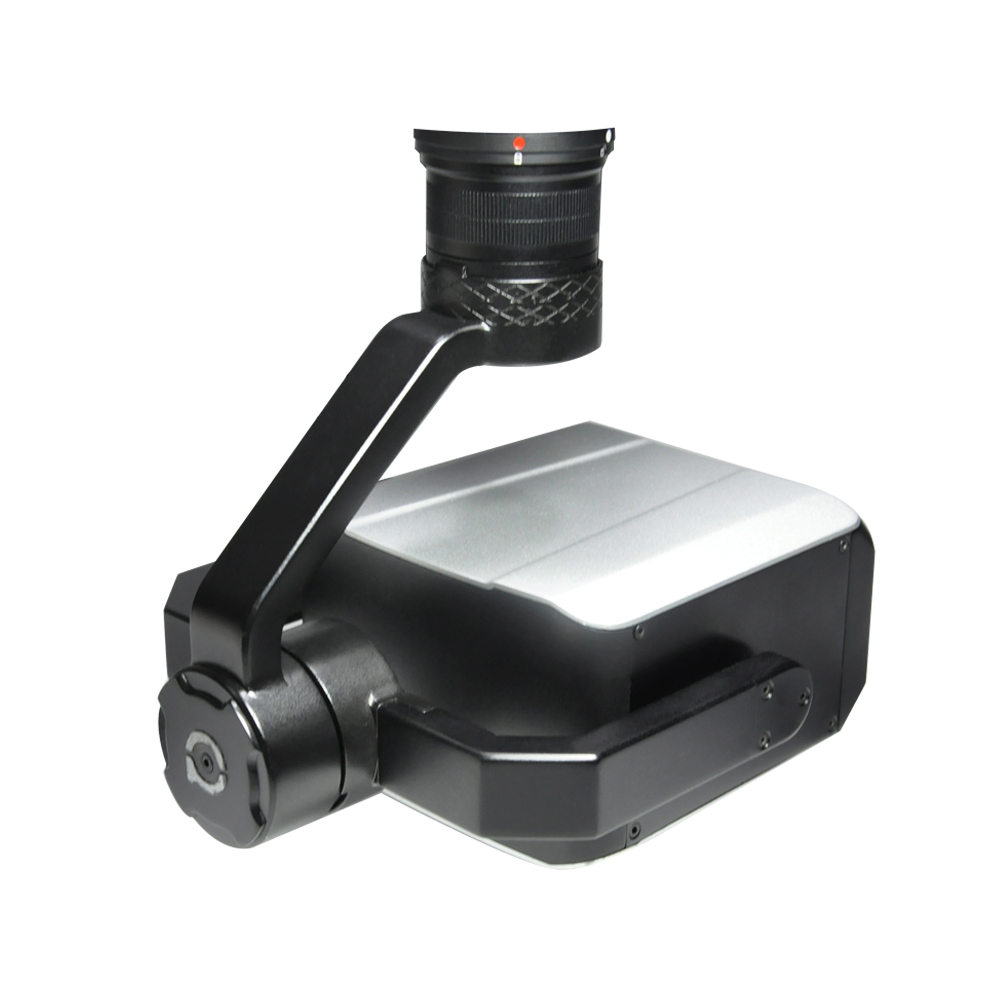

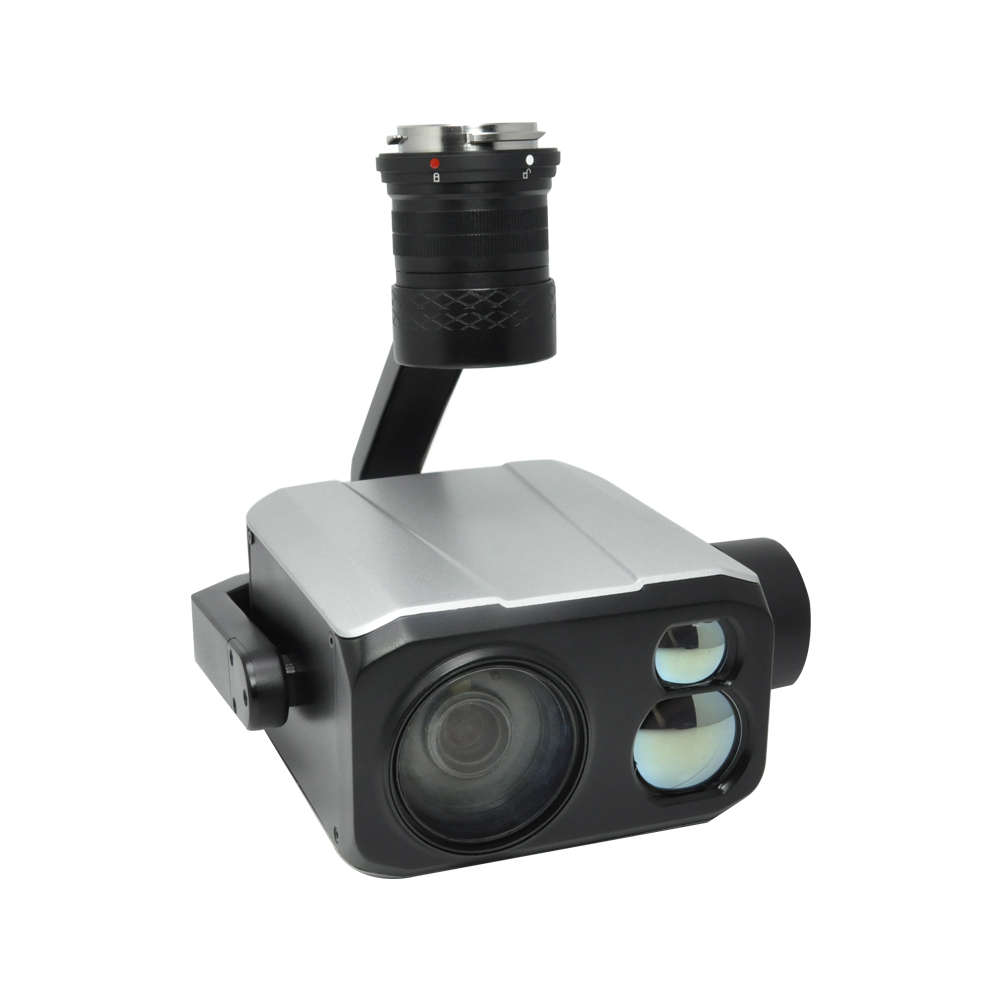

30x Zoom Optical Gimbal Camera for DJI UAV drone with laser ranger GPS location resolving object tracking

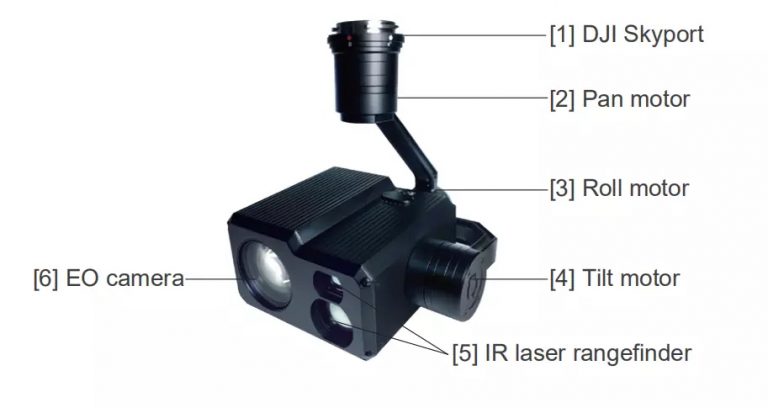

30x Zoom Optical Gimbal Camera X30TM is a high-precision professional 3-axis gimbal which features high stability, small size, light weight and low power consumption. The 3-axis gimbal based on FOC motor control technology, adopts high-precision encoder in each motor. It can be used on DJI drones M200 / M210 / M210RTK. Controlled by APP DJI PILOT it can fullfill many powerful functions, such as: photos or videos with 30 times optical
zoom, object tracking, laser rangefinder and so on. The speed of X30TM gimbal is adjustable, LOW speed mode for tele end, the control will be more accurate; Fast speed mode for wide end, which makes the gimbal control sensitive and quick. Also the one-key to center function will allow the gimbal return to initial position automatically and rapidly. You can input a degree in APP Payload Setting and get the gimbal attitude angles exactly.

Main Features

– 30x optical zoom
– 5~1500m IR laser rangefinder
– GPS location resolving
– Object tracking
– Competible with DJI drones M200 / M210 / M210RTK.
-682g

30x Zoom Optical Gimbal Camera 30x Zoom Optical Gimbal Camera

Specifications
Hardware Parameter
Working voltage
12V
Working environment temp.

-40℃ ~ +60℃
Output
 Skyport
Local-storage
SD card (Up to 128G, class 10, FAT32 or ex FAT format)
Control method
DJI Pilot
Gimbal Spec
Pitch/Tilt
±90°
Roll
±85°
Yaw/Pan
±360°
Vibration angle
Pitch/Roll: ±0.02°, Yaw:±0.03°
One-key to center
Camera Spec
Imager Sensor
SONY 1/2.8″ “Exmor R” CMOS
Picture quality
Full HD 1080 (1920*1080)
Effective pixel
2.13MP
Lens optical zoom
30x, F=4.3~129mm
 Object Tracking
Update rate of deviation pixel
50Hz
Output delay of deviation pixel
<10ms
Minimum object size
16*16 pixel
Maximum object size
128*128 pixel
Tracking speed
±32 pixel/frame
Object memory time
100 frames (4s)
Laser Rangefinder
Range
5~1500 meters
Location Resolving
Latitude and longitude of target
Ranefinder
Target distance measuring
SKU: 5487FB8/12-31 Categories: ,
Weight 2.5 kg
Dimensions 36 × 30 × 25 cm
Specifications
Hardware Parameter
Working voltage
12V
Working environment temp.

-40℃ ~ +60℃
Output
 Skyport
Local-storage
SD card (Up to 128G, class 10, FAT32 or ex FAT format)
Control method
DJI Pilot
Gimbal Spec
Pitch/Tilt
±90°
Roll
±85°
Yaw/Pan
±360°
Vibration angle
Pitch/Roll: ±0.02°, Yaw:±0.03°
One-key to center
Camera Spec
Imager Sensor
SONY 1/2.8″ “Exmor R” CMOS
Picture quality
Full HD 1080 (1920*1080)
Effective pixel
2.13MP
Lens optical zoom
30x, F=4.3~129mm
 Object Tracking
Update rate of deviation pixel
50Hz
Output delay of deviation pixel
<10ms
Minimum object size
16*16 pixel
Maximum object size
128*128 pixel
Tracking speed
±32 pixel/frame
Object memory time
100 frames (4s)
Laser Rangefinder
Range
5~1500 meters
Location Resolving
Latitude and longitude of target
Ranefinder
Target distance measuring
