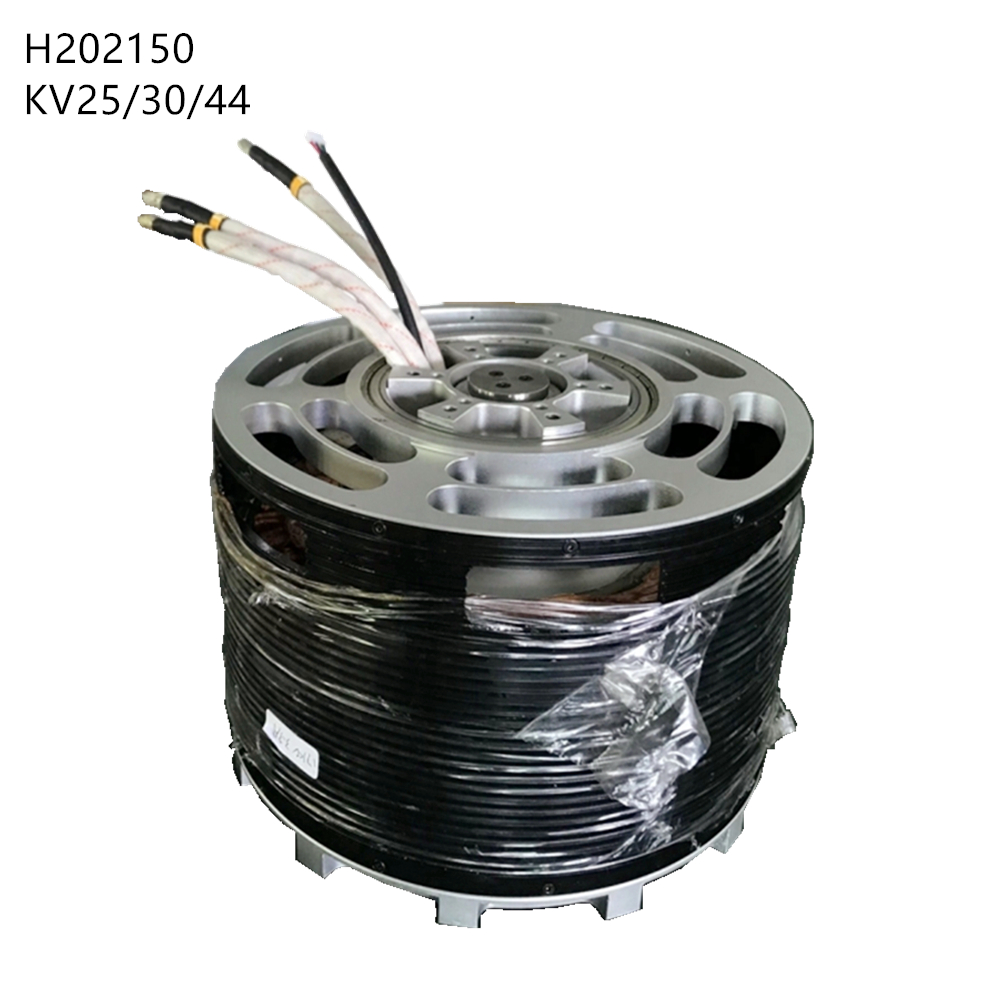

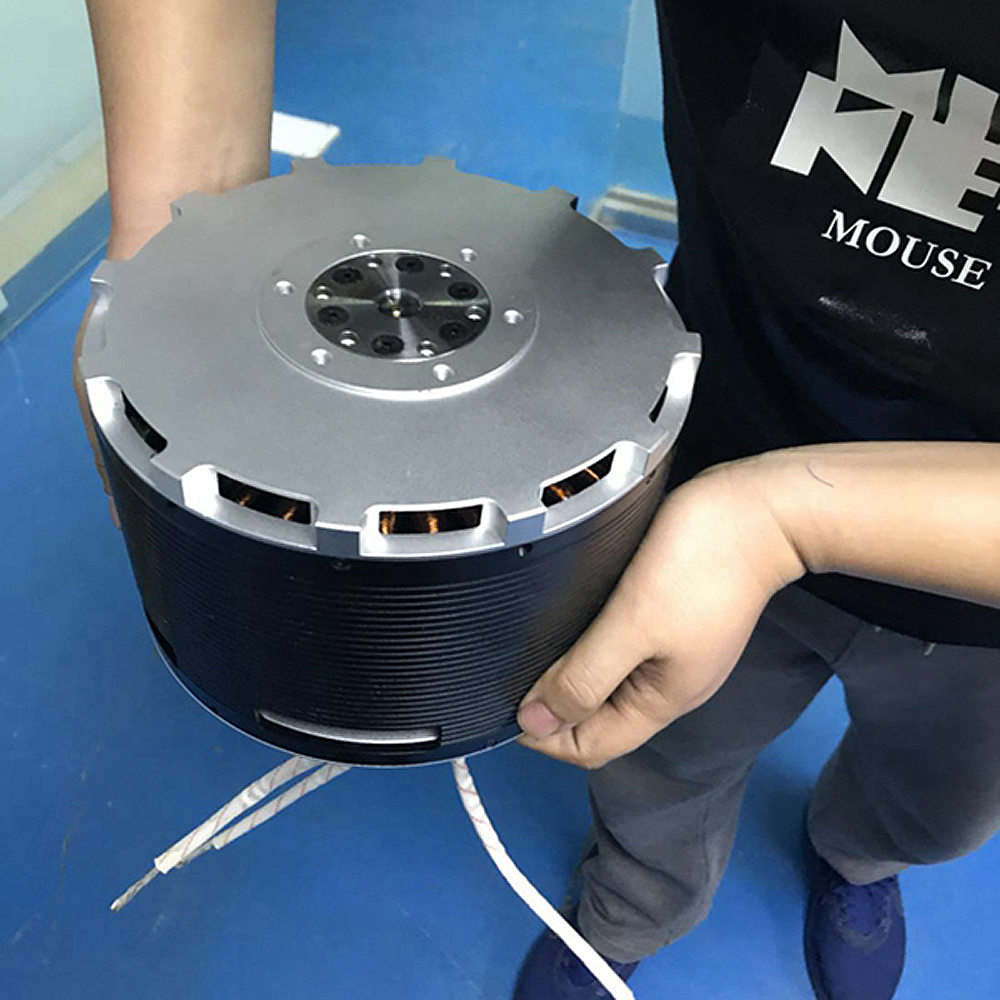

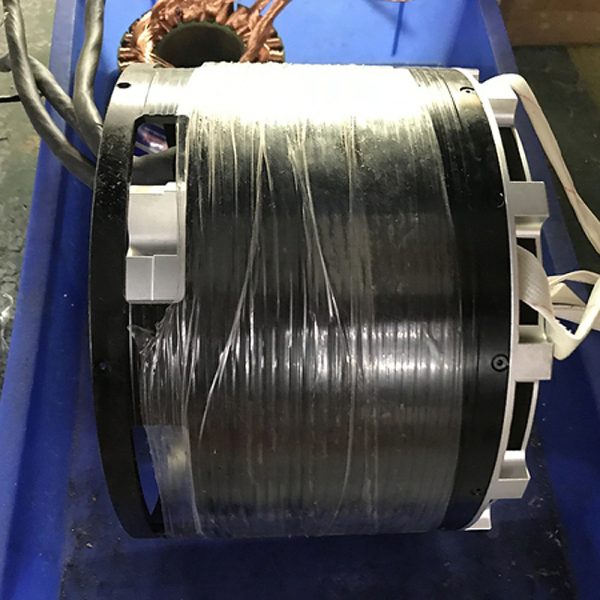

commercial drone motor H202150 custom made heavy duty Multi-rotor motor high-voltage power UAV version drone

commercial drone motor with high quality components for single- and multi-rotor unmanned aerial systems (UAS). We are a market leader in both custom and off-the-shelf brushless motors, electronic speed controllers (ESCs), and military-grade propeller blades for commercial and industrial drones. The brushless motor The motors of your drone is what your propellers are connected to which cause them to spin around and generate thrust to enable your drone to fly. Simply put, a brushless motor contains a bunch of electromagnets (coils) which are connected together in specific pairs. What is KV in drone motor? It is measured by the number of revolutions per minute (rpm) that a motor turns when 1V (one volt) is applied with no load attached to that motor. The Kv rating of a brushless motor is the ratio of the motor’s unloaded rpm to the peak voltage on the wires connected to the coils.

Model (Motor Type) KV15

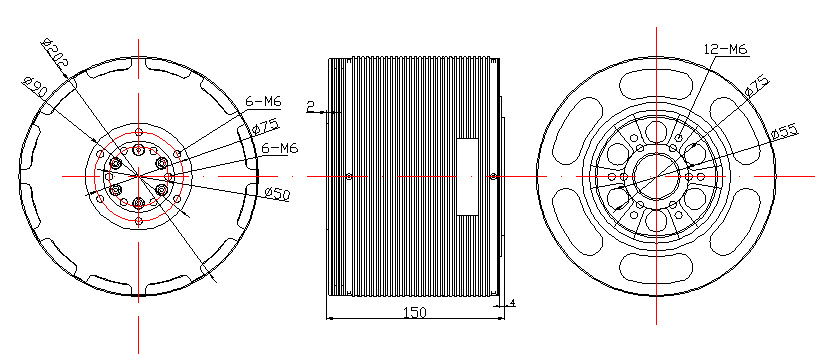

Motor Size Motor Size(mm) φ202*150
Weight(g) 12000
Torque (nM) 130
Speed (RPM) 4500
Max Continuous Current(A) 250
Max Continuous Power(W) 80000
Continous power(W) 45000
Max Pulling Force(g) 180000
Suitable for ESC  144v 400A
SHAFT: 20mm
SLOT:36
POLES: 20 (40 MAGANET)

commercial drone motorcommercial drone motor commercial drone motor commercial drone motor

Weight 13 kg
Dimensions 50 × 40 × 30 cm
