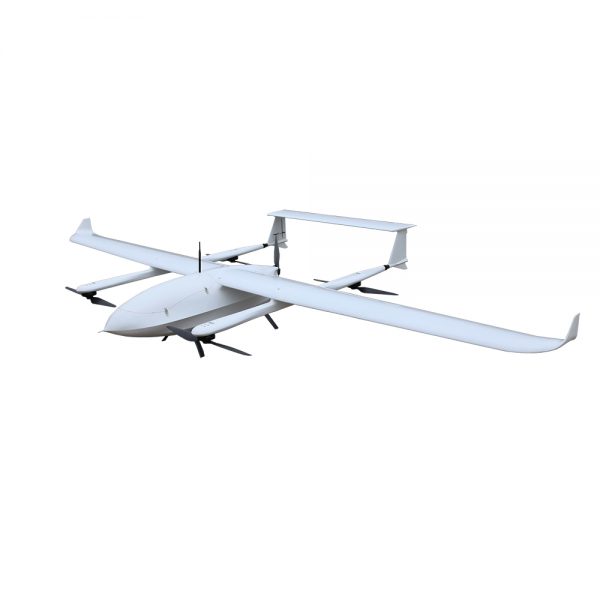

eVTOL Electric Vertical Take-Off and Landing UAV for survey can carry Lidar with 7 KGS for 1.5 hours endurance

eVTOL (electric vertical takeoff and landing) is a type of aircraft that uses electric power to hover, take off, and land vertically. This technology came about thanks to major advances in electric propulsion (motors, batteries, electronic controllers) and the growing need for new vehicles. FD30-V industry leading mid-to-long range UAV, optimized for tight launch and landing zones. This extremely versatile platform can be retrofitted for many applications, including but not limited to: Agriculture, surveying, search and rescue, pipeline monitoring, emergency response, infrastructure inspection, and disaster relief. From small businesses seeking value to government and enterprise level organizations that require efficiency and ease of use, the Sentaero FD30-V is the best in class UAV solution.

Specification:

Wingspan: 4210MM Captain: 2100mm
Aircraft material: full composite material
Maximum take-off weight: 32 kg
Standard take-off weight: 30 kg
Life time: 4 hours (load 1 kg)
2 hours (load 5 kg)
1.5 hours (load 7 kg)
Wind resistance: level 6
Waterproof: IP34
Service ceiling: 6000 meters
Load: 1-7 kg
Flying speed: 23-25 m/s
Equipment cabin space: 400MM*340MM*270MM

Salient features:
1. The whole machine adopts full composite materials, excellent flight start layout, reserved electric and gasoline engine interfaces, which is convenient to use different power schemes.
2. Large-sized task bin, suitable for carrying a variety of large-scale tasks including lidar, full-frame tilt camera, etc., and a task load of up to 7 kg, realizing multi-purpose.
3. Unique structure design, overall quick release structure design, convenient for transportation and installation. Good pitch, roll and direction attitude, super high flight path accuracy.



NOTE: THE PRICE IS JUST KIT, WITHOUT ANY ELECTRONIC, AND THE PACKING IS IN WOODEN CASE NOT IN ALUMINUM BOX!





SKU: 5487FB8/10-146 Category:
Weight 30 kg
Dimensions 150 × 60 × 50 cm
