FDAD-Q630L drone sprayer 30L large capacity frame KIT
drone sprayer agriculture crop spraying drones. 30L agriculture crop spraying drone is always the most popular. FDAD-Q630L 30L agriculture drone is specially designed for the most popular 30L capacity. The effective capacity of the drone is 30L. It adopts a quick-release water tank and battery, compact body, light in weight and convenient to fold. Radar and FPV cameras are the first choice for entry-level plant protection drones, there reserved installation space for them on the FDAD-Q630L 30L series drones.
|Frame and spraying weight||13KGS|
|Frame and motor sets weight||23.85KGS|
|No-load takeoff weight||32.2KGS(including 14S 1*22000mAh battery 7KGS)|
|Full load Take-off weight||62.2KGS|
|Nozzle||Ceramic sprinkler head imported from Germany/China|
|Number os nozzles||4pcs|
|Flight Speed||3-8 Meter /Sec|
|Spray width||3-6 Meter /Sec|
|Max spraying flow||1.5-3 kg/min. （Max. 4kg/min.）|
|spaying efficiency||1.5-3 Acres/Min.|
|Water Pump Pressure||0.48mPa|
|Delivery package size||Aluminum Box 1100*600*850mm 45kg|
|Transport volume weight||110.2kg|
|The fuselage material||Carbon fiber composite|
|Max flight time (no load)||20min|
|Max flight time (full load)||8min|
|The tank volume||30L|
|Working temperature work||-15°C~45°C|
|Signal effective range||5km|
|Flight Control systems||Boying|
|Dynamic System||Hobbywing X9 plus, tube: 40mm|
|Spraying System||High Pressure Spray|
|The battery specification||14S 28000mah*1PCS|
|Recharge Cycles||300-500 times|
|Storage ambient temperature||For less than 3 months: – 20 ° C ~ 45 ° C
For more than 3 months: – 22 ° C ~ 28 ° C
|Hover time||No-load flight Time: 20.3minutes (48V)
Full-Load flight time: 6.35 minutes (48V)
|Standby time of remote control||8hrs|
|1. Android ground station, easy to use / PC ground station, full voice broadcast|
|2. Router Setting support, Fully Auto Flight operation with A,B Point operation.|
|3. One Button take-off and landing, More safety and time saving.|
|4. Contrinue Spraying at Breakpoint, Auto Return when finish liquid and low Battery.|
|5. Liquid Detection, Break Point record setting.|
|6. Battery Detection, Low Battery return and Record point setting available.|
|7. Terrain following Radar, Stable Altitude setting|
|8. Vibration Protection, Lost Contact protective, Tank empty detect|
|9. Motor Sequance Detection and Direction detection Function.|
|10. Dual Pump Mode|
|11. The night vision function|
|12. Three anti – one lamp|
|Parameter of the Spraying system|
|Water Pump: 12S brushless water pump
Nozzle: Extension rod Y shape double 1.0 nozzle
Extension rod U shape double 1.0 nozzle
Note: The drone can work with two water pumps or 4 pumps, you can use them according to your requirements. When the 2 water pump works, one water pump controls 4 nozzles, and when the four water pump works, one water pump controls 2 nozzles. Four pumps can support independent spraying in front and back, and the atomization effect is better. Two pumps do not support independent spraying in front and back, which has better cost and other functions are consistent;
|1. Crossfolding Method ,The arms of the Q630L are folded in a staggered way, minisize the folding size, more convenient for transportation.|
|2. Integrated Fuselage Frame The fuselage frame of the Q630LAgriculture spraying drone is formed n one body, which simplify the structure and improve the strength of the frame. Therefore, the Q630L has good durability and reliability.|
|3. Quick Release Battery & Tank The water tank of the Q630L adopts plug-in design, and the battery can be placed vertically in the battery compartment.The size of the battery compartment is 168mm in length, 93mm in width and the height is not limited. Any 12S battery in this size can use on the Q630L drone. It is convenient to replace the tank and battery.|
|4. Dustproof and Waterproof The whole drone is dustproof and waterproof, and the waterproof grade reachs IP65. The frame can be washed directly with water.|
|5. Great Expandability The radar, fpv camera, pump and some other parts can install on the drone.|
Please note this is just frame KIT, not include any electronic.

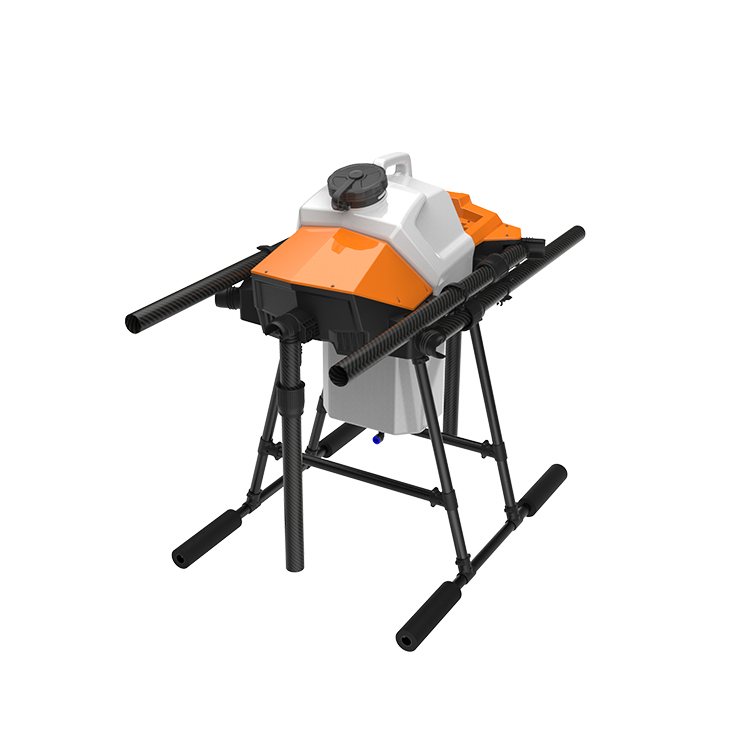

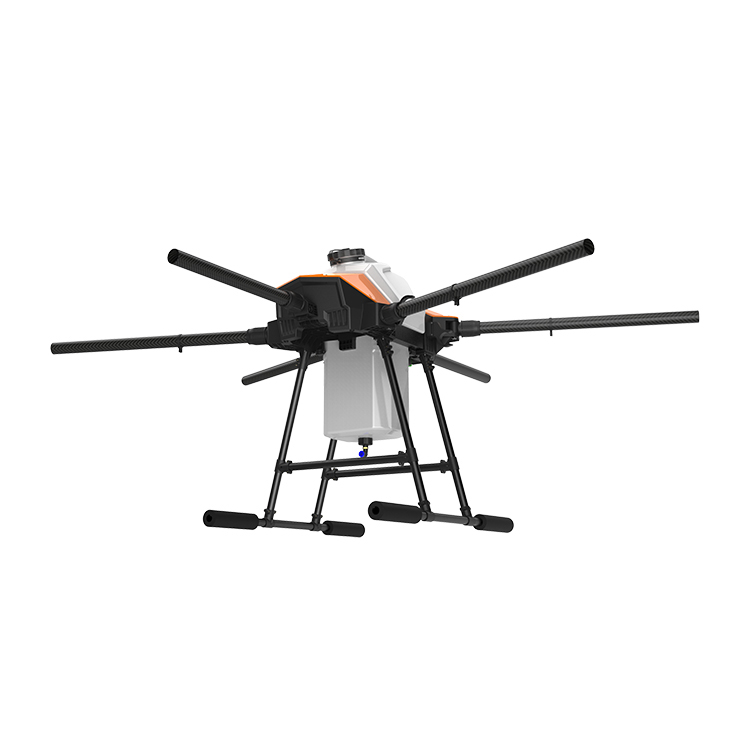

The arms of the FDAD-Q630L are folded in a staggered way, minisize the folding size, more convenient for transportation.
Integrated Fuselage Frame
The fuselage frame of the FDAD-Q630L Agriculture spraying drone is formed n one body, which simplify the structure and improve the strength of the frame. Therefore, the FDAD-Q630L has good durability and reliability.
Quick Release Battery & Tank
The water tank of the FDAD-Q630L adopts plug-in design, and the battery can be placed vertically in the battery compartment. The size of the battery compartment is 168mm in length, 93mm in width and the height is not limited. Any 12S battery in this size can use on the FDAD-Q630L drone. It is convenient to replace the tank and battery.
Dustproof and Waterproof
The whole drone is dustproof and waterproof, and the waterproof grade reachs IP65. The frame can be washed directly with water.
The radar, fpv camera, pump and some other parts can install on the drone. The below picture is just for reference.
