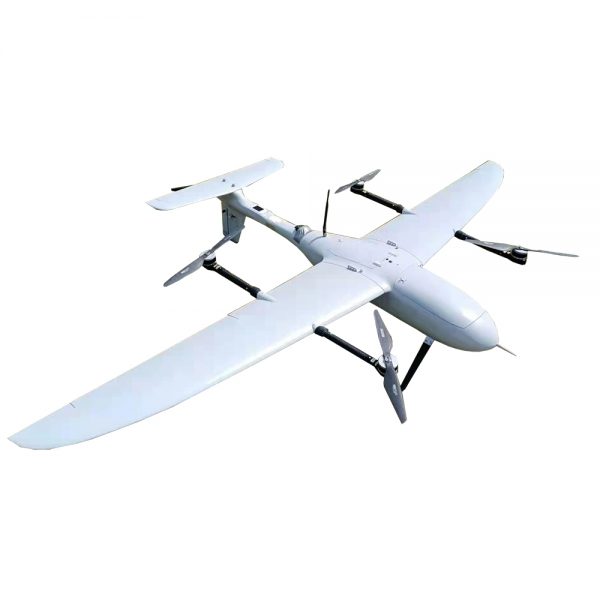

FDG23 pro VTOL UAV drone for mapping & surveillance
FDG23 pro VTOL UAV drone is a cost-effective and easy-to-use VTOL specifically designed for mapping. Made from composite materials, the frame is light and tough with featuring high performance. The quick-assemble design allows you to assemble it easily without any tools so as to shorten preparation time for each flight. it can complete 12 square kilometer area mapping job in a 90-min-flight, if equipped with Here+ RTK Base(option) FDG23 VTOL UAV drone pro can realize centimeter-level positioning. Also we have PPK solution for mapping, you can reach us about more details.
FDG23 pro VTOL features aerodynamic shape and Low air resistance. With powerful propulsion system Max. take-off weight can reach 13kg and the endurance time is 210 minutes with 1KGS payload. Besides, it with stands 5.5m/s-7.9m/s(12.5mph-17.5mph) wind, making it possible to perform aerial task in various complex situations. The GPS module is mounted on tail-wing, away from power system, that greatly reduces interference.
VTOL UAV Specification:
Belly to Ground: 160mm(land gear height support customized)
Battery compartment size: 280*160*100mm
Device compartment size: 150*130*120mm
Payload compartment size: 220*170*110mm
Material: Carbon fiber+Glass fiber
Airframe Weight: 3.5kg
MTOW: 13kg(include batteries)
Max Payload: 2kg
Flight time: 4hrs (no load), 3.5hrs@1kg load
Max Flight Speed: 100km/h
Suggest cruising Speed: 75-90km/h
Max climb rate: 5m/s
Max angel of roll: 35°
Max Flight Altitude: 3000m
Max Wind resistance: Grade 6
Battery (Recommended) :12S 30000mAH HD Li-ion
Working Temperature: -20℃~50℃
IP Grade: IPX3
Package Size: 1260x486x405mm
NOTE： THE PRICE IS JUST FRAME KIT, WITHOUT ANY ELECTRONIC, AND THE PACKING IS IN WOODEN CASE NOT IN ALUMINUM BOX!
