Flight controller with DCU Support Quadrotor Hexarotor Octarotor agriculture spraying GPS Agricultural drone UAV

flight controller T1-A integrates is a  high-precision sensor components, uses the accurate calibration algorithm in advanced industrial level and the intelligent crop protection operation mode. All these made crop protection operation mode intelligent, precise, efficient and convenient.

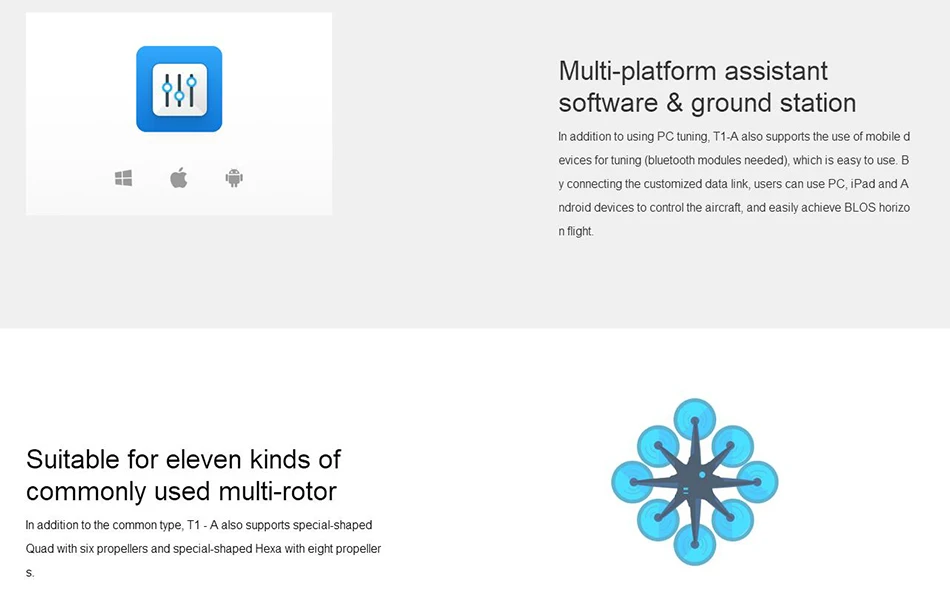

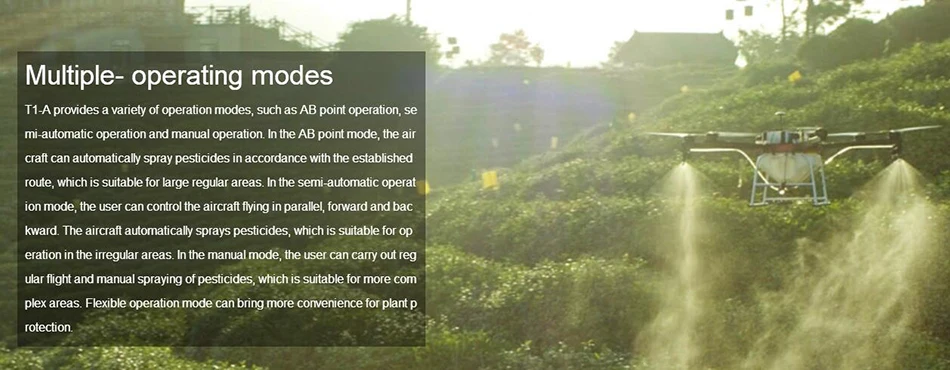

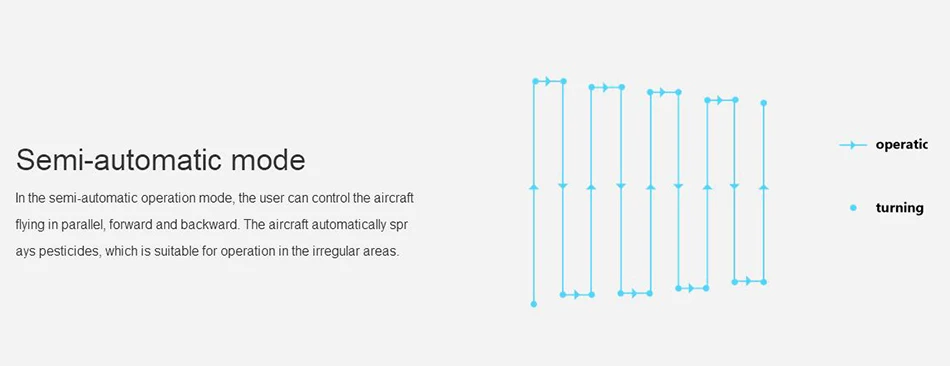

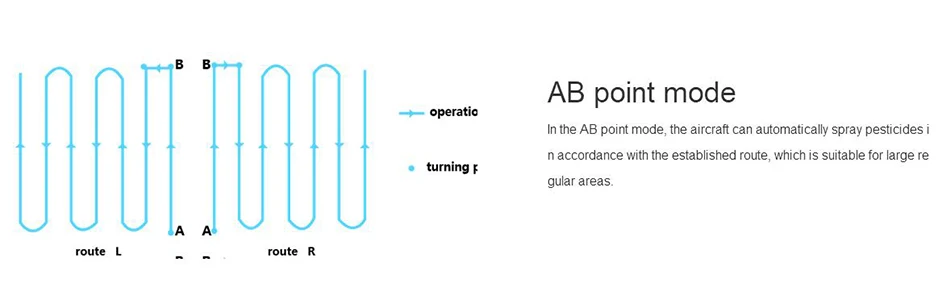

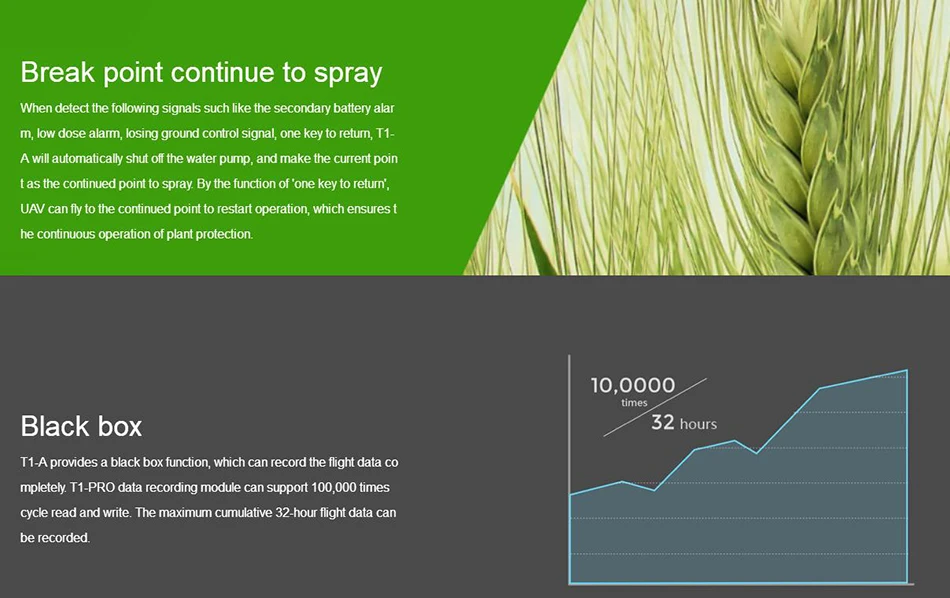

Brief technical performance Multiple- operating modes AB point operation, semi-automatic operation and manual operation Break point continue to spray: the secondary battery alarm, low dose alarm, losing ground control signal, one key to return Black box 100,000 times cycle read and write. The maximum cumulative 32-hour flight data can be recorded. Multi-platform assistant software & ground station By connecting the customized data link, users can use PC, iPad and Android devices to control the aircraft, and easily achieve BLOS horizon flight. Dose monitor When the dosage is lower than the warning value, the LED indicator will flash. It will shut off the pump and record this point as the continued spraying point.

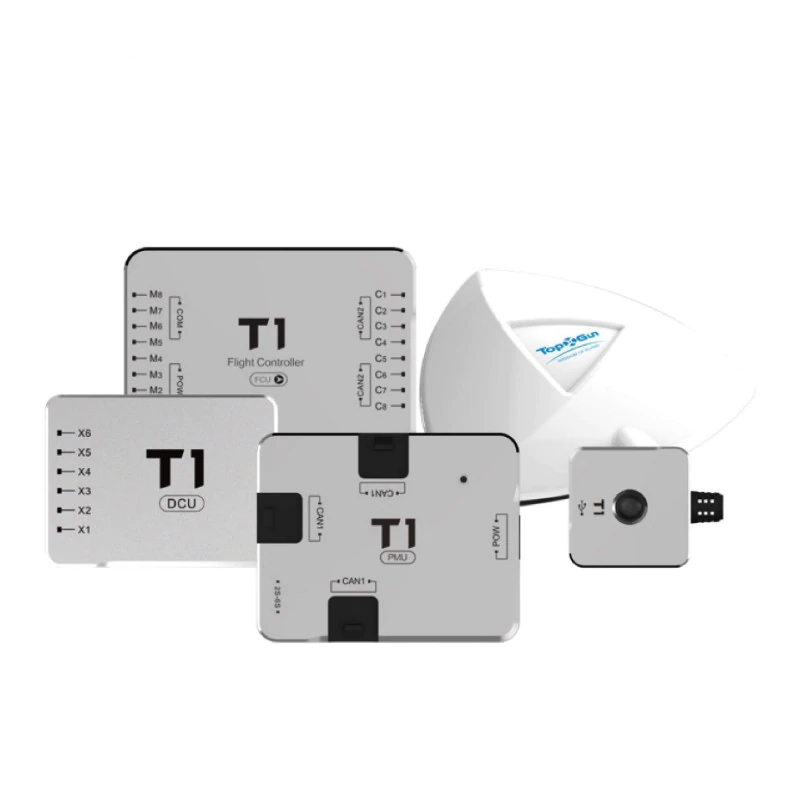

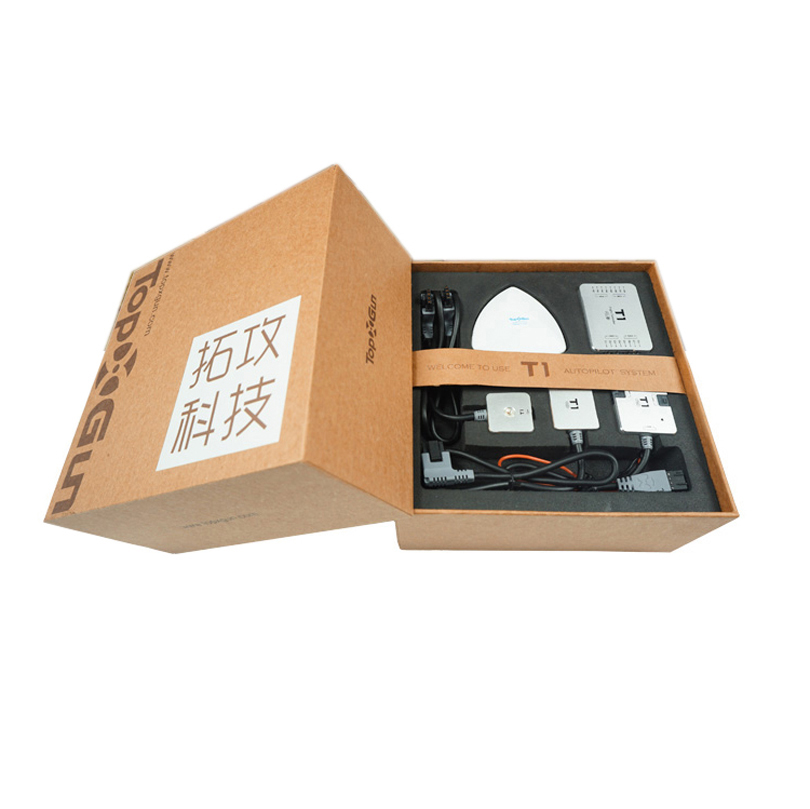

Package List:

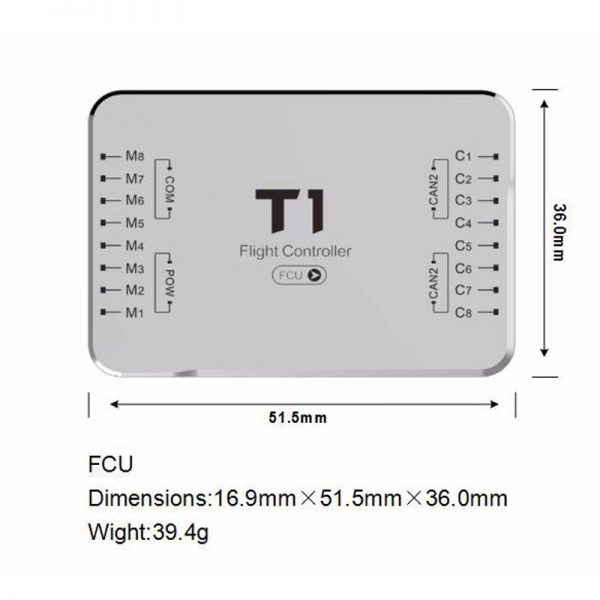

– 1 x Flight controller

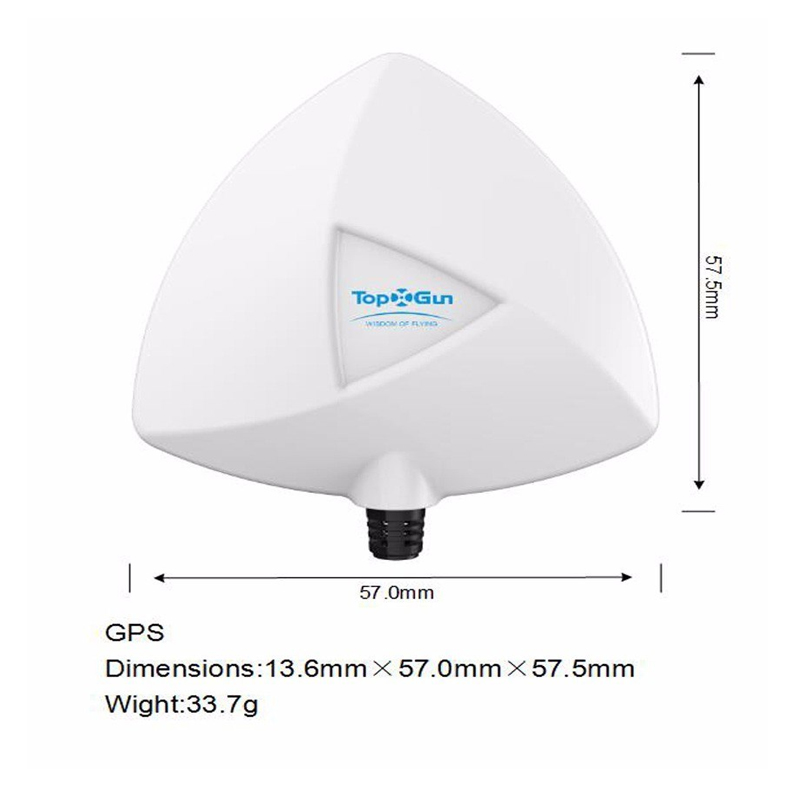

– 1 x GPS

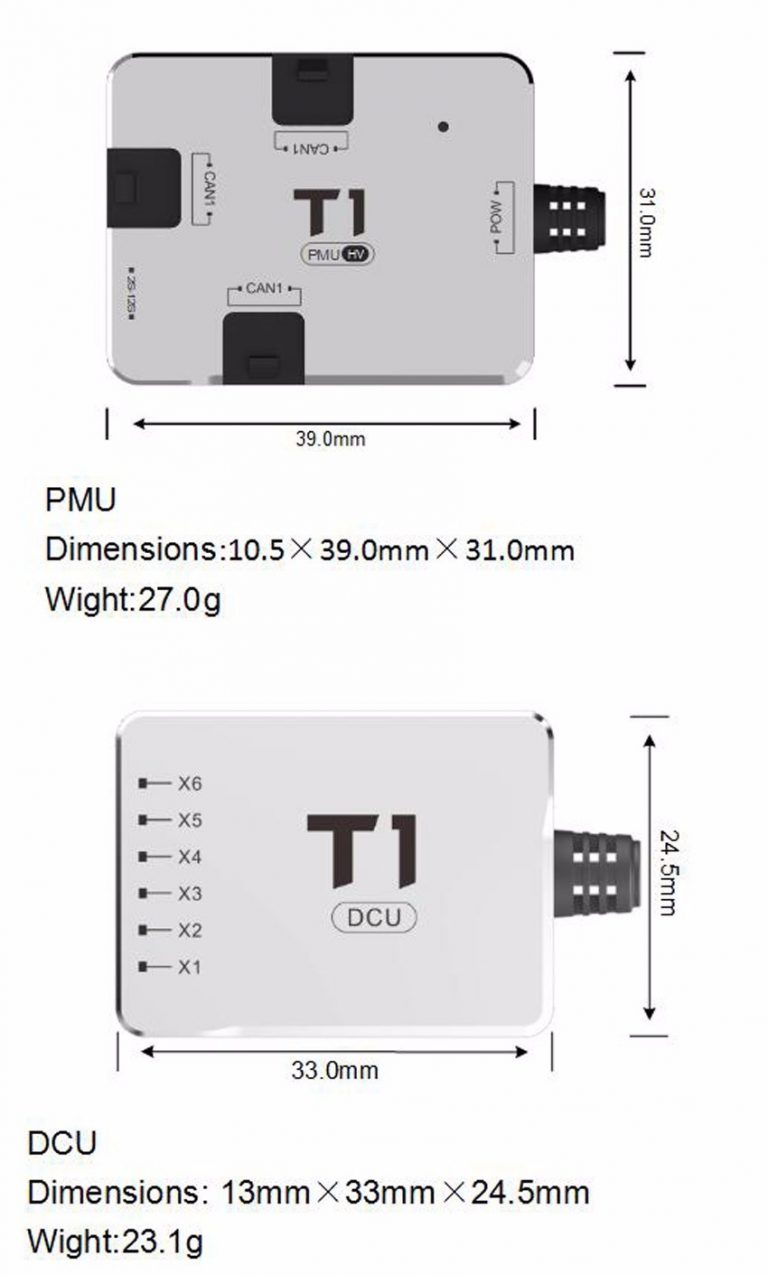

– 1 x PMU
– 1 x DCU

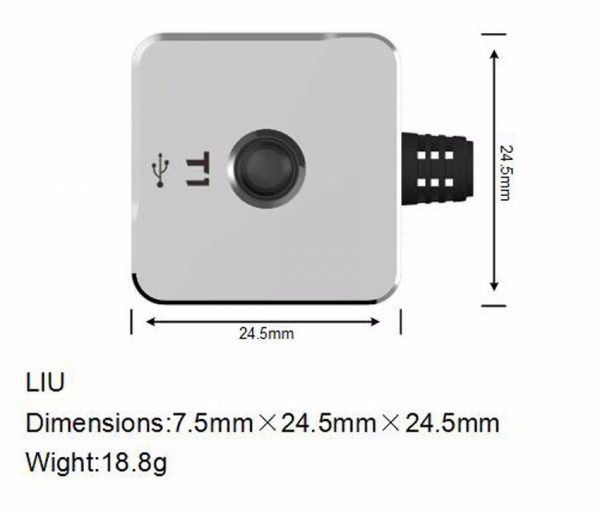

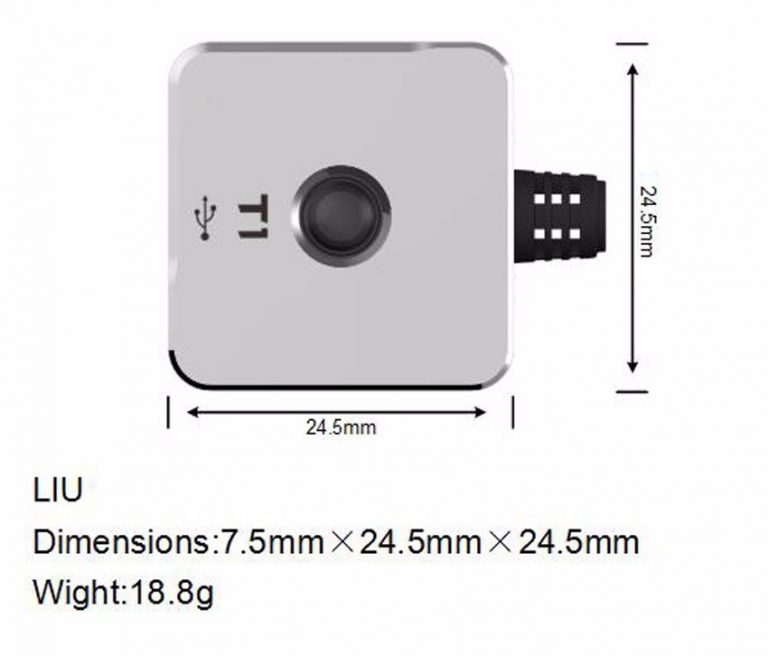

– 1 x LIU



flight controller



Brief introduction vedio

TopXGun T1A flight controller for agricultural drone (1 min 43 sec)

Function demonstration

TopXgun T1A flight controller in agriculture (2 min 0 sec)

Drop altitude test in GPS mode, use X8 frame

TopXgun test T1/T1A drop altitude in GPS mode, use X8 frame (2 min 37 sec)

Customer test result demonstation

TopXGun T1-A Fully Functional (2 min 9 sec)



TopXGun T1-A Programmed flight with RTH (5 min 43 sec)

Specifications:

123456789101112
SKU: 5487FB8/33-26 Categories: , , Tag:
Weight 1.1 kg
Dimensions 35 × 30 × 20 cm

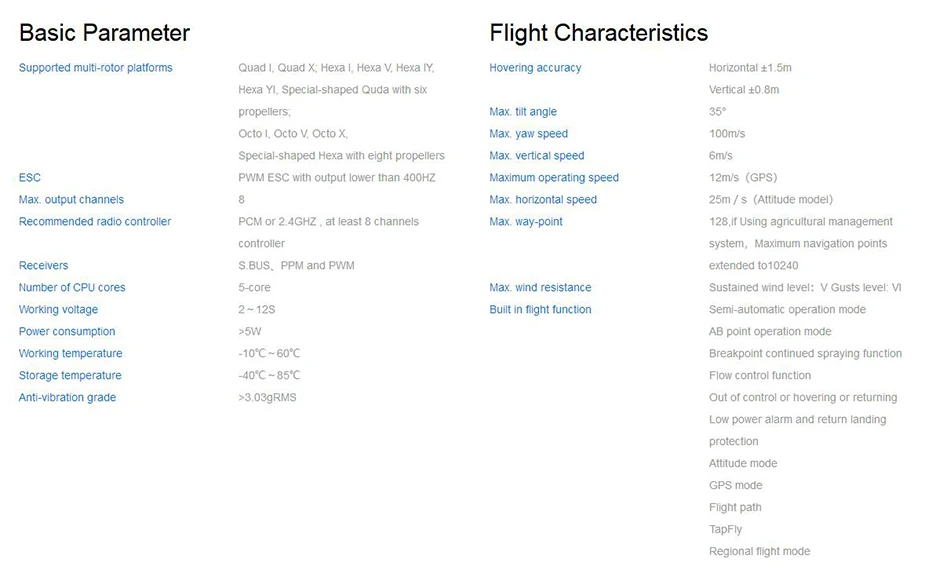

Basic Parameter

Supported multi-rotor platformsQuad I, Quad X; Hexa I, Hexa V, Hexa IY, Hexa YI, Special-shaped Quda with six propellers;
Octo I, Octo V, Octo X,
Special-shaped Hexa with eight propellers
ESCPWM ESC with output lower than 400HZ
Max. output channels8
Recommended radio controllerPCM or 2.4GHZ , at least 7 channels controller
ReceiversS.BUS、PPM and PWM
Number of CPU cores5-core
Working voltage2~6S
Power consumption>5W
Working temperature-10℃~60℃
Storage temperature-40℃~85℃
Anti-vibration grade>3.03gRMS
