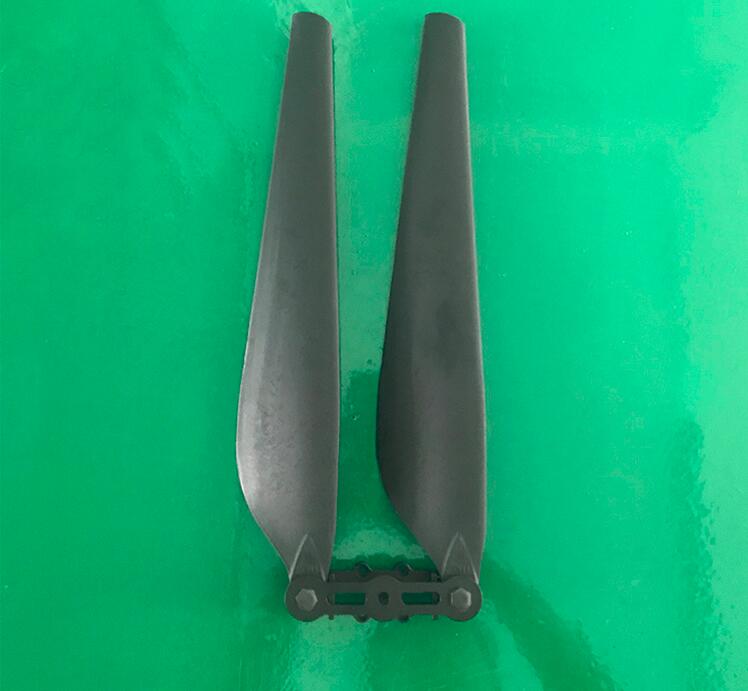

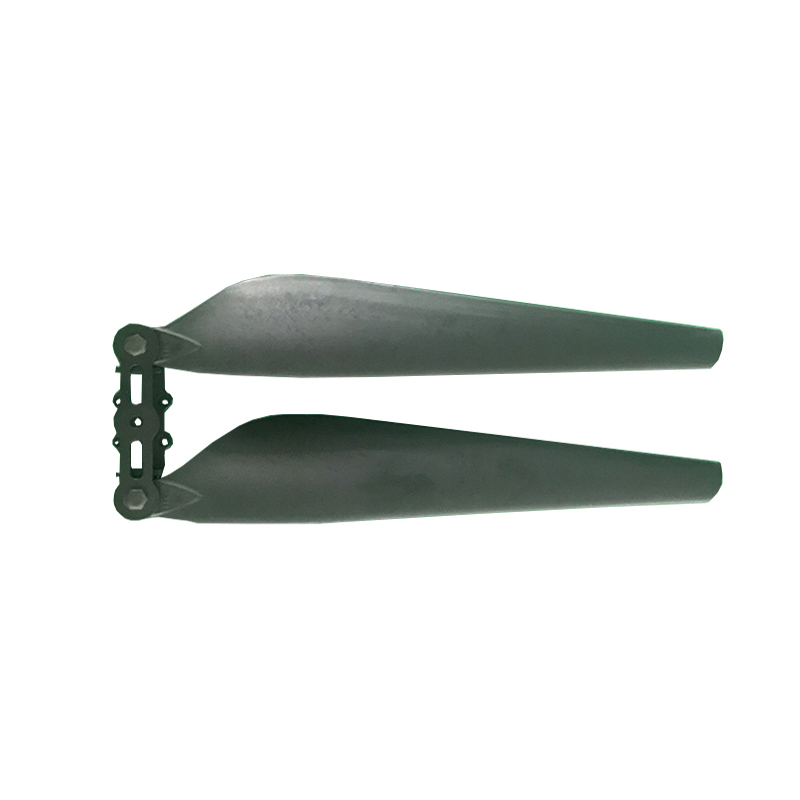

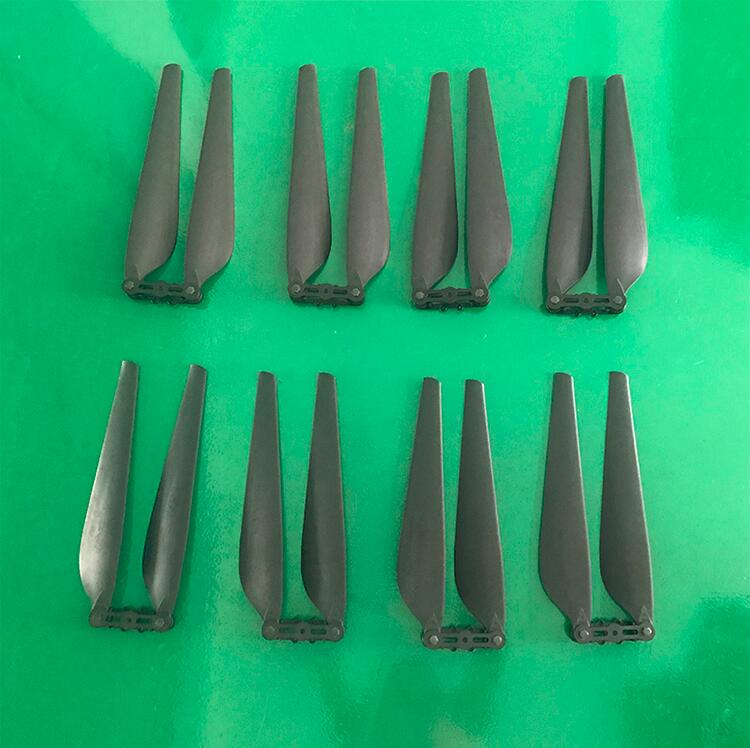

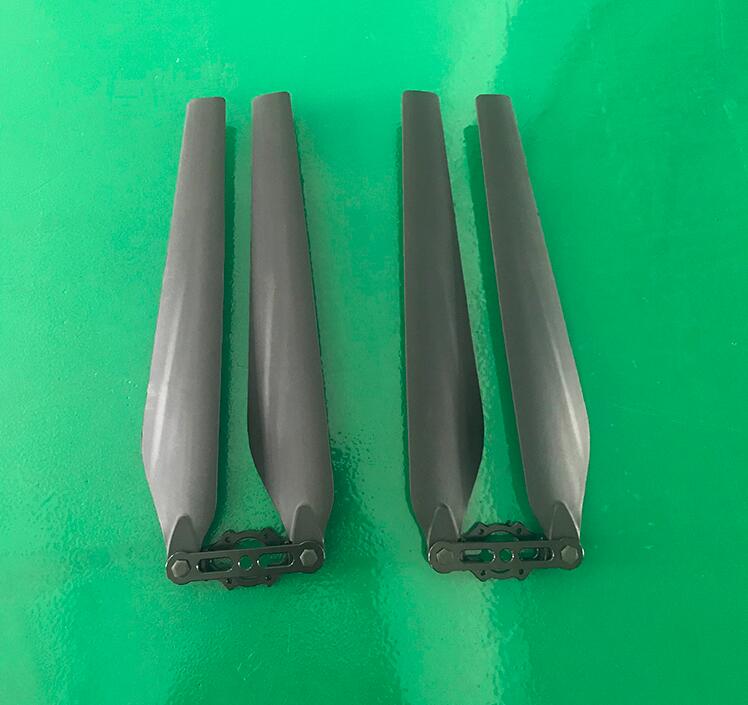

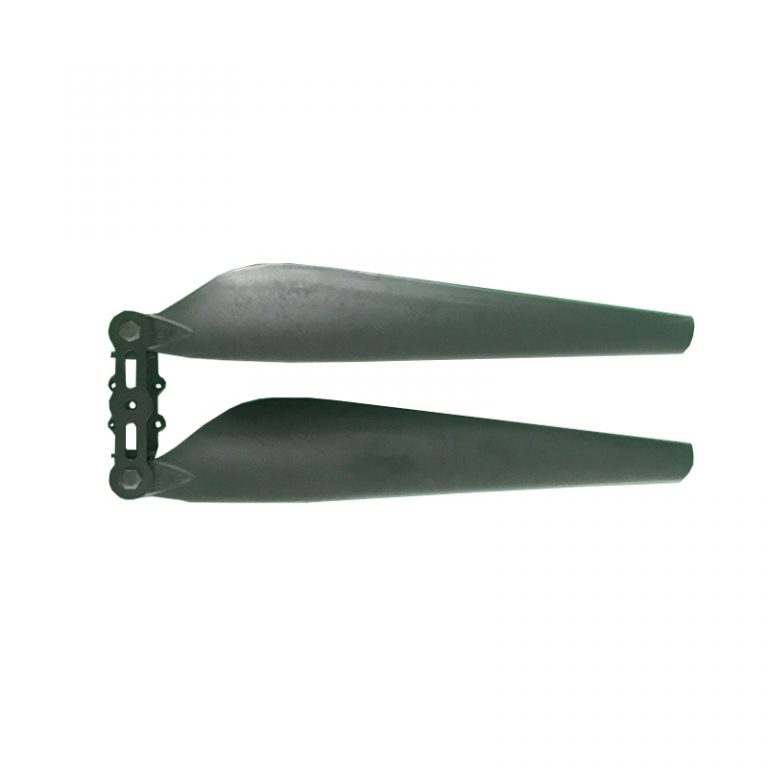

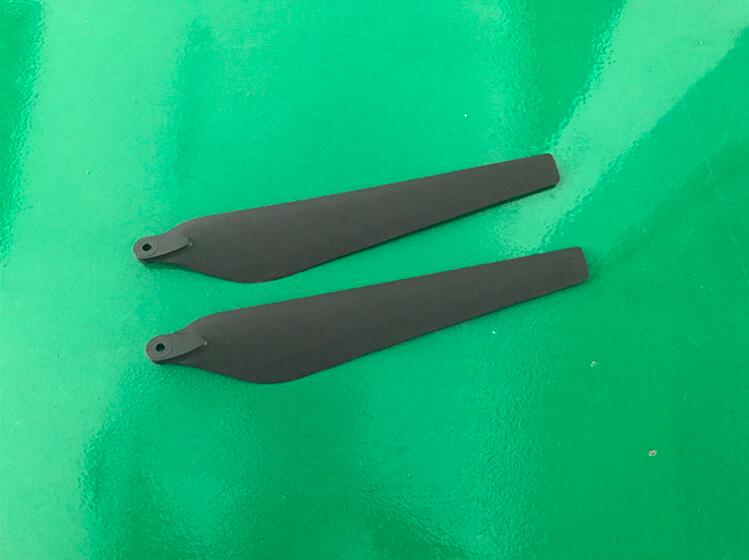

Folding propeller 2280/2380/2680/2880/3080 CW CCW 28 inch and 29 inch propeller for X8 and DJI M10 E500 motor
Folding propeller with high Efficiency Folding Paddle uses a new optimized airfoil design and high-strength engineering materials to ensure good flexibility and wing stability, achieving over 10% efficiency gain and a more dynamic power reserve. Suitable for multi-axis multi-rotor unmanned aerial vehicles such as four-axis and six-axis. You know what motors you’re using for your latest drone project. You’ve picked out your weather-proof ESCs. But which propellers will be holding up your rig? We’ve broken down everything you need to know about. Direct’s propeller blades so you can get right to flying. Our UAS Propeller Blade Series is constructed of true carbon-fiber matrix materials and designed specifically for commercial, industrial, and military usage and applications. Computerized aerodynamic optimizations and airfoil studies used throughout development provide the highest level of performance and manufacturing quality on the market, and are factory dynamically-balanced for vibration-free and exceptionally smooth flight characteristics. Folding propellers are a new development in the world of copters and are vapidly increasing in popularity with their ease of storage. They act exactly as the standard propellers whilst in flight, but when it come to storage, you simply fold the propellers back to decrease risk of damage. This is a small instruction guide to help with the construction of these propellers.

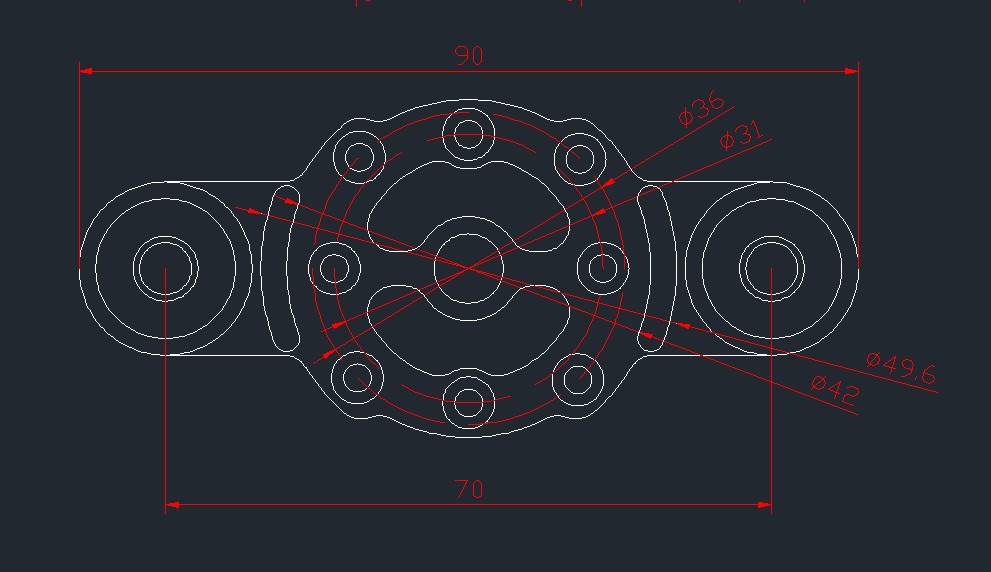

|Model||Length||Weight（g）||Pitch||Center distance size||Mounting hole size|
|2280||558.8||22||76||8.0 inch||Φ4/ Φ6||2- Φ3/15mm, 2- Φ3/18mm, 2- Φ3/22mm|
|2380||584.2||23||78||8.0 inch||Φ4/ Φ6||2- Φ3/15mm, 2- Φ3/18mm, 2- Φ3/22mm|
|2680||660.4||26||150||8.0 inch||Φ3/ Φ8||4- Φ3/31mm, 4- Φ3/36mm|
|2880||711.2||28||164||8.0 inch||Φ3/ Φ8||4- Φ3/31mm, 4- Φ3/36mm|
|3080||762.00||30||198||8.0 inch||Φ3/ Φ8||4- Φ3/31mm, 4- Φ3/36mm|
