Hybrid Power Drone with High Payload and Duration



Hybrid Power Drone with High Payload and Duration

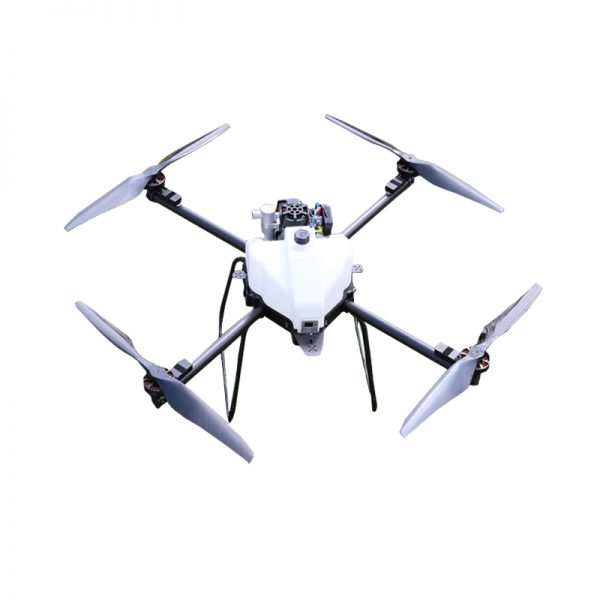

Hybrid Power Drone with High Payload and Duration is an quadrotor that can hover up to 180 minutes at 3 kg payload, which is over three times the endurance of a drone powered solely by lithium battery. The drone consists of an optimized carbon fiber reinforced plastics  fuselage and a hybrid power system  and the high power density electric generator and lithium batteries.

Flight Parameters
Standard take-off weight: up to 18.5kg
(including load 2.5KG+4.9KG gasoline-1.2KG backup battery (6S4000MAH*2)+1KG flight control system)
Empty weight: 8.9KG
Axis distance: 1260mm
Working size (without propeller): 980mm*980mm*500mm (length*width*height)
Working size (including propeller): 1650mm*1650mm*500mm (length * width * height)
Folding size (without propeller): 1280mm*540mm*500mm (length*width*height)
Number of GPS installation positions: 3
Hanging installation size:
Front: width 80mm, interval 10mm X4 M4
Center plate: width 160mm, interval 10mm X13 M4
Backup battery: 12S 4000MAH
Hovering Time*: No load: 280 minutes (additional fuel tank)
Load: 180 minutes (with 3KGS payload)
Max Operating Speed: 8m/s.
Max Flying Speed: 12m/s.
Max Altitude: less than 1000m
Recommended Operating Temperature: -20 to 50°C
Remote Receiver T12
Fight Control :A3
Operating Frequency: 2.400-2.483 GHz
Fuel tank Volume: 6.5L
Hybrid Electric Power System
Rated voltage: MIX 44.4V MAX 48.5V 12S
Power: Continuous power: 1900W Maximum power: 2400W
Weight: 3.6kg
Working fuel consumption: 2.15L/hour
Fuel ratio: 25:1 (95# gasoline, FD grade 2T engine oil)
Working temperature: -20~50 degrees Celsius
Start-up mode: one-key self-start
