Nimbus VTOL V2 PNP Aircraft for Mapping and Survey EPO material

Availability:

Out of stock


$2,477.00

Out of stock

Compare

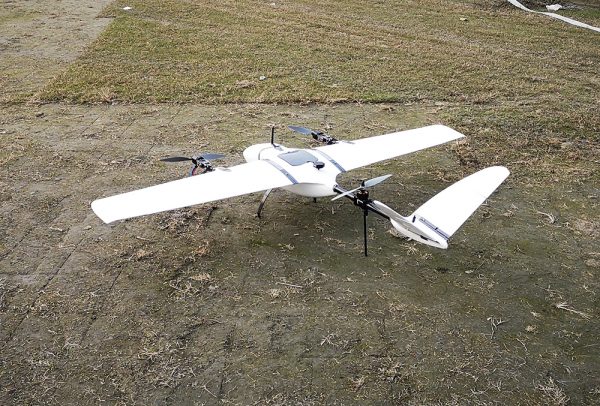

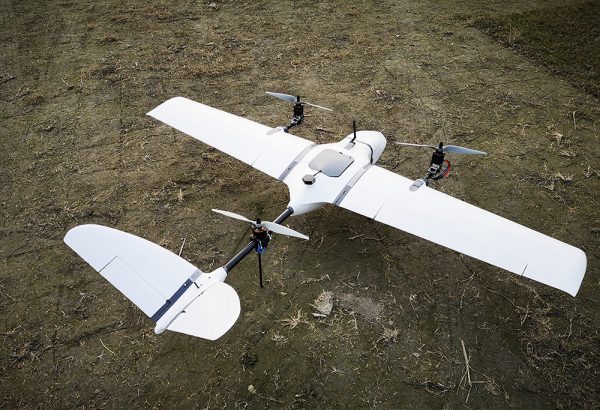

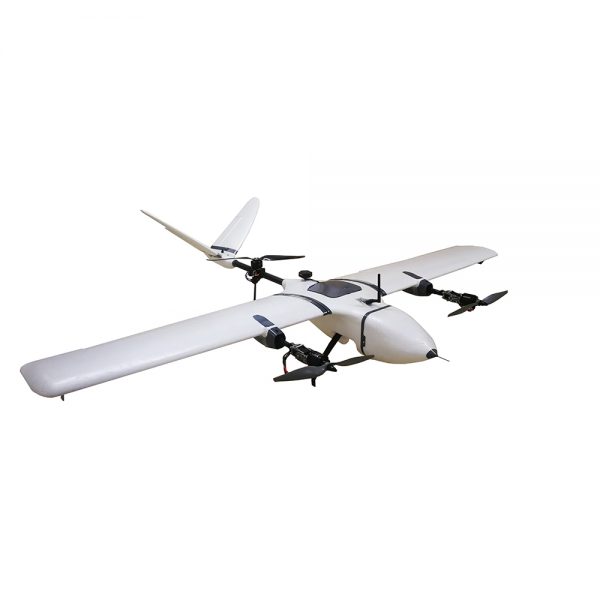

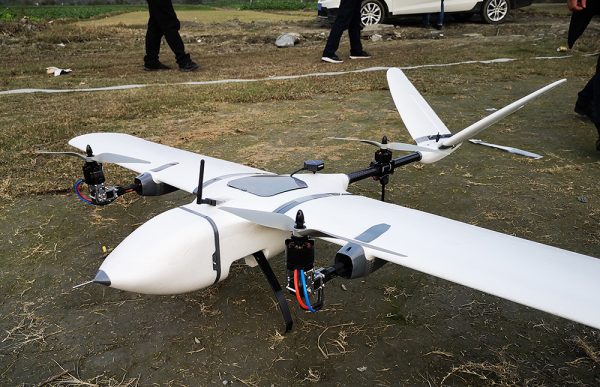

Nimbus VTOL V2  PNP Aircraft for Mapping and Survey

Nimbus VTOL is a versatile platform with a long endurance and large payload capacity. Its tilt-rotor vertical take-off on landing (VTOL) design allows it to autonomously take-off and land in an area as small as 4m x 4m, while carrying up to 1000g of payload for up to 80 minutes. Using large front-tilting high-speed servos the Nimbus VTOL can hover like a multi-rotor more steadily and take-off and land in very heavy wind. The servos will even tilt to a certain level to compensate for wind, which keeps the plane steadier during take-offs and landings. Max flying speed for Nimbus is 35m/s, though average speed is around 14m/s (stall speed around 11m/s). Of course, Mission Control is fully supported with Nimbus for easy, fully autonomous surveying with precise camera triggering based on mission parameters. Nimbus’ payload capabilities are very adaptable, thanks to its 1000g max capacity and large available mounting volume.

Specifications:

Version: Nimbus VTOL V2 EPO material
Wingspan: 1800mm
Length: 1300mm
Suggested Take-off Weight: 6kg
Suggested Payload: 800g
Total Weight: 3.36kg(no battery)
Max. Flying Height: 3500m
Max. Flying Speed: 35m/s
Average Speed: 15m/s to 16m/s
Stall Speed: 10m/s to 11m/s
Max Wind Resistance: ≤10.7m/s
Mapping Accuracy: Centimeter
Suggested Battery: 6S 12000mah Lipo Battery;

Your Purchase Includes:

PNP(WhiteVersion):
1x Nimbus VTOL V2 White Version
2x Tilt Servo
2x Tilt Motor
1x Tail Motor
1x Tail ESC
2x Tilt ESC
1x (pair) 13 inch Wooden Propellers
1x 17 inch Matt Propeller
1x Px4 Air Speedometer
1x ASSAN 8A UBEC
1x DK32 16-Channel Radio Controller
1x Pixhawk 2.1 Standard Set with Here GNSS

Nimbus VTOL Nimbus VTOL Nimbus VTOL

SKU: 5487FB8/10-113 Categories: , ,
Weight 10 kg
Dimensions 130 × 40 × 60 cm
