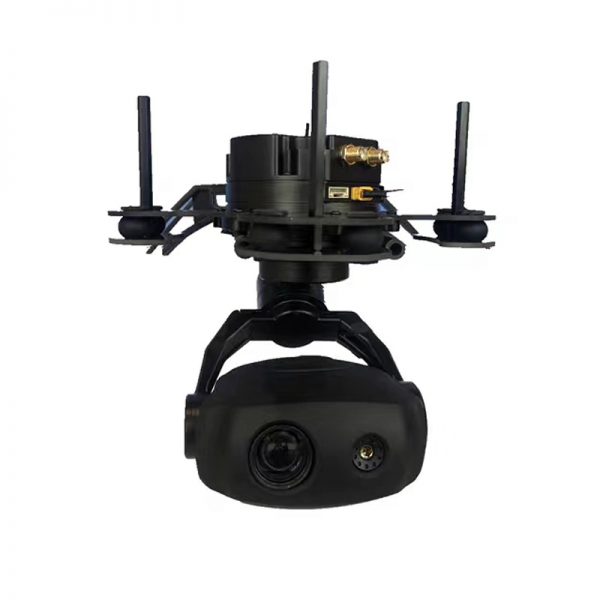

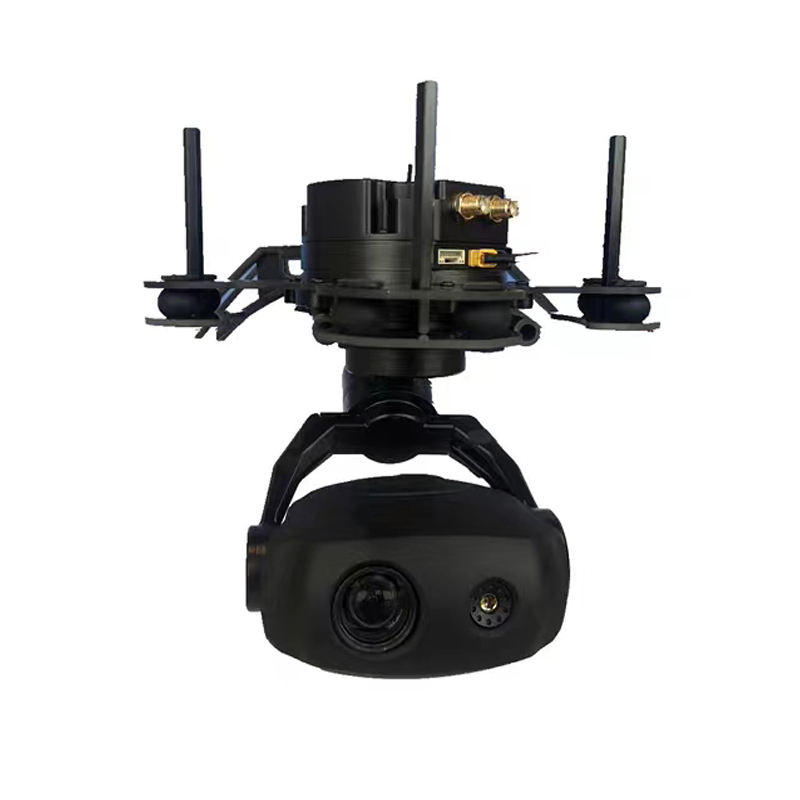

10X Optical Zoom Thermal Camera 320×240 IR with 3-axis Gimbal for multi-rotor UAV



10X Optical Zoom Thermal Camera 320×240 IR with 3-axis Gimbal for multi-rotor UAV

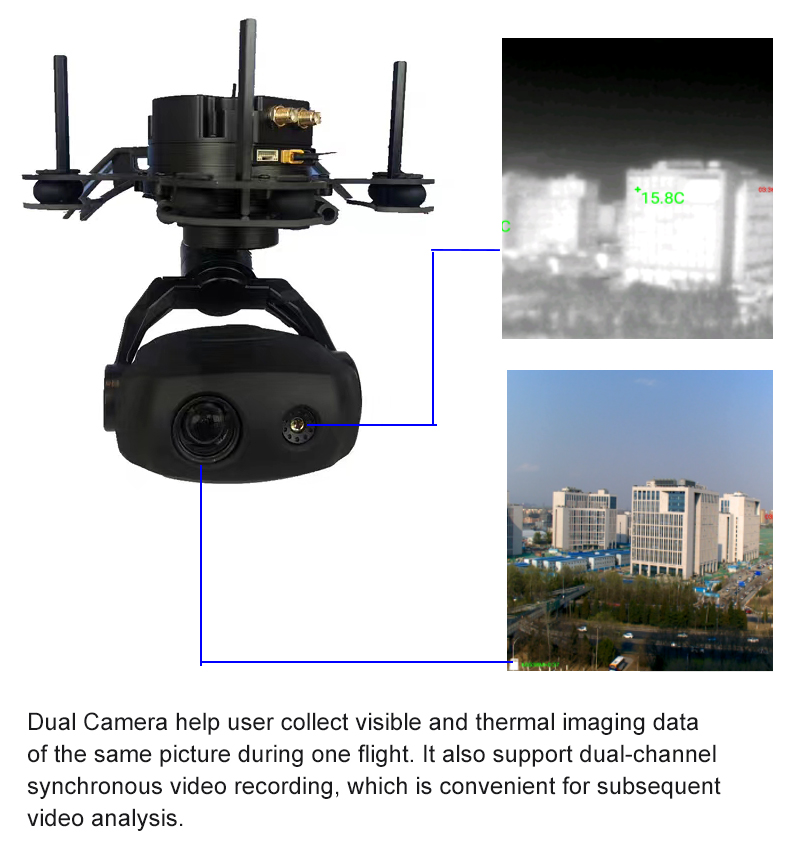

10X Optical Zoom Thermal Camera TFIP10T3 is a zoom dual-light integrated system that integrates a 10x optical zoom camera, a thermal imager, a wireless image data transmission module, and a high-precision professional three-axis stabilization gimbal. The gimbal uses a high-precision encoder FOC control scheme with stable High-performance, small size, light weight, and strong features; visible light camera uses a low-illumination SENSOR with 4 million effective pixels; thermal imaging uses a 320×240 resolution detector with a baffle design. The system supports local TF storage, dual-channel simultaneous recording, pseudo-color switching, and temperature measurement. The ground station supports mouse control and multiple picture-in-picture modes. The sky side only needs power supply and connects the antenna. Note: The product includes ground receiving terminal and ground station software.

Voltage  3S or 6S(DC12V-26V)
Power Dynamic 12W
Characteristics Roll -45°~ +135°
Pitch -120~+120°
Yaw -150°~+150°
Pitch & Roll Accuracy ±0.02°
Yaw accuracy ±0.03°
One-button back to center One-button back to original position
Adjustable Gimbal Control speed Support angle and speed control

When the gimbal rotates, speed adaptation is performed based on the current speed mode and the multiple of the visible light camera.

TF Card Support 16G to 128G class10 TF card
Control method Support UART control and SBUS control

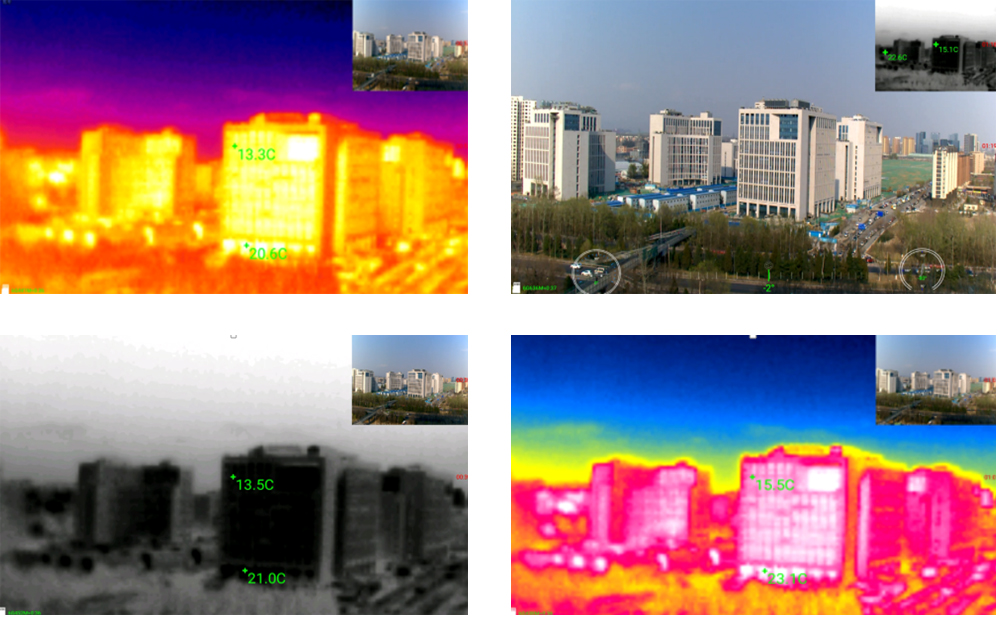

  Features HDMI picture-in-picture switching, pseudo color switching, temperature measurement
White light camera

Machine parameters

CMOS size 1/3 inch 4MP CMOS sensor
optical zoom 10x high-definition optical zoom lens, f=4.9 to 49mm
Focus time Real-time fast focusing function, focusing time <1S
Video output HDMI 1080P 60FPS, video stream local TF storage
Field of view (FOV) D : WIDE 66.6º±5% TELE 7.2º±5%

H : WIDE 53.2º±5% TELE 5.3º±5%

V : WIDE 39.8º±5%   TELE 4.2º±5%

Support mode 1080P 60fps
Thermal Imaging Resolution 320*240 pixel
Cell spacing 12μm
Types of Uncooled focal plane microbolometer
Wavelength range 8~14μm
Thermal sensitivity (NETD) ≤65mk@30℃
Contrast, brightness Adjustable
Angle of view 6.5mm lens, angle: 34.4 x 25.8
Measurement function Center point, highest temperature and lowest temperature display temperature function;

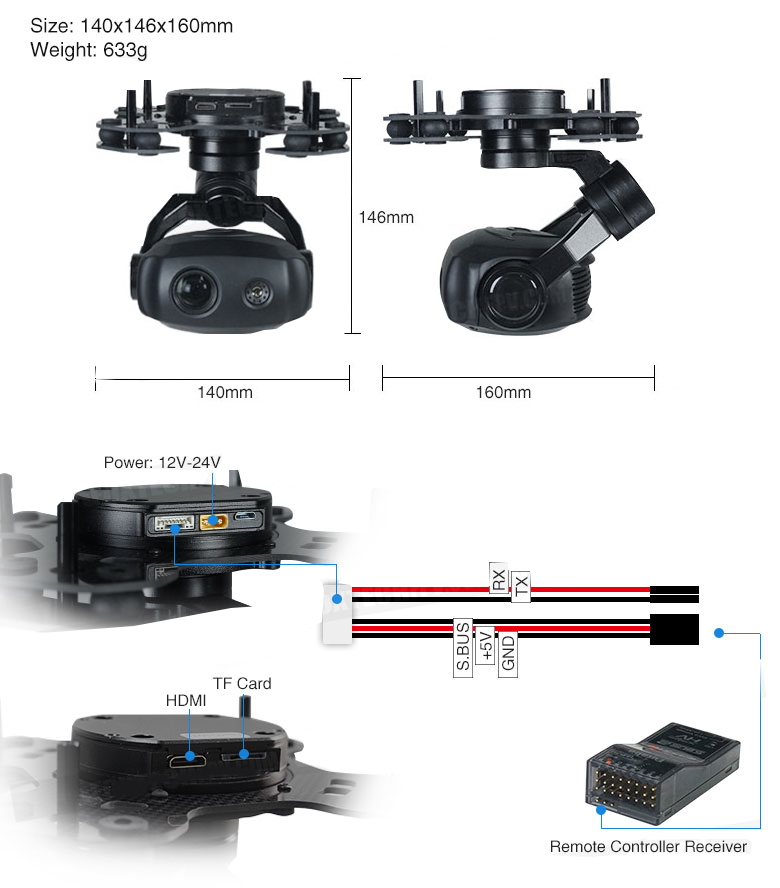

Overall size 108mm*150mm*180mm
working environment -10℃ to +45℃ / 20% to 80% RH
