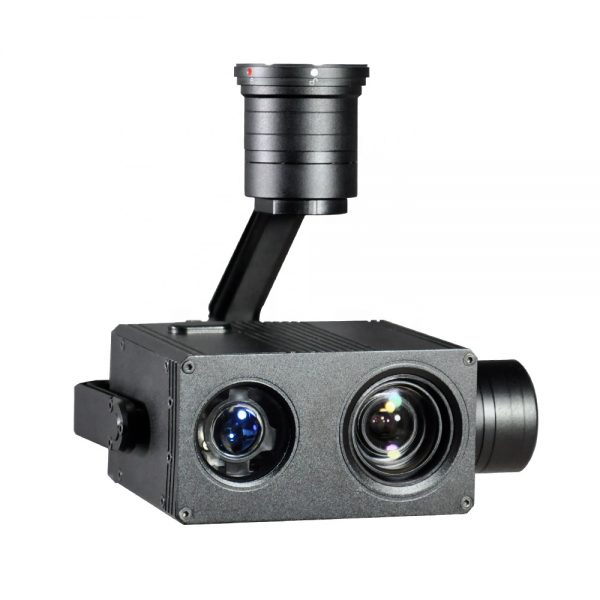

10x Zoom Gimbal camera IR Laser Night Vision Object Tracking payload for DJI UAV drone

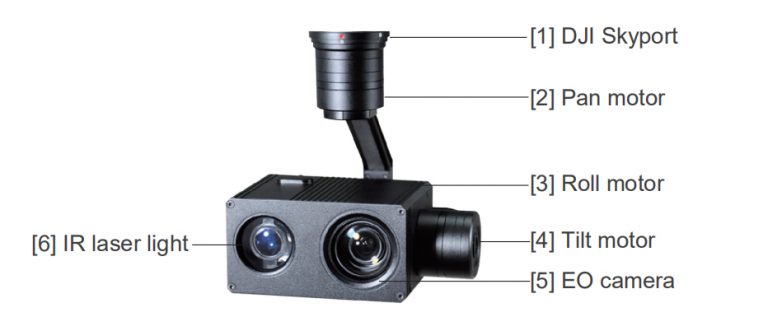

10x Zoom Gimbal camera Z10TL is a high-precision professional 3-axis gimbal which features high stability, small size, light weight and low power consumption. The 3-axis gimbal based on FOC motor control technology, adopts high-precision encoder in each motor. It can be used on DJI drones M200 / M210 / M210RTK. Controlled by APP DJI PILOT it can fullfill many powerful functions, such as: photos or videos with 10 times optical

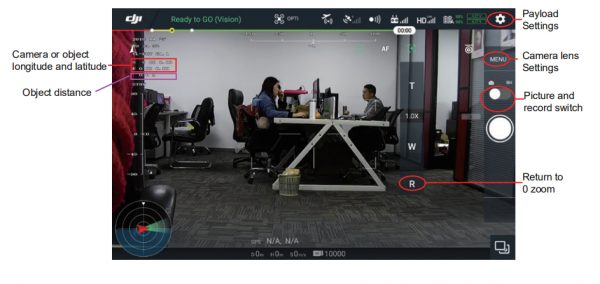

zoom, object tracking, IR laser night vision and so on. The speed of Z10TL gimbal is adjustable, LOW speed mode for tele end, the control will be more accurate; Fast mode for wide end, which makes the gimbal control sensitive and quick. Also the one-key to center function will allow the gimbal return to initial position automatically and rapidly. You can input a degree in APP Payload Setting and get the gimbal attitude angles exactly.

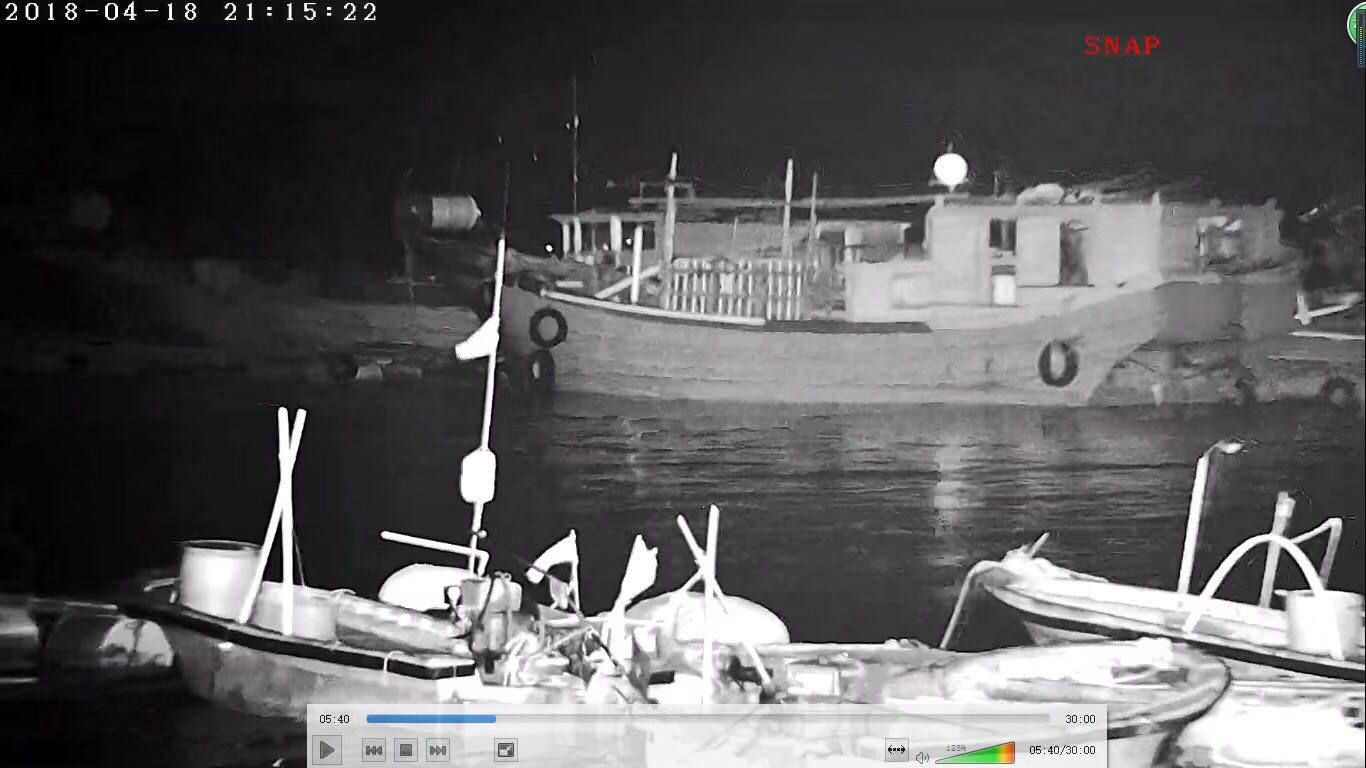

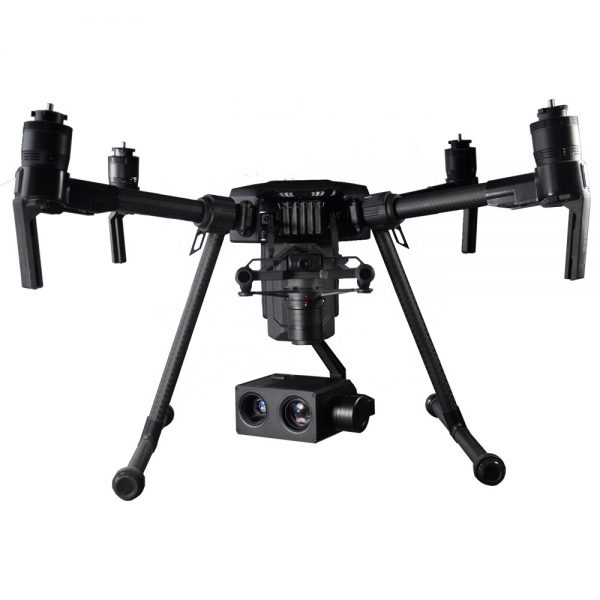

Z10TL is a functional model with 300m IR laser light and 10x optical zoom. It can support you to see details of object in pitch-dark environment while the people in ground could not see it. Engineered for night surveillance, law enforcement, search and rescue…Compatible with DJI Matrice 200/210/210RTK via Skyport.

*Day camera:  – 1/2.8″ CMOS
-10x optical zoom, 2.43MP, 1920*1080
*300m IR laser light
*Object tracking

*N.W.: 554 g

Gimbal camera drone

Specifications
Hardware Parameter
Working voltage
12V

Working environment temp.

-40℃ ~ +60℃
Output
Skyport
Local-storage
SD card (Up to 128G, class 10, FAT32 or ex FAT format)
Control method
DJI Pilot
Gimbal Spec
Pitch/Tilt
±90°
Roll
±85°
Yaw/Pan
±360°
Vibration angle
Pitch/Roll: ±0.02°, Yaw:±0.03°
One-key to center
Camera Spec
Imager Sensor
1/2.8″ CMOS
Picture quality
Full HD 1080 (1920*1080)
Effective pixel
2.43MP
Lens optical zoom
10x, F=4.7~47mm
 Object Tracking
Update rate of deviation pixel
50Hz
Output delay of deviation pixel
<10ms
Minimum object size
16*16 pixel
Maximum object size
128*128 pixel
Tracking speed
±32 pixel/frame
Object memory time
100 frames (4s)
Light Supplement
Effective range
300 meters
Illumination angle
power zoom synchronously, 70°~2.0° adjustable
N.W.
554g



SKU: Z10TL/29-30 Categories: , Tag:
Weight 2.5 kg
Dimensions 36 × 25 × 20 cm
