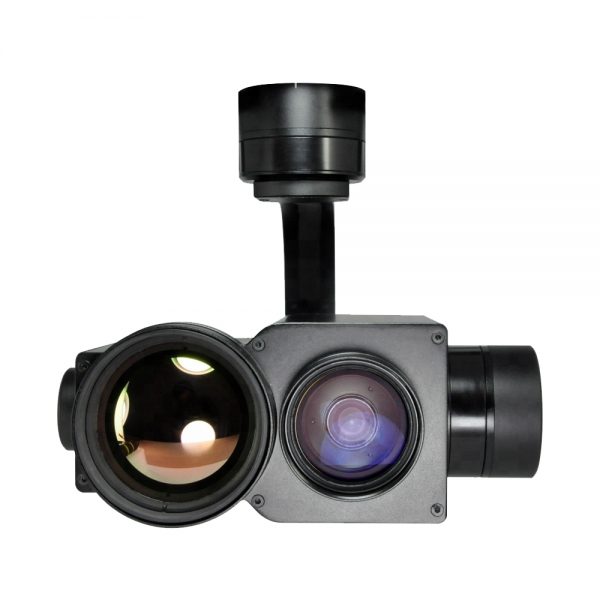

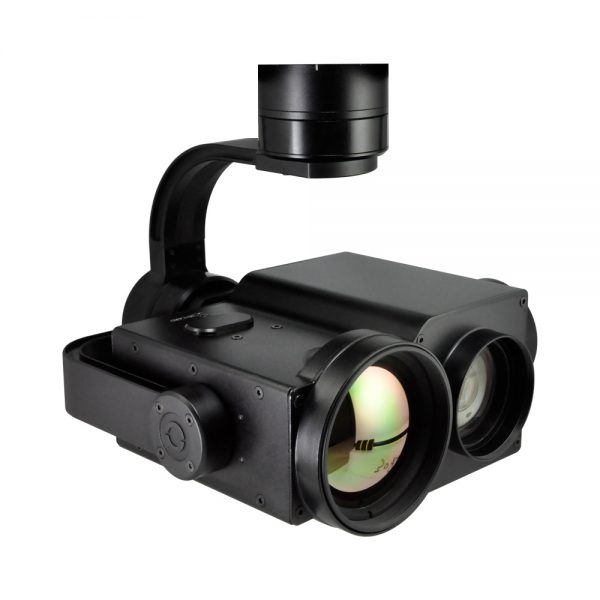

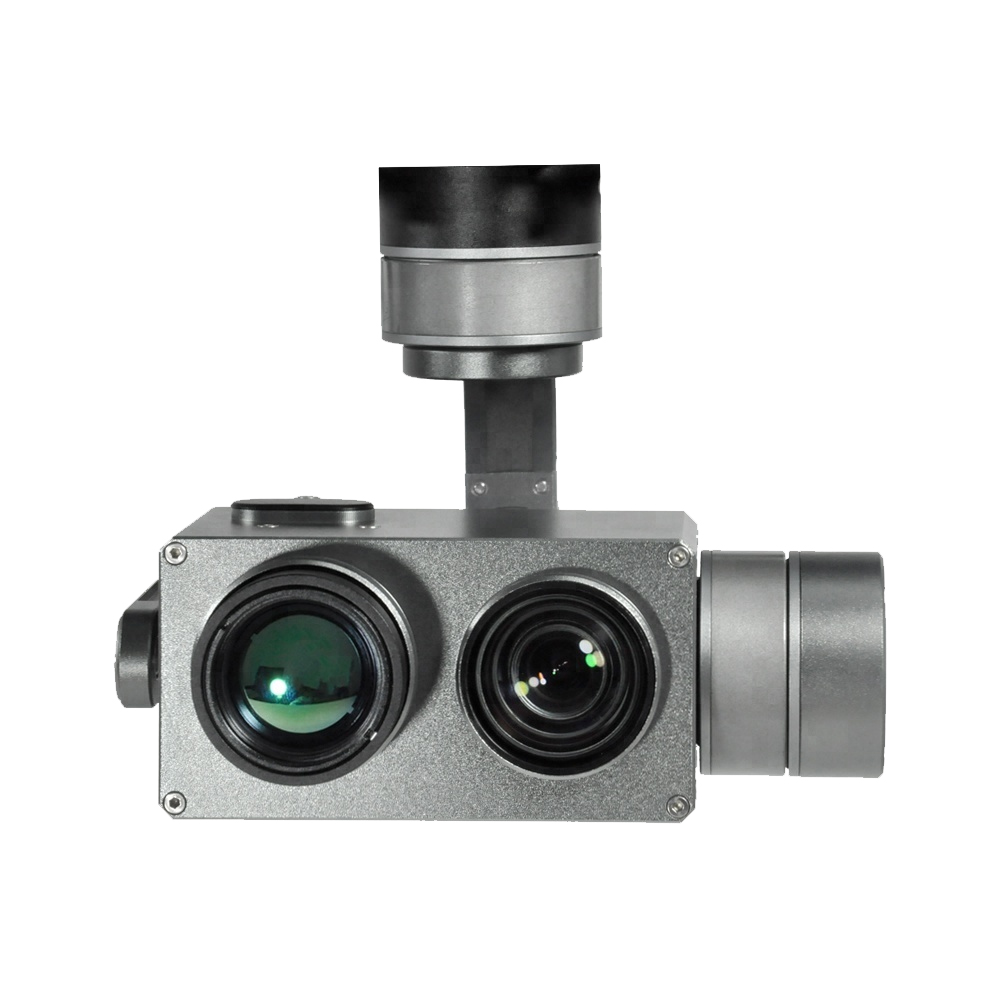

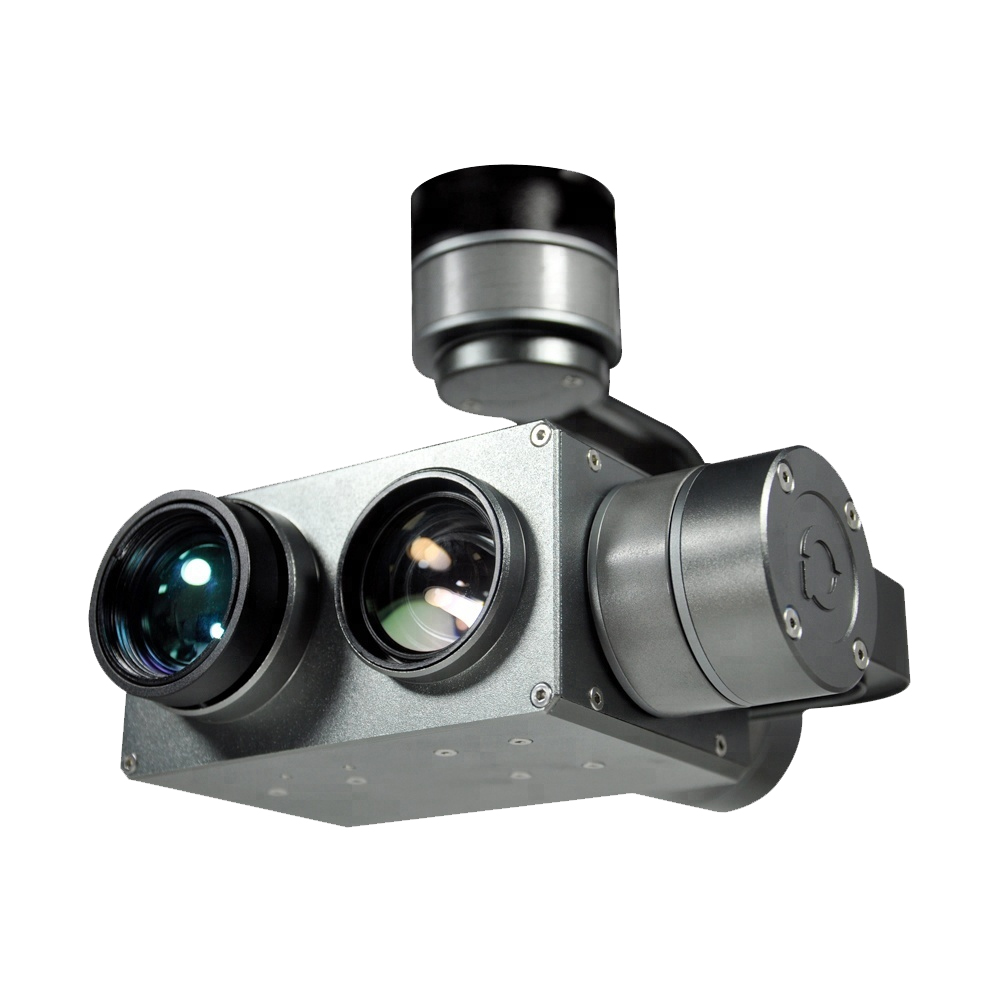

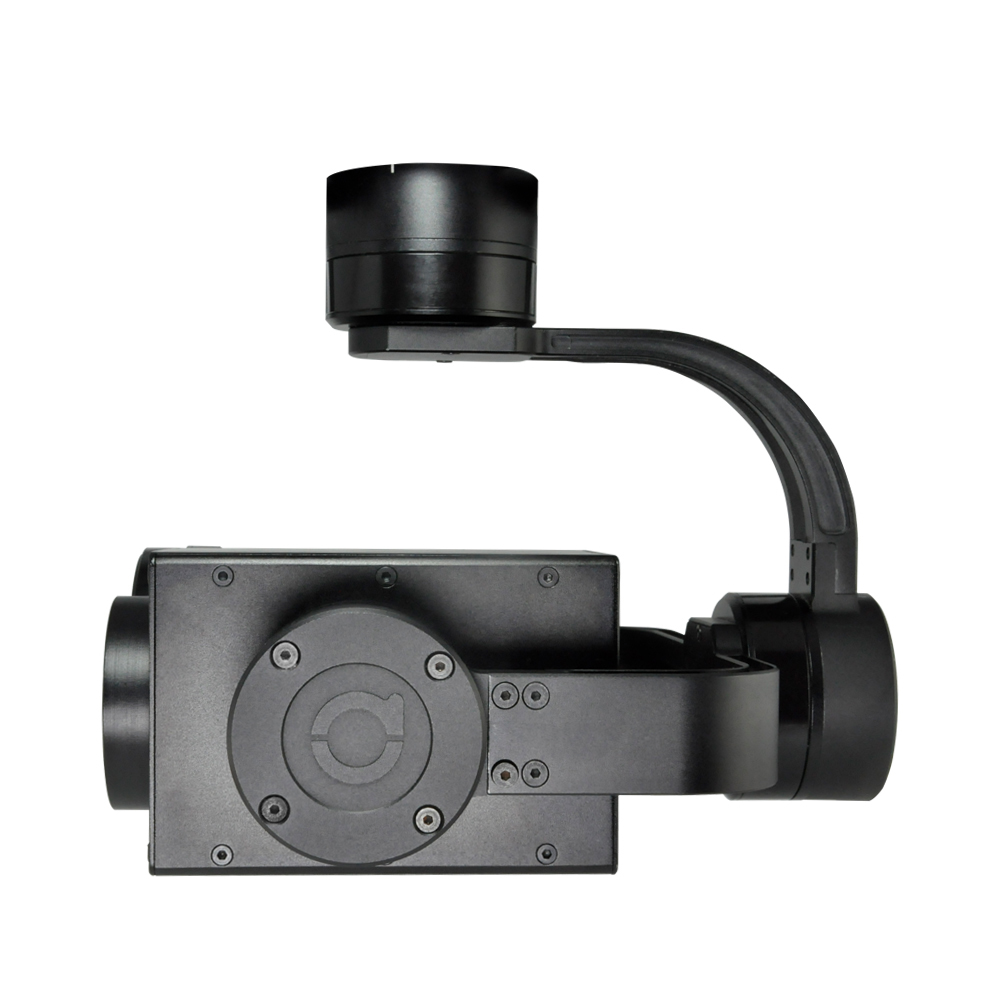

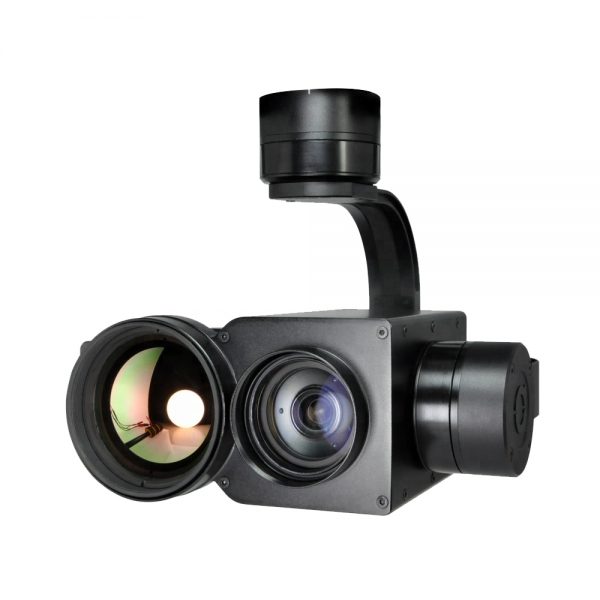

Infrared thermal image gimbal stabilizer Drone camera with 30X room Unmanned Aircraft

Infrared thermal image Z30TIR gimbal camera features an 30x optical zoom lens. It’s powered by SONY 1/2.8″ “Exmor R”, 2.13 mega effective pixels, fast auto-focus speed, 1080p HD image quality, as well as visible light, thermal imaging tracking. It is compact size, support PWM, S. BUS and TTL. All parameters have been perfectly set, you just need to install the gimbal camera to UAV, then ready to fly.

Advantage

* Highly competitive cost
* DJI’s strategic partner

* Leading in the field for UAV payload of advanced technology.

* Certified by CE/ROHS authoritative institution.

Product Name:
UAV gimbals camera
Model
Z30TIR
Image sensor:
SONY 1/2.8″ “Exmor R” CMOS
Picture quality
Full HD 1080 (1920*1080)
Lens:
30x, F=4.3~129mm
Thermal imager:
640×480
Thermal lens size
50mm
Min illumination
Color 0.01lux(@)F1.6
Effective pixel
2.13MP
Digital zoom
12x (360x with optical zoom)
Working voltage:
12V(4s~6s)
Output:
Micro HDMI 1080P/ IP / SDI
Local storage:
SD card up to 128G
Pitch/Tilt:
±90°
Roll:
±85°
Yaw/Pan:
±170° / ±360°*N (IP / SDI output)
Vibration angle:
Pitch/Roll: ±0.01°, Yaw:±0.01°

Infrared thermal image

SKU: 5487FB8/16-37 Categories: ,
Weight 3.5 kg

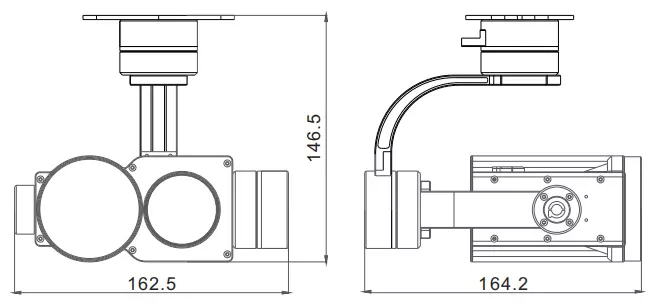

Dimensions 35 × 26 × 25 cm

Technical Specifications

Product Name:
UAV gimbals camera
Model
Z30TIR
Image sensor:
SONY 1/2.8″ “Exmor R” CMOS
Picture quality
Full HD 1080 (1920*1080)
Lens:
30x, F=4.3~129mm
Thermal imager:
640×480
Thermal lens size
50mm
Min illumination
Color 0.01lux(@)F1.6
Effective pixel
2.13MP
Digital zoom
12x (360x with optical zoom)
Working voltage:
12V(4s~6s)
Output:
Micro HDMI 1080P/ IP / SDI
Local storage:
SD card up to 128G
Pitch/Tilt:
±90°
Roll:
±85°
Yaw/Pan:
±170° / ±360°*N (IP / SDI output)
Vibration angle:
Pitch/Roll: ±0.01°, Yaw:±0.01°
