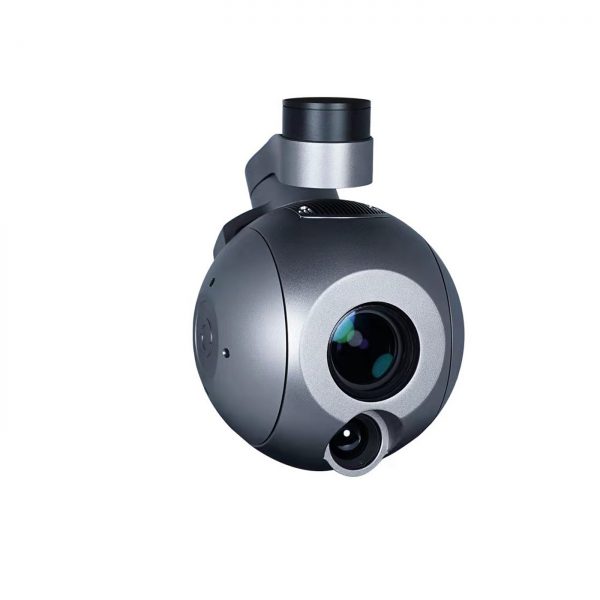

40X zoom TIR Dual-Sensor AI Tracking Camera



40X zoom TIR Dual-Sensor AI Tracking Camera

FDC40 40X zoom use stabilized, highly optimized 3-axis gimbal .integrated with AI object identifcation and target tracking module, Powered by SONY 1/2.8″ IMX462LQR CMOS module, 2.13 mega effective pixel, combined with 40x advanced optical zoom technology, FDC40 drone camera Integrated French ULIS high-precision uncooled long wave (8μm ~14μm ) 19mm thermal image sensor with 640*512 detector pixel, A40T can record and transmit thermal image and visible images at the same time in PIP format. FDC40 can load on multi-rotor dronr and fixed-wing drone for many drone application such as drone inspection, surveillance, monitor, etc.


1.Visible Light and Thermal Imager Dual Sensors Object Tracking

2.Multi Output Methods Optional

Multi Control Methods

3.Control box signal interfaces

4.Compatible with port






Hardware Parameter
Working voltage 12V
Input voltage 3S ~ 6S
Output voltage 5V (connect with PWM)
Dynamic current 1350~1600mA @ 12V
Idle current 1350mA @ 12V
Working environment temp. -20℃ ~ +60℃
Output micro HDMI(1080P30/60fps)/IP (1080P/720p 30/60fps )
Local-storage SD card (Up to 128G,class 10, FAT32 or ex FAT format)
Control method PWM  / SBUS / TTL / TCP (IP output version)
Gimbal Spec
Mechanical Range Pitch/Tilt: -55°~130°,    Roll: ±45°,     Yaw/Pan: ±300° / ±360°*N (IP/SDI output version)
Controllable Range Pitch/Tilt: -45°~90°,   Yaw/Pan: ±290° / ±360°*N (IP/SDI output version)
Vibration angle Pitch/Roll: ±0.02°, Yaw:±0.02°
One-key to center
Camera Spec
Imager Sensor 1/2.8″ Sony IMX462LQR CMOS Sensor
Picture quality Full HD 1080 (1920*1080)
Effective pixel 2.13MP
Photo storage format JPG(1920*1080 / 1280*720)
Video storage format MP4  (1080P/720P 25fps/30fps)
Lens optical zoom 40x, F=4.25~170mm
Digital zoom Off / MAX x2 ~ x32
Min object distance 0.1 / 1.5 / 3.0 / 5.0 / 10.0 m
Angle of View (D, H, V) Wide: 73.80° / 66.35° / 9.98°
Tele: 2.16° / 1.90° / 1.11°
AF Mode Auto/One Push/Manual
Iris Close ~ F1.6
Shutter speed 1/1 ~ 1/30,000 sec
Sync system Internal
S/N ratio more than 50dB
Min illumination Color(1/30s, 79.5dB) : 0.01 lux , BW(1/30s, 79.5dB) : 0.002 lux
Color DSS(1/1s, 79.5dB) : 0.001 lux , BW DSS(1/1s, 79.5dB) : 0.0002 lux
Exposure control Auto / Iris. Priority / Shut. Priority / Manual
Gain Control(AGC) 0 ~ 10 steps
White balance Auto / One Push / Manual / Indoor / Outdoor
Back Light Off / BLC / HLC / WDR
Defog Off / Manual / Auto
Thermal Imager Spec
Lens size 19mm
Coating Film DLC
Horizontal FOV 22.9°
Vertical FOV 18.4°
Diagonal FOV 29°
Detective Distance (Man: 1.8×0.5m) 792 meters
Recognize Distance (Man: 1.8×0.5m) 198 meters
Verified Distance (Man: 1.8×0.5m) 99 meters
Detective Distance (Car: 4.2×1.8m) 2428 meters
Recognize Distance (Car: 4.2×1.8m) 607 meters
Verified Distance (Car: 4.2×1.8m) 303 meters
Working mode Uncooled long wave (8μm~14μm) thermal imager
Detector pixel 640*512
Pixel size 12μm
Focusing method Athermal prime lens
NETD ≤50mK (@25℃)
Color palette White, iron red, pseudo color
Digital zoom 1x ~ 8x
Sync correct time Yes
EO/IR Camera Object Tracking& EO camera AI Recognition Performance
Update rate of deviation pixel 30Hz
Output delay of deviation pixel <30ms
Minimum object contrast 5%
Minimum object size 16*16 pixel
Maximum object size 256*256 pixel
Tracking speed >32 pixel/frame
Object memory time 100 frames (4s)
Targets type Car and human
Simultaneous detection quantity ≥ 10 targets
Min contrast ratio 5%
Min target size 5×5 pixel
Car detection rate ≥85%
False alarm rate ≤10%
Packing Information
N.W. 1212g(Viewport Version)
Product meas. 118*137.3*207.8mm(Standard Version)118*137.3*213.5(Viewport Version)
Accessories 1pc gimbal camera device, screws, copper cylinders, damping balls, damping boards / Hight quality plastic box with foam cushion
G.W. 2457g
Package meas. 360*300*250mm
