E616S Spraying Drone crop sprayer for Agricultural 6 Axis 16L 16kg UAV

E616S Spraying Drone has ability to cover varied and uneven terrain makes it as the perfect precision spraying tool. Crop drone drastically reduces the time and cost of manual spraying and hiring crop dusters. Our drones are ready to be deployed as agricultural crop.
The combination of speed and power means that an area of 4,000-6,000 m² can be covered in just 10 minutes, or 40 to 60 times faster than manual spraying.  Although we have seen  before, the electric Drone is reportedly able to cover much more ground per charge.  The interest in drones for agricultural crop sprayer continues to grow as does the corresponding options for UAV platforms increases.

E616S is the upgrade version of the popular E616 6 axis 16L UAV agriculture drone. The main difference between the two is the folding parts. As all we know, the folding parts on those agriculture drones are really important. The new folding parts are injection-molded and the structure is more stable and durable.

The unique C-type arm fixing clip design can fix the arm with the fixing clip after the arm is folded, which avoids the problems of swinging and sagging of the arm during handling. The arm of the drone is 35mm in outer diameter, it did not come with motor mount, you can use the power combo suitable for 35mm arms for it.

Specifications:

Dignotal Wheelbase: 1630mm
Folding Size: 1000 x 950 x 600mm
Tank Capacity: 16L
Spray Width: 3-5m
Weight: 7.5kg (Spraying system included)
Max Takeoff Weight: 36kg

Power combo specifications:
Motor: 8318 100kv
Propeller: 30×8.0 inch
ESC: 80A FOC
Voltage Input: 12S
Working pulse width:1120-1920us
Max Thrust: 15kg
Suggest thrust: 5-7kg

Note:
1. Frame: Frame, arm, Landing gear, water tank, built-in distribution board, canopy
2.Spray system: pressure nozzle x 4, Pump x 1, 18mm water pipe 1 meter, 6mm water pipe 4 meters, buck type governor, pneumatic connector
3. All the above parts need to be self-assembled, and the assembler needs some experience of model airplane.

1. Frame KIT Package Included:

 E616S 6 Axis 16L UAV Drone Frame x 1
Spraying system x 1

2.KIT + 8318 motor Included:

E616S Frame x 1
Spaying system x 1
8318 100KV motor x 6
80A FOC ESC x 6
30×8.0 inches folding propeller x 6

3.KIT+DJI E5000 motor Included:

 E616S Frame x 1
Spaying system x 1
DJI E5000 Pro Power Combo CW x 3
DJI E5000 Pro Power Combo CCW x 3

crop sprayer
Reserved equipment expansion port
There are several equipement expansion ports reserved at the side and botton of the frame. It is convenient to install RTK, water pump, radar and other extended equipment under the premise of waterproof protection.
Reinforced Power Plug
The main power cable exits from the side,and the battery interface is fixed on the side of the landing skid to avoid obstruction of the plug when replacing the battery. The plug connector is more secure and stronger.
Cool taillights, Quick Tuning
Unique hexagon tail light design, with the flight controlller indicator built-in installation, waterproor and concise. There is USB data dable interface in the button,Settings can be adjusted without removing the canopy, more convenient.
Anti-collision Extension Nozzle
Lengthen the nozzle, and connect it with soft silicone, which can effectively prevent the nozzel from breaking when subjected to external force.
The new distribution board adopts a separate and hidden design to isolate the power supply and signals, optimize the internal electromagnetic environment of the aircraft, and provide a larger space for flight control installation, which makes the wiring more concise.

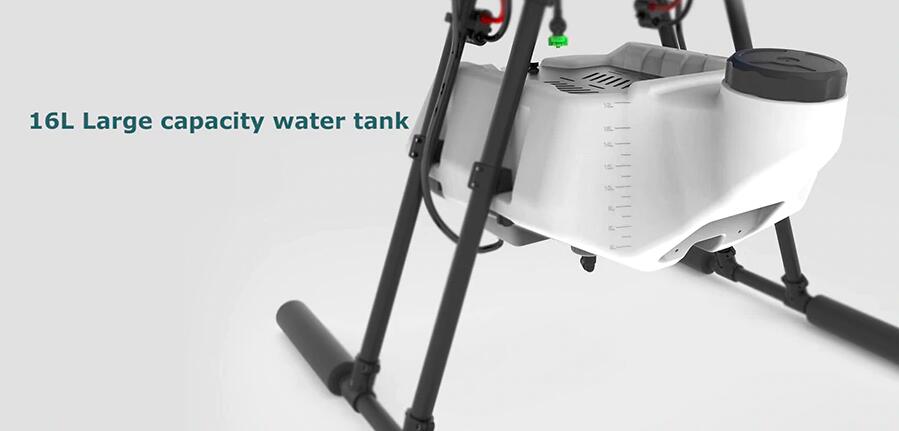

16L High Capacity Water Tank
Specially designed for bigger spaying aera. For the 16L water tank, it has big size liquid inlet, increase the efficiency.
Waterproof Body
The body is streamlined and full of science and technology.It is overall waterproof, can be washed directly with water.
Spraying Drone
Weight 100 kg
Dimensions 75 × 60 × 50 cm
Specifications:
Frame Parameter:
Wheelbase: 1630mm
Folding size: 1000*950*600mm
Water tank capacity: 16L
Effective spray width: 3-5m
Frame weight: 7.5KGS (with spray system)
Maximum take off weight: 36KGS
