camera gimbal 3-axis thermal imager ir gimbal drone with 4K camera

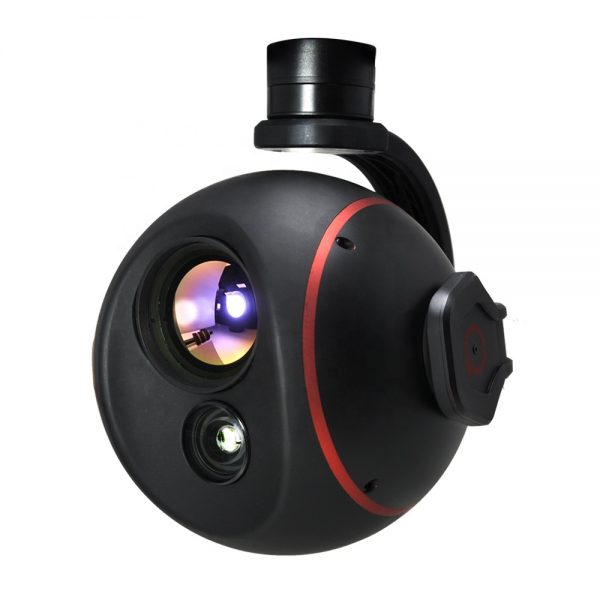

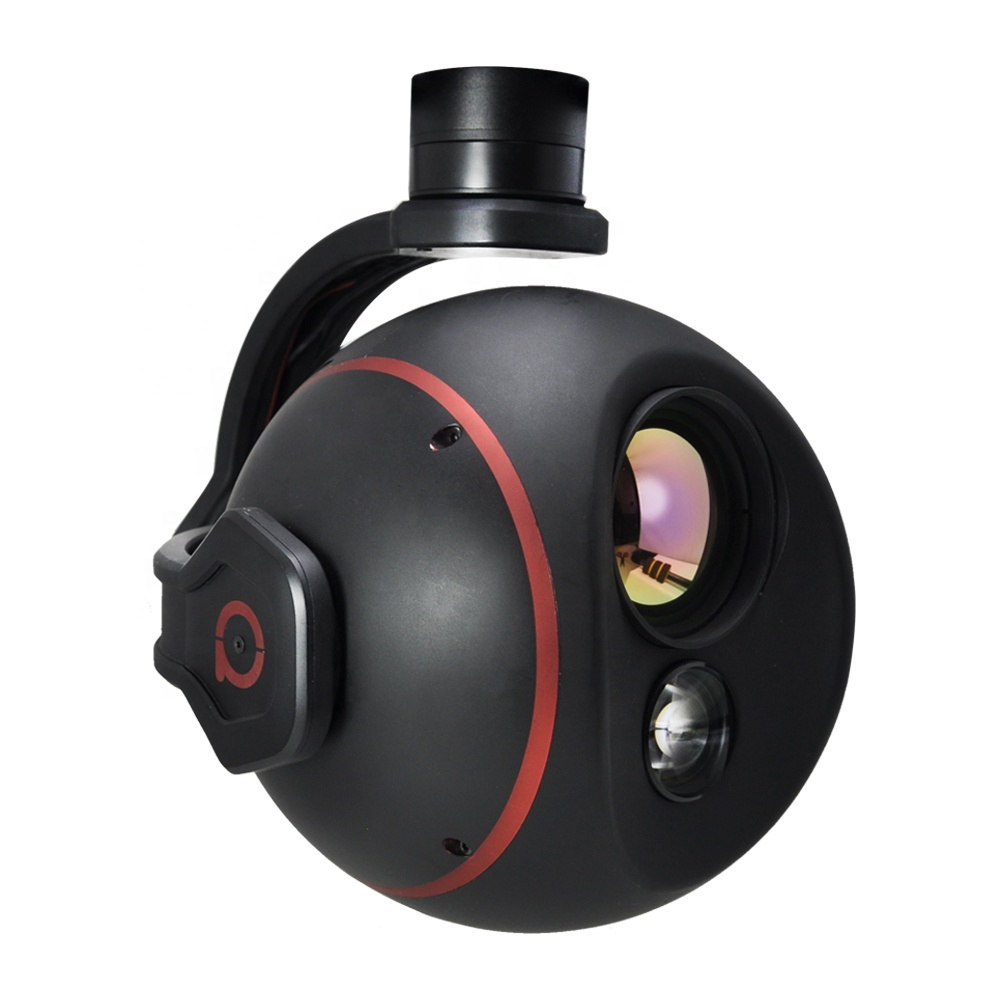

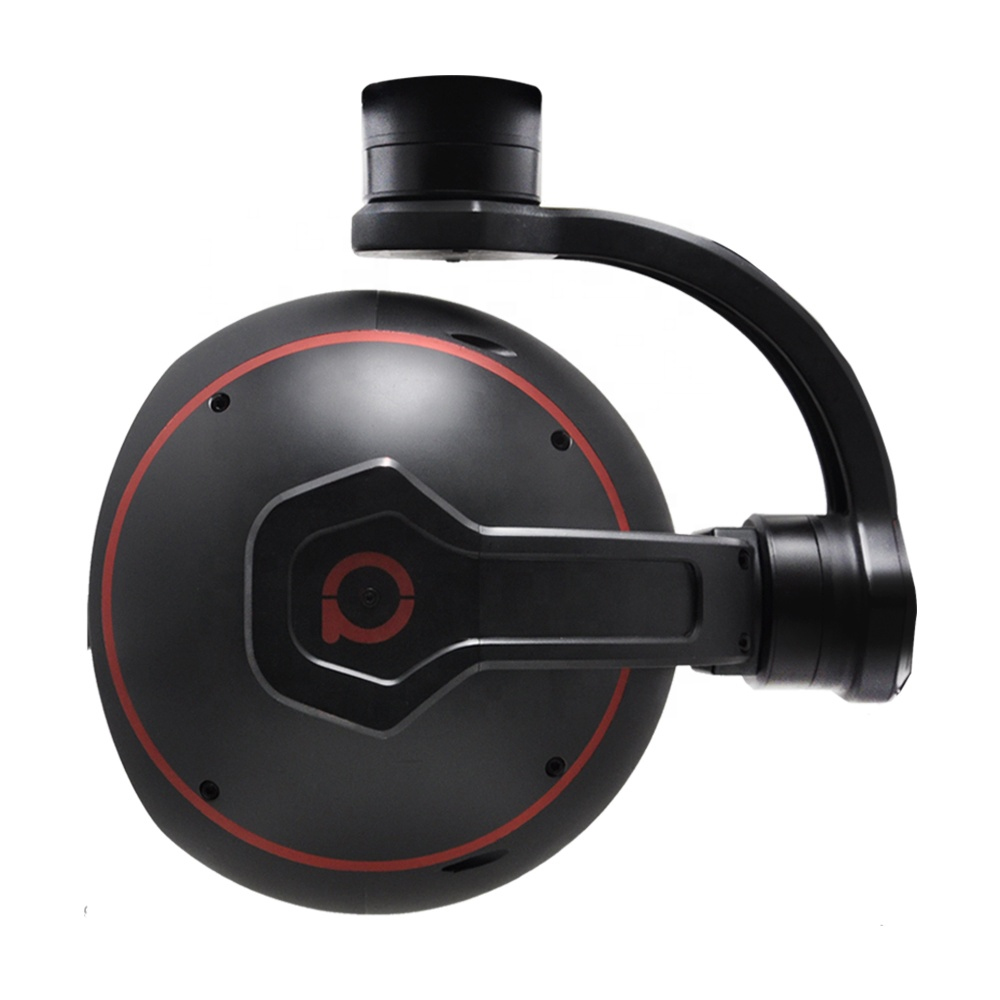

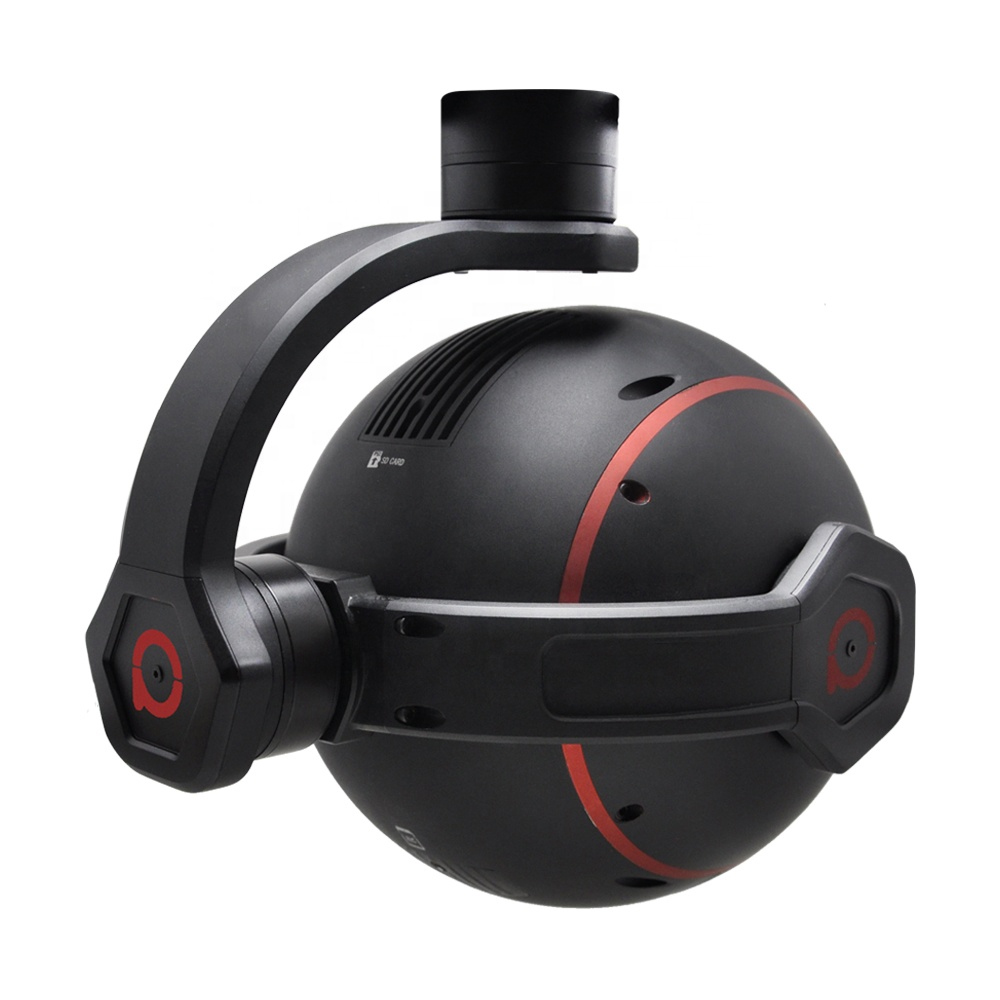

camera gimbal Q40TIR is a powerful dual cameras 3-axis gimbal camera with 25.9MP 4K camera and 640 50mm lens thermal imager. It’s powered by Panasonic 1/2.3″ COMS module, has up to 40x optical zoom. The high-end cameras module and advanced pinpoint anti-vibration system bring you extreme stable high image quality at anytime. Specially  designed for long distance details inspections, research & rescue, surveillance and aerial photography, especially for big UAV. All parameters are have been perfectly set, you just need to install it to UAV, then ready to fly.

Advantage

* Highly competitive cost
* DJI’s strategic partner

* Leading in the field for UAV payload of advanced technology.

* Certified by CE/ROHS authoritative institution.

Product Name:
UAV
Model
Q40TIR
Image sensor:
Panasonic 1/2.3inch CMOS
Lens:
20x optical zoom, F1.8~F3.6(f=4.08~81.6mm)
Thermal imager:
640×480, 50mm lens
640×480, 25mm lens:
16×16″pixel~160×160″pixel
Working voltage:
12V(4s~6s)
Output:
Micro HDMI 1080P/ IP / SDI
Local storage:
SD card up to 128G
Pitch/Tilt:
±90°
Roll:
±85°
Yaw/Pan:
±170° / ±360°*N (IP / SDI output)
Vibration angle:
Pitch/Roll: ±0.01°, Yaw:±0.01°

camera gimbal

SKU: 5487FB8/13-40 Categories: ,
Weight 4 kg
Dimensions 37 × 35 × 25 cm
Product Name:
UAV
Model
Q40TIR
Image sensor:
Panasonic 1/2.3inch CMOS
Lens:
20x optical zoom, F1.8~F3.6(f=4.08~81.6mm)
Thermal imager:
640×480, 50mm lens
640×480, 25mm lens:
16×16″pixel~160×160″pixel
Working voltage:
12V(4s~6s)
Output:
Micro HDMI 1080P/ IP / SDI
Local storage:
SD card up to 128G
Pitch/Tilt:
±90°
Roll:
±85°
Yaw/Pan:
±170° / ±360°*N (IP / SDI output)
Vibration angle:
Pitch/Roll: ±0.01°, Yaw:±0.01°
