Drone hybrid generator Power System for aerial photography planting and mapping UAV long flight time endurance

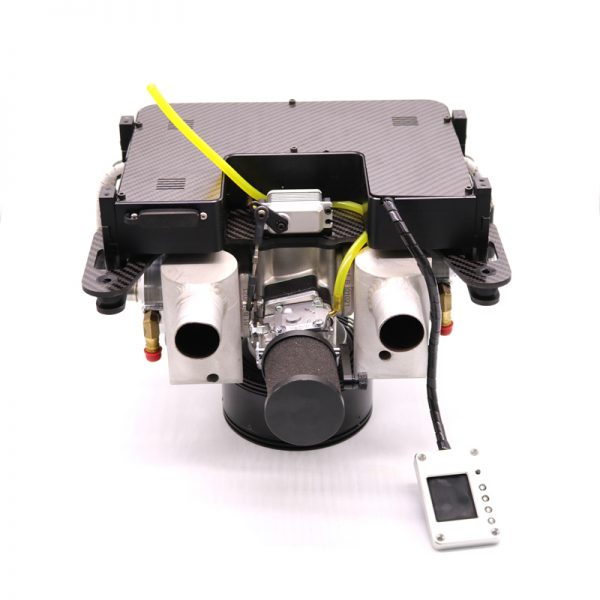

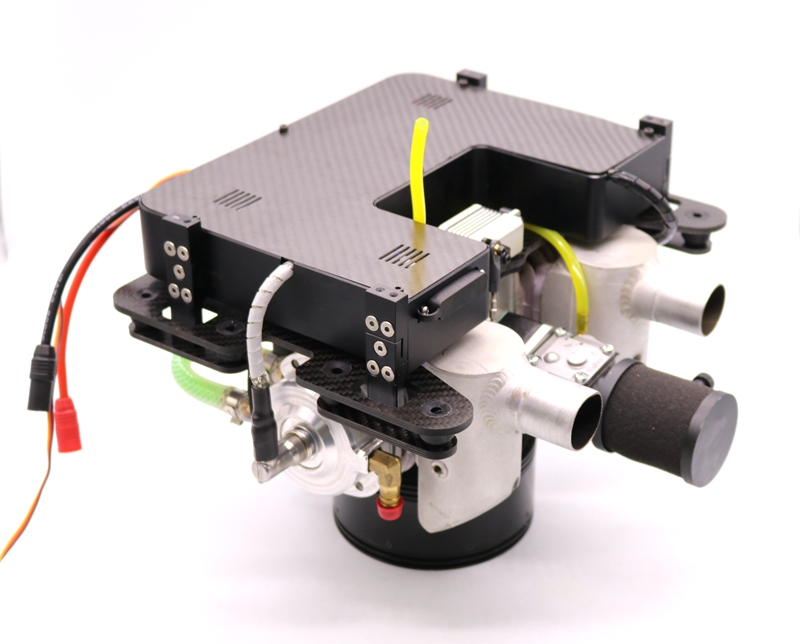

Drone hybrid generator FL6000 is a high efficiency generator designed for multicopters. FL6000 generator is only 7.2kg , which is much lighter than any other generators that produce 5300w output power, so FL6000 generator is five times the efficiency of other generators. The continuous power output of generator is 5300w. An internal combustion engine consumes gasoline and spins a generator to ensure a 44.4V output. Besides this, a 12S lipo battery package is also needed to be installed on board to offer emergency back-up power for quick climbing and quick maneuvering. With this generator, the max take-off weight can reach 48kg(according to your power system), and the max flight time is about 2 hours. FL6000 generator is suitable for those multicopters whose power is still lower than 5300w even with 7.2kg generator system(including generator, fuel tank and 3L gasoline). As for the fuel, the auto gasoline is available. When the generator running, its noise level is about 80 dBA. But the noise has no effect if you talk 10 meters away from the drone.
Also maintenance is necessary for FL6000 to keep its high performance. The maintenance cycle is 50 hours. And we will also provide the accessories for generator maintenance.

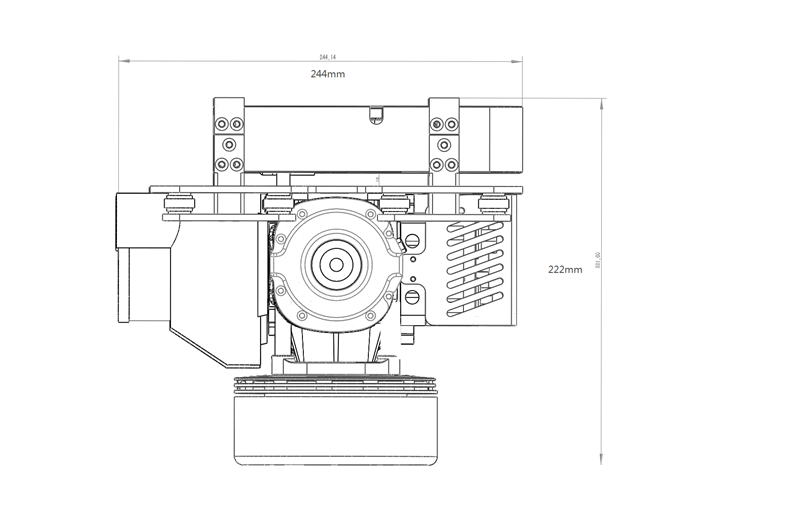

Size: 295*290*230mm (LxWxH)
Rated voltage :MIX 44.4V MAX 50V 12S
Continues power: 5300W
Weight: 7.2 kg
Fuel tank capacity: 3.5L / 2L
Fuel consumption : 6L/H
Suggest rotor: EA118 KV95 & 38 inch propeller for Quadrotor
Max takeoff weight: 39KGS for industrial drone.
Fuel ratio: 25:1 (95# gasoline, FD grade 2T oil)
Working temperature: -20~45 degrees Celsius
Startup mode: one-button self-starting
Cooling method: forced air cooling
1: Intelligent cooling system: It can reduce heat consumption according to the high and low temperature of the engine cylinder.
2: LED intelligent display, real-time accurate display of speed, voltage, cylinder temperature and system status.
3: One-piece patented industrial design, dustproof and waterproof, easy to maintain.
The integrated power generation design is started, and the air start function can be realized without relying on external starting equipment.
The one-piece design makes it easy to hang in all types of racks.
No need to charge preparation time, no complicated ignition action, can quickly perform tasks.
In a cold environment of -20 degrees Celsius, it can work stably.
The backup battery can provide power for emergency short-range return or forced landing in an emergency.
For light-load business, additional fuel tanks can be added and the range can be increased to 1.5-3 hours.
Quick and easy engine installation for quick and easy engine replacement and maintenance.
|Before Use||Every 25 hours||Every 100 hours||
|Air-cleaner||Check/Cleaning||✔||✔||Replace if necessary|
