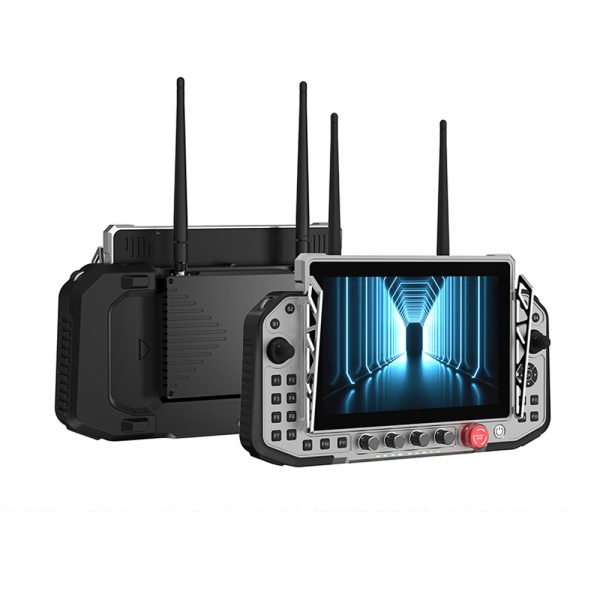

handheld ground station portable and professional ground control station(GCS)

handheld ground station is a portable and professional ground control station(GCS) with 10.1 inch HD and high-brightness touch screen display, can integrating data link, video link, radio controller and PC system all in one(this need aditional link). Many functions are achieved , such as drone control, gimbal control, real-time flight status feedback, data and video transmission, route planning, etc. The industrial-grade computer and military-grade transmission links not only ensure the security and stability of the drones, but also are simple to operate and easy to carry.

The aircraft aluminum alloy shell is adopted, and the machine tool is finely processed. The handle is fully rubber-wrapped for better grip and remote control.
The ingenious connecting rod design can adjust the position of the hanging strap, which has the functions of anti-collision and so on. IP54 grade waterproof,
enhance environmental adaptability.

Rich physical channels
25 buttons, 2 Hall joysticks, 4 knobs, 2 dials, emergency stop button, PTZ control keys.
The joystick system can be mapped freely and supports traditional RC access.
The joystick system provides a variety of programming modes, which can be mapped to each
channel position of the 2-way S-BUS, or a custom protocol output. The domestic first soft key
setting, each function key can realize single-state, double-state, three-state control, add combination key,
super combination key function, can use the key to simulate the linear output function and multi-function switching.

Can replace other manufacturer’s radio equipment
The equipment compartment provides rich interfaces, integrates with third-party equipment, and is compatible with
most links on the market. Support the expansion of the CAN interface, and the CAN protocol customization function
can be set on the upper computer.
The serial port protocol is provided, and the underlying communication protocol can be obtained to facilitate the user’s
secondary development.

Specially developed for the needs of unmanned vehicles and robot control
Highly integrated single-soldier handheld device, specially developed for unmanned vehicles and robot control requirements, and can also be applied to the control of remote control drones, unmanned ships, and gimbals.

Product parameters

Dimension
Overall weight 2800g
Dimension 378mm(L)*221mm(W)*54mm(H)
Screen size 10.1inch industrial touch screen
Computer Peripherals
CPU Intel i5 6200U/ 2.3GHz
Touch pad 10-finger capacitive touch screen
Operating system Windows10/Linux
RAM 8GB DDR4L(standard), 32G max
SSD storage 128GB(standard), 1T max
Network WIFI/Bluetooth(standard) 4G(optional)
Interfaces HDMI*1, USB3.0*1, 4G SIM*1, LAN*1
Remote Control
Physical channel Main joysticks*2

(industrial joysticks with hall sensors)

Knob*4

Key button*25

Pull wheel*2

1 stop button

1 directional button

7 simulate keystrokes

Human interface USB HID
Remote control function Dual SBUS independent output, able to control the vehicle and the payload simultaneously
SBUS port SBUS IN; SBUS OUT
Remote control latency 40ms
Battery Peripherals
Battery capacity 12.6V/10200mAh, external battery also supported



Working time 3.5hs@full battery capacity
Charging port Type-c 65W fast charge
Communication link
V21 10km grade Video&telemetry&RC link
The 3rd party communication link Supported



SKU: 5487FB8/10-213 Categories: , Tag:
Weight 5 kg
Dimensions 50 × 40 × 30 cm
