FDAD-10L(4X)-R 4 Axis 10L 10KG Capacity UAV Agriculture Spraying Drone Farm Drone Frame Kit
FDAD-10L(4X)-R 4 axis 10L agriculture drone is the upgrade version. Compared with the E410S, the biggest differences of it is integration. The structure of the FDAD-10L(4X)-R’s fuselage has been improved. The body is different from the original carbon structure, and the improved product is processed by plastic injection molding.
The FDAD-10L(4X)-R Series agriculture drones continues the classic design elements of the old E series. It adopts red and blue color matching, a streamlined body design, and the whole body is waterproof, without fear of high pressure washing. The new FDAD-10L(4X)-R series upgrade product adopts a new integrated molding process. Complex to simple, the fuselage is integrated from dozens of original parts into a whole, and the fuselage is made of high-strength and impact-resistant materials, which are strong and anti-fall.
The force-bearing structure of the fuselage adopts a double fixing method of clamping and limiting at many key points, so that the entire fuselage will not cause structural displacement due to long-term use, and it also makes installation and positioning easier.
There reserved a detachable camera installation parts in front of the fuselage, which can be installed or closed according to own needs.
The power distribution board in the center of the fuselage integrates all power supply plugs to separate the power supply from the signal and minimize interference
The new product continues the classic foldable body design, using threaded locking and folding parts, which are stable and not loose, and the volume is small after folding, which is convenient for transportation and transition.
Please note this is just for frame KIT, Do not include any electronic parts.
|Frame and spraying weight||6.8KGS|
|Frame and motor sets weight||12KGS|
|No-load takeoff weight||17KGS(including 12 1*16000mAh battery 4.7KGS)|
|Full load Take-off weight||27KGS|
|Nozzle||Ceramic sprinkler head imported from Germany/China|
|Number os nozzles||4pcs|
|Flight Speed||3-8 Meter /Sec|
|Spray width||3-6 Meter /Sec|
|Max spraying flow||1.5-3 kg/min. （Max. 4kg/min.）|
|spaying efficiency||1.5-3 Acres/Min.|
|Water Pump Pressure||0.48mPa|
|Delivery package size||Aluminum Box 860*800*650mm 25kg|
|Transport volume weight||89kg|
|The fuselage material||Carbon fiber composite|
|Max flight time (no load)||10-15min|
|Max flight time (full load)||8-10min|
|The tank volume||6L|
|Working temperature work||-15°C~45°C|
|Signal effective range||5km|
|Flight Control systems||Boying|
|Dynamic System||Hobbywing X8,Pipe: 40mm|
|Spraying System||High Pressure Spray|
|The battery specification||12S8000mah*1PCS|
|Recharge Cycles||300-500 times|
|Storage ambient temperature||For less than 3 months: – 20 ° C ~ 45 ° C
For more than 3 months: – 22 ° C ~ 28 ° C
|Hover time||15min(take-off weight 16kg)
8min(takeoff weight: 26kg)
|Standby time of remote control||8hrs|
|1. Android ground station, easy to use / PC ground station, full voice broadcast|
|2. Router Setting support, Fully Auto Flight operation with A,B Point operation.|
|3. One Button take-off and landing, More safety and time saving.|
|4. Contrinue Spraying at Breakpoint, Auto Return when finish liquid and low Battery.|
|5. Liquid Detection, Break Point record setting.|
|6. Battery Detection, Low Battery return and Record point setting available.|
|7. Terrain following Radar, Stable Altitude setting|
|8. Vibration Protection, Lost Contact protective, Tank empty detect|
|9. Motor Sequance Detection and Direction detection Function.|
|10. Dual Pump Mode|
|11. The night vision function|
|12. Three anti – one lamp|
|1. Crossfolding Method ,The arms of the FDAD-10L(4X) are folded in a staggered way, minisize the folding size, more convenient for transportation.|
|2. Integrated Fuselage Frame The fuselage frame of the FDAD-10L(4X)Agriculture spraying drone is formed n one body, which simplify the structure and improve the strength of the frame. Therefore, the FDAD-10L(4X) has good durability and reliability.|
|3. Quick Release Battery & Tank The water tank of the FDAD-10L(4X)adopts plug-in design, and the battery can be placed vertically in the battery compartment.The size of the battery compartment is 168mm in length, 93mm in width and the height is not limited. Any 12S battery in this size can use on the FDAD-10L(4X) drone. It is convenient to replace the tank and battery.|
|4. Dustproof and Waterproof The whole drone is dustproof and waterproof, and the waterproof grade reachs IP65. The frame can be washed directly with water.|
|5. Great Expandability The radar, fpv camera, pump and some other parts can install on the drone.|

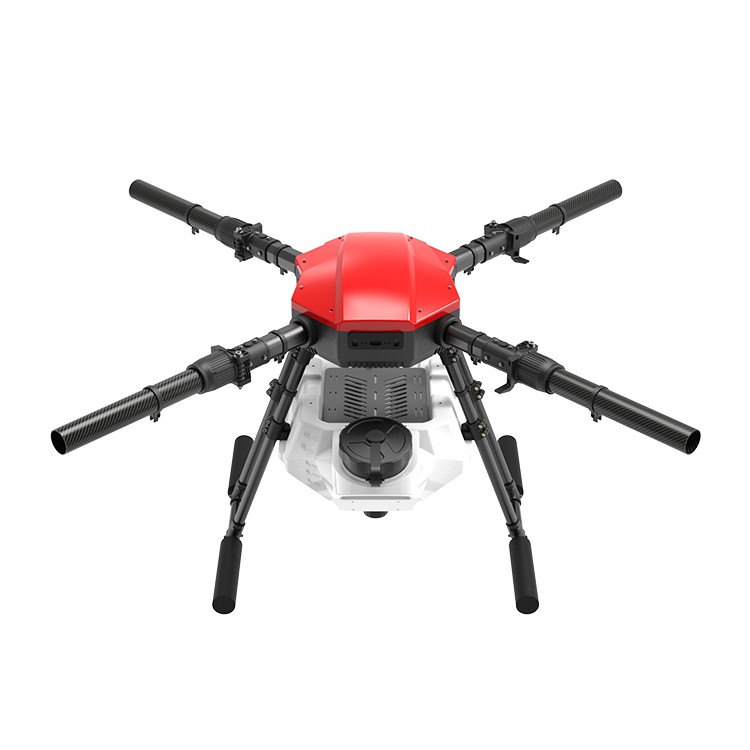

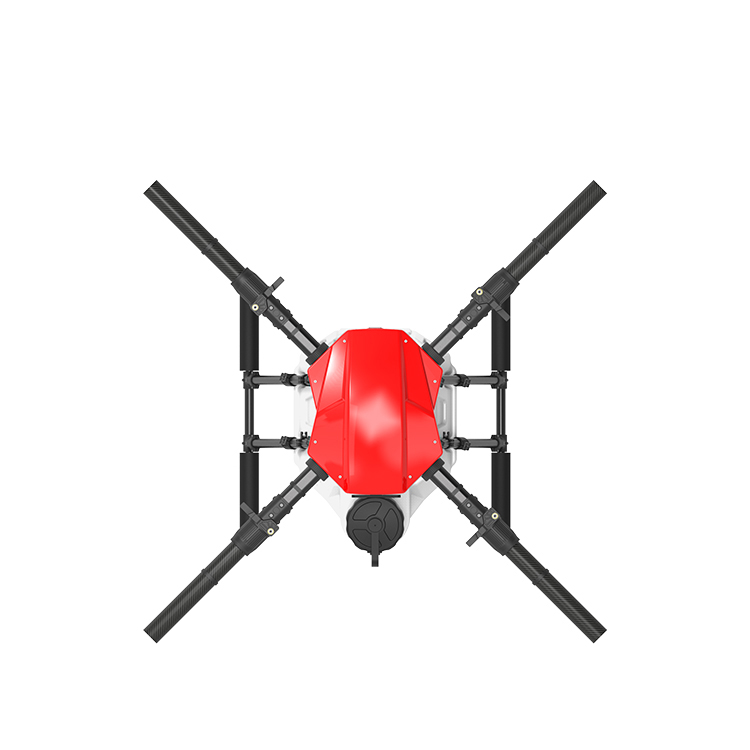

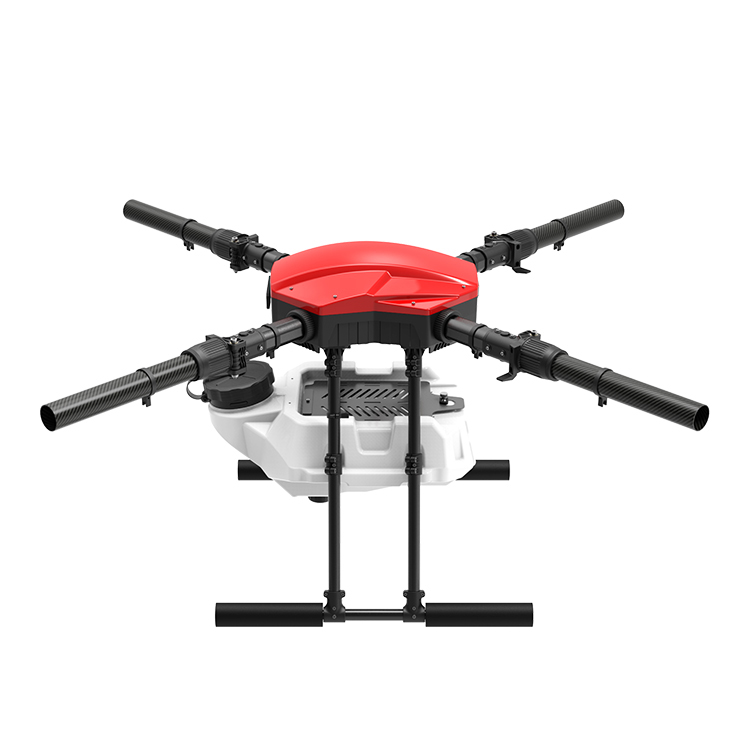

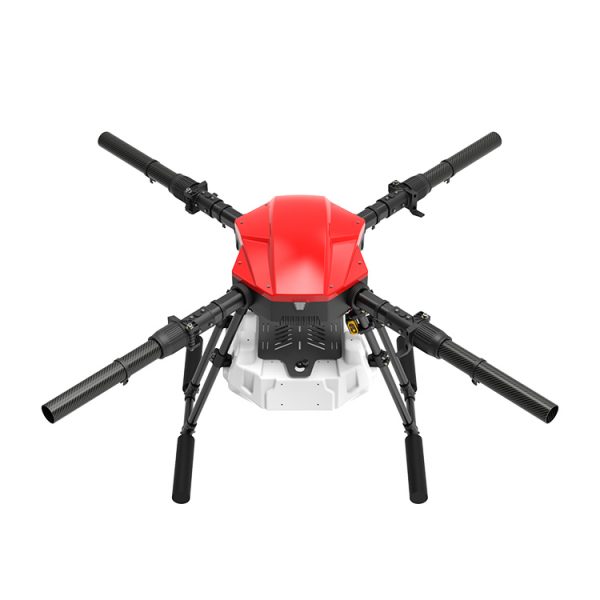

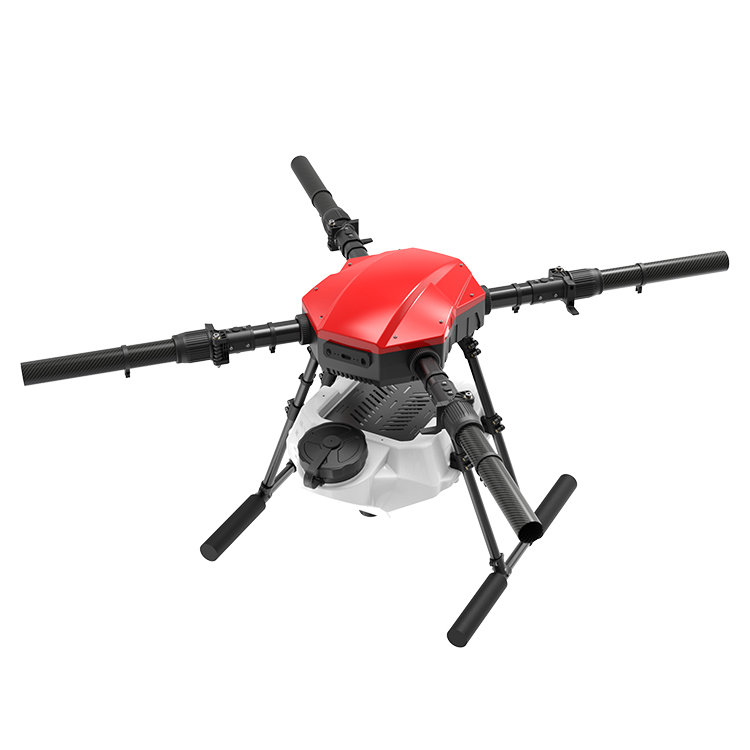

Below is the picture of the frame KIT.
