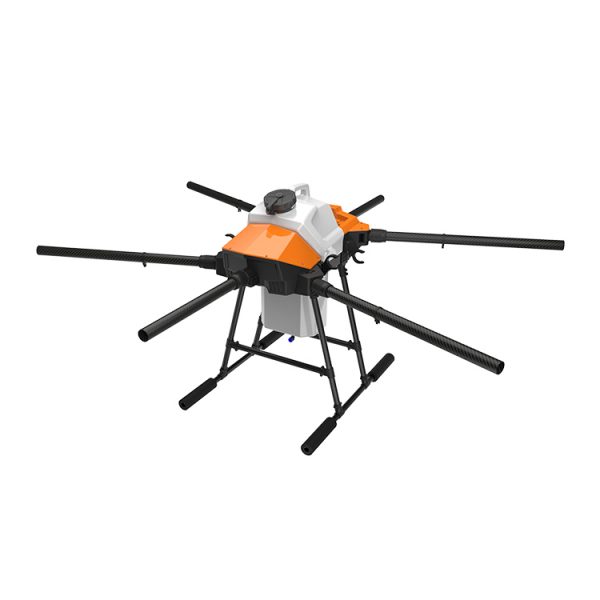

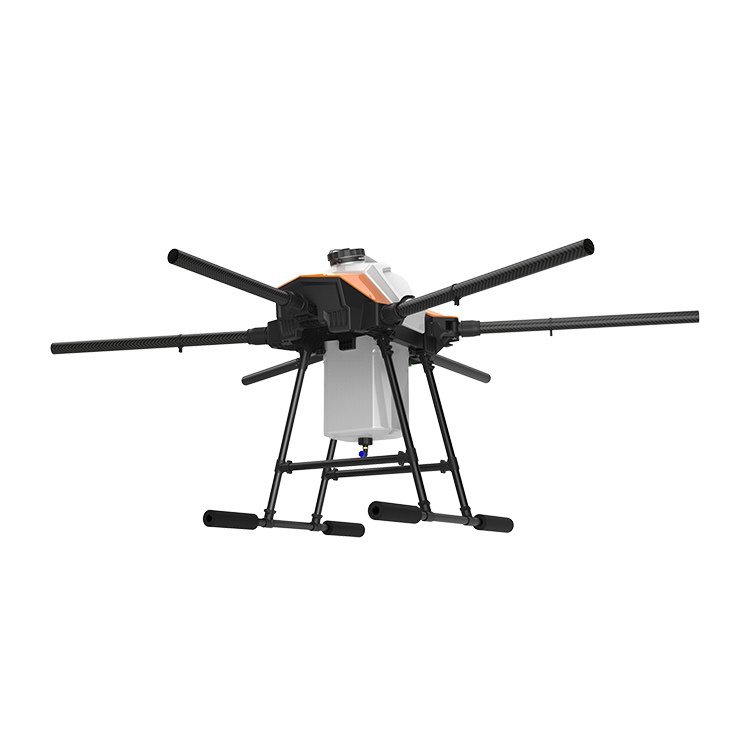

FDAD-Q626L precision crop spraying drone 26L large capacity frame KIT


$1,775.00

Compare

FDAD-Q626L precision crop spraying drone 26L large capacity frame KIT

Crop Spraying Drones FDAD-Q626L 26L agriculture crop spraying drones. 26L agriculture crop spraying drone is always the most popular. FDAD-Q626L 16L agriculture drone is specially designed for the most popular 26L capacity.  The effective capacity of the drone is 26L. It adopts a quick-release water tank and battery, compact body, light in weight and convenient to fold. Radar and FPV cameras are the first choice for entry-level plant protection drones, there reserved installation space for them on the FDAD-Q626L 26L series drones.

Description
wheelbase 2028MM
Unfolded size 2692*2619*885MM
Folded size 1192*623*885MM
Tank capacity 26L
Frame weight 11.5KGS
Frame and spraying weight 23.55KGS
Frame and motor sets weight 21.85KGS
No-load takeoff weight 33.15KGS(including 14S 1*22000mAh battery 7KGS)
Full load Take-off weight 59.15KGS
Nozzle Ceramic sprinkler head imported from Germany/China
Number os nozzles 4pcs
Flight Speed 3-8 Meter /Sec
Spray width 3-6 Meter /Sec
Max spraying flow 1.5-3 kg/min. (Max. 4kg/min.)
spaying efficiency 1.5-3 Acres/Min.
Water Pump Pressure 0.48mPa
Delivery package size Aluminum Box  1100*600*850mm  45kg
Transport volume weight 110.2kg
The fuselage material Carbon fiber composite
Max flight time (no load) 20min
Max flight time (full load) 8min
The tank volume 20L
Working temperature work   -15°C~45°C
Signal effective range 5km
Flight Control systems Boying
Dynamic System Hobbywing X9, tube: 40mm
Spraying System High Pressure Spray
The battery specification 14S 22000mah*1PCS
work power 51.8V(14S)
Charging Time 0.5-1hour
Recharge Cycles 300-500 times
Daily efficiency(6hours) 300-500acres
Storage ambient temperature For less than 3 months: – 20 ° C ~ 45 ° C
For more than 3 months: – 22 ° C ~ 28 ° C
Hover time No-load flight Time: 20.3minutes (48V)
Full-Load flight time: 8 minutes (47V)
Standby time of remote control 8hrs
Function
1. Android ground station, easy to use / PC ground station, full voice broadcast
2. Router Setting support, Fully Auto Flight operation with A,B Point operation.
3. One Button take-off and landing, More safety and time saving.
4. Contrinue Spraying at Breakpoint, Auto Return when finish liquid and low Battery.
5. Liquid Detection, Break Point record setting.
6. Battery Detection, Low Battery return and Record point setting available.
7. Terrain following Radar, Stable Altitude setting
8. Vibration Protection, Lost Contact protective, Tank empty detect
9. Motor Sequance Detection and Direction detection Function.
10. Dual Pump Mode
11. The night vision function
12. Three anti – one lamp
Parameter of the Spraying system
Water Pump: 12S brushless water pump
Nozzle: Extension rod Y shape double 1.0 nozzle
Extension rod U shape double 1.0 nozzle
Note: The drone can work with two water pumps or 4 pumps, you can use them according to your requirements. When the 2 water pump works, one water pump controls 4 nozzles, and when the four water pump works, one water pump controls 2 nozzles. Four pumps can support independent spraying in front and back, and the atomization effect is better. Two pumps do not support independent spraying in front and back, which has better cost and other functions are consistent;
Main feature

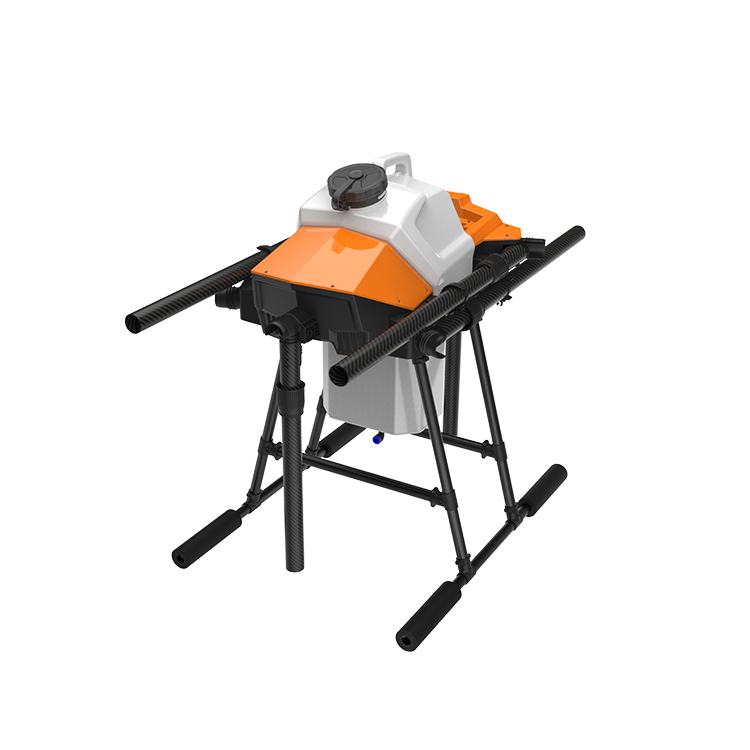

1. Crossfolding Method ,The arms of the Q626L are folded in a staggered way, minisize the folding size, more convenient for transportation.
2. Integrated Fuselage Frame The fuselage frame of the Q626LAgriculture spraying drone is formed n one body, which simplify the structure and improve the strength of the frame. Therefore, the Q626L has good durability and reliability.
3. Quick Release Battery & Tank The water tank of the Q626L adopts plug-in design, and the battery can be placed vertically in the battery compartment.The size of the battery compartment is 168mm in length, 93mm in width and the height is not limited. Any 12S battery in this size can use on the Q626L drone. It is convenient to replace the tank and battery.
4. Dustproof and Waterproof The whole drone is dustproof and waterproof, and the waterproof grade reachs IP65. The frame can be washed directly with water.
5. Great Expandability The radar, fpv camera, pump and some other parts can install on the drone.

Please note this is frame KIT.

Main Features:
Crossfolding Method

The arms of the FDAD-Q410L are folded in a staggered way, minisize the folding size, more convenient for transportation.

Integrated Fuselage Frame
The fuselage frame of the FDAD-Q410L Agriculture spraying drone is formed n one body, which simplify the structure and improve the strength of the frame. Therefore, the FDAD-Q410L has good durability and reliability.

Quick Release Battery & Tank
The water tank of the FDAD-Q410L adopts plug-in design, and the battery can be placed vertically in the battery compartment. The size of the battery compartment is 168mm in length, 93mm in width and the height is not limited. Any 12S battery in this size can use on the FDAD-Q410L drone. It is convenient to replace the tank and battery.

Dustproof and Waterproof
The whole drone is dustproof and waterproof, and the waterproof grade reachs IP65. The frame can be washed directly with water.

Great Expandability
The radar, fpv camera, pump and some other parts can install on the drone. The below picture is just for reference.

Below is the picture of the ready to fly version.
Weight 23.5 kg
Dimensions 110 × 60 × 85 cm
