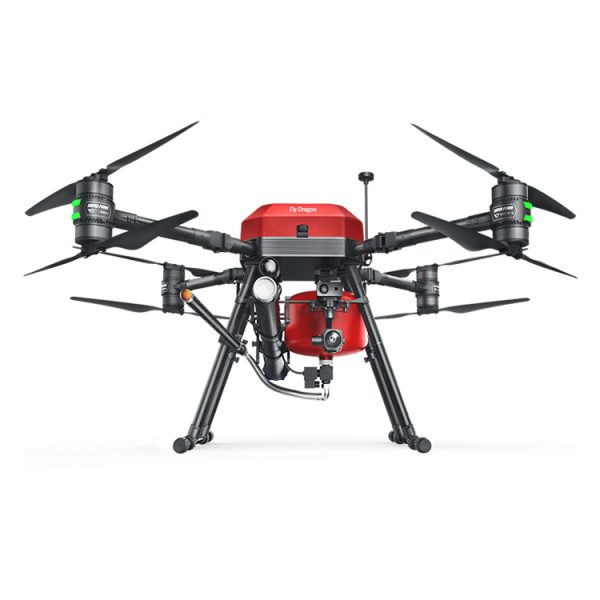

Firefighting drone

The high floors of the city are rising, and the floors are getting higher and higher, which brings great challenges to fire rescue. The fire floor equipment on the floor is too high to quickly reach the control of the fire, and can only be allowed to ravage the fire, these reason causing major fire accidents. In response to this problem, we have developed a dual fire-fighting drone,  that has a large load capacity, strong wind resistance, high throwing precision, and can fire fire extinguishers remotely in a complex fire weather environment. At the same time, it can also spray fire extinguishing powder at close range. The double fire fighting drone is a special fire fighting drone for high-rise buildings.
Fire fighting drone’s features a folding fuselage design, super-load and anti-shock design, fast access to high-rise fire scenes, high-powered cameras to observe fire, and firearms to launch firefighting drones.

Function:

  1. 30-x optical zoom camera (can adopt thermal cameras and Infrared cameras as client require).
  2. Launch extinguishing system to break glass window and blow ABC powder extinguishing agent.
  3. Carry Lidar for Intelligent obstacle avoidance system.
  4. Night vision aiming system.
  5. Carry ABC powder extinguishing agent.
  6. Electronic quick control in APP software.
  7. IP-65 three defense capabilities.

Fire fighting drone



Weight 50 kg
Dimensions 98 × 80 × 60 cm

Specifications

Aircraft
Symmetrical motor wheelbase 1500 mm

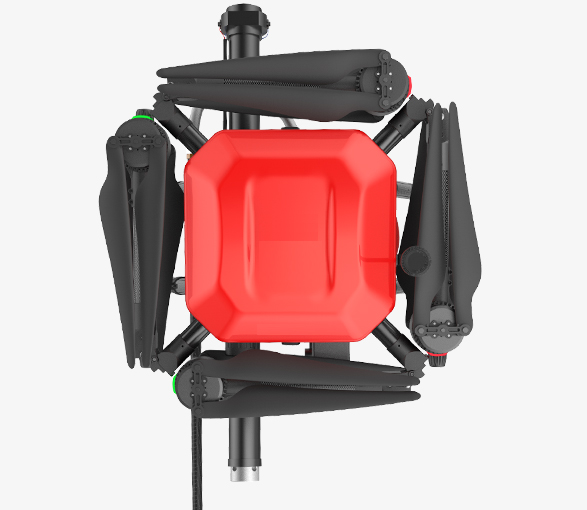

Fuselage size unfold: 1150×1150×760 mm; fold: 650×650×760 mm
Max. Take off weight 45 kg
Propellers Diameter X screw pitch: 30×9.9 inch; Single weight: 160 g
Motor KV value: 100 rpm/V; size of the stator: 81×20 mm; Weight: 630 g
ESC sustained current: 80A; battery: 6~12S; PWM input level Signal: 3V/5V compatible; Compatible frequency: 50~500 Hz

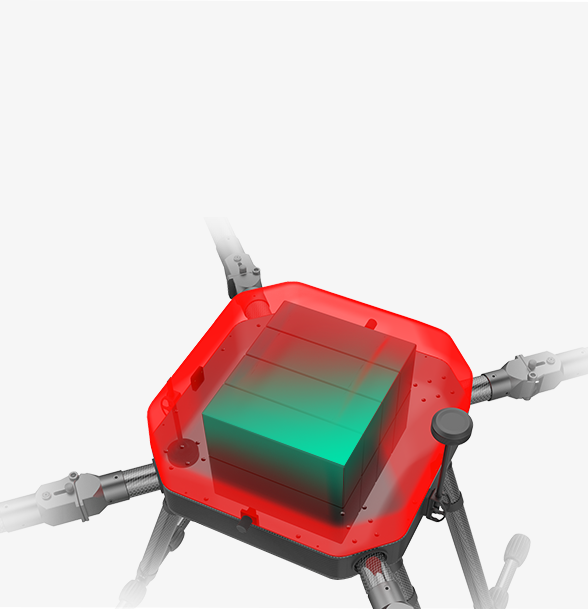

Battery Voltage: 45.6V; capacity: 44000 mAh; energy: 2006.4 Wh; Type: LiHV 12S; discharge current: 25C
Max. Rising speed 5 m/s
Max. Lowering speed 3 m/s
Max. Horizontal flight speed Sport mode: 8 m/s(windless); Attitude mode: 15 m/s(windless)
Max. Pitch Angle 25°
Max. rotational angular velocity pitch axis: 120 °/s, Heading axis: 120 °/s
Max. Bearable wind speed 14 m/s
Max. Flight altitude 5000 m
Max. Flight altitude(GPS) Vertical: ±0.5 m, Level: ±1.5 m (when GPS positioning is working normally)
Max. endurance 35 mins

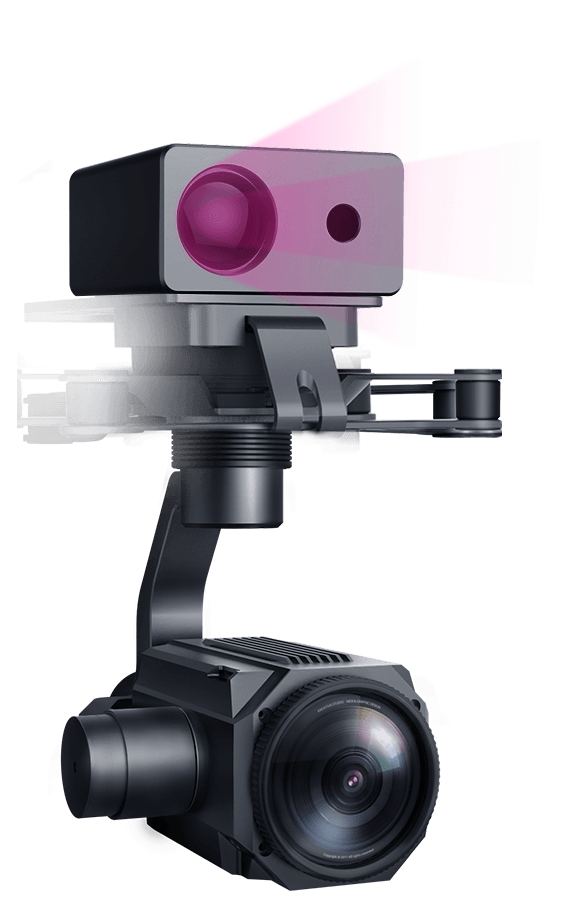

Gimbal and surveillance camera
Gimbal size 136×98×139 mm
Gimbal weight 452 g
Gimbal input voltage 12 V
Gimbal stability system 3 axis (pitch, roll, level)
Gimbal angular control accuracy Static: ±0.008°; Dynamic: ±0.02°;Anti-shake : ±0.008°
Gimbal controllable rotation range pitch:-110° to +60°;level :±150°;roll :±10°
Gimbal control speed pitch:30 °/s;level :30 °/s
Camera lens pixel 1200 million pixels
Camera focus time 7~8 seconds
Camera sensor 1/2.3 SONY IMX117 CMOS
Camera ISO range Video:100~3200;photo:100~1600
Camera video recording resolution 4K 30 fps
Camera resolution 3840×2160
Camera focal length 6.7-134.5 mm
Camera zoom multiplier 30 X optical zoom
Camera zoom speed about 2.0 second
Horizontal camera Angle 59.8 ° ~ 3.0 ° (wide Angle – telescopic)
Camera proximity 5000mm (wide Angle – telescopic)
Camera video storage code stream Max. 64 Mbps
Camera compression standard H.264 / H.265
Camera supports file storage format JPG/MP4
Camera supports memory card type SD/SDHC/SDXC micro-SD card with maximum support of 128 G and transmission speed of Class10 or above or reaching uhs-1 rating
Sighting
Magnification 3~9 times
Extent 33 cm
Weight 590 g
Pipe diameter 25.4 mm
Objective 40 mm
Exit pupil distance 7~8 cm
Differentiation of line Cross point differentiation
Differentiation of material Metal Wire differentiation
Focus Mode Objective lens focusing
Accommodation mode Swivel lock hand mode
Lighting system Red & Green double light
Regulating variable one click a quarter of an inch from 100 yards away
Lidar ranging obstacle avoidance system
Distance measuring range 100m
Range of obstacle perception 3~15m(adjustable)
FOV Level 20°;Vertical 3°
Survey frequency 10kHz

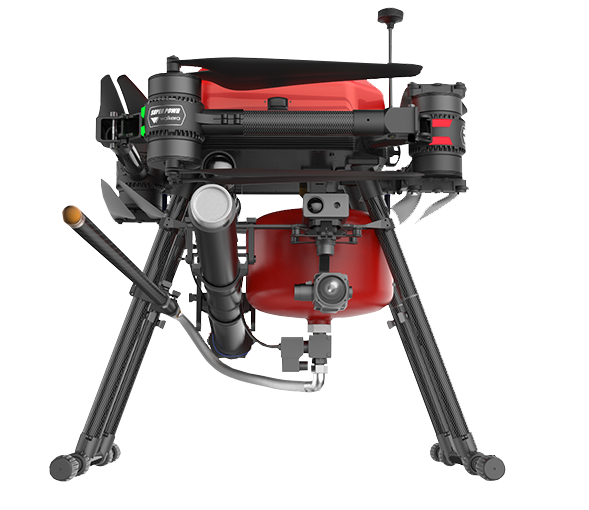

Fire extinguishing system

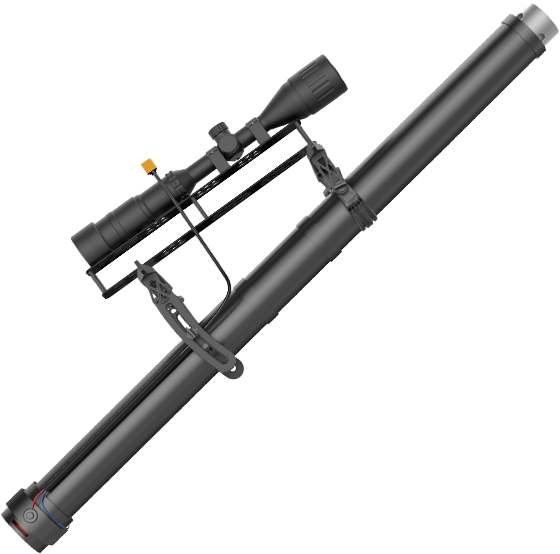

Model of fire extinguisher launcher CM60 airborne transmitter
Outside diameter of launcher tube φ67 mm
Max. Outside diameter φ 70mm
Emitter length 1000 mm
Emitter weight ≤ 1400 g
Fire system CM60 rocket boosts ABC dry powder fire extinguishing projectile
Transmitter trigger voltage 12V~24 V
Transmitter trigger current ≥ 700 m A
Life of transmitter ≥3 Years/100 Times
Fire extinguishing tank
Fire extinguishing tank material HP295
Tank weight 8.7 kg
Net dry powder content 3 Kg
Filling pressure 1.2 MPa
Installation Hang up fast
Open mode electronic fast
Powder spraying pipe Material: carbon fiber; Length: unfold4.8 m (minimum shrinkage is 1.2m)
Fire extinguishing System
Length 995 mm
full weight ≤3000 g
striking current ≥ 700 mA
safe current ≤150 mA
Initial emission velocity ≤35 m/s
Max. range ≤40 m
Single fire extinguishing capability 9 m3 (Total flooding)
Fire extinguishing agent Species: ABC super fine dry powder; weight:≥1100g Features: Fully sealed, waterproof,moisture-proof and non-explosive
Delay time for extinguishing agent injection ≥5 s
Life of fire system 3Years
Remote control
Fuselage size 65×174×62mm(L×W×H)
Weight 970 g
Working frequency 2.4 G
Working current 1000 mA
Signal effective distance about 2Km (open, no occlusion, no electromagnetic interference)
Video output interface HDMI
Power supply mode Built-in lithium electricity 7.4V 6000mAh LiPo 2S
Mobile device support For tablets or mobile phones
