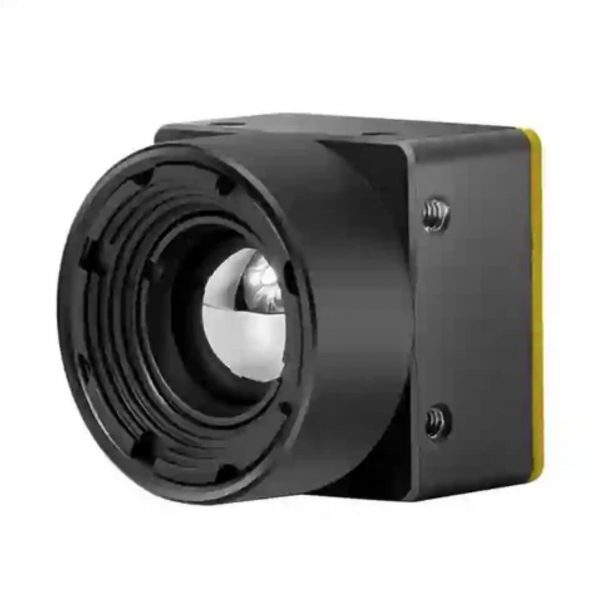

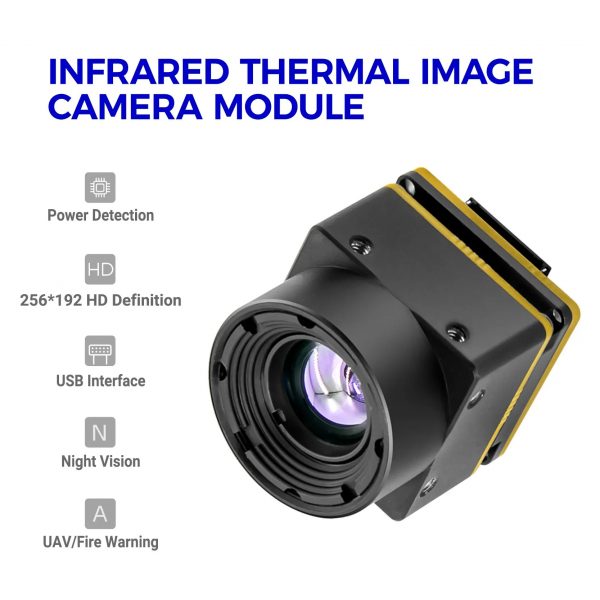

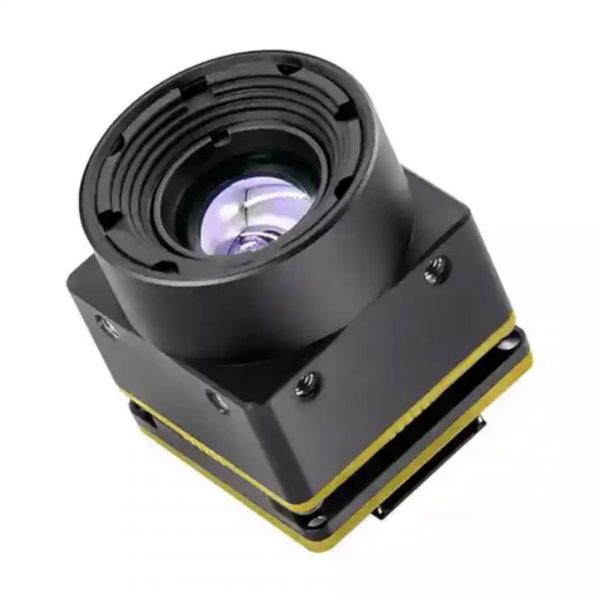

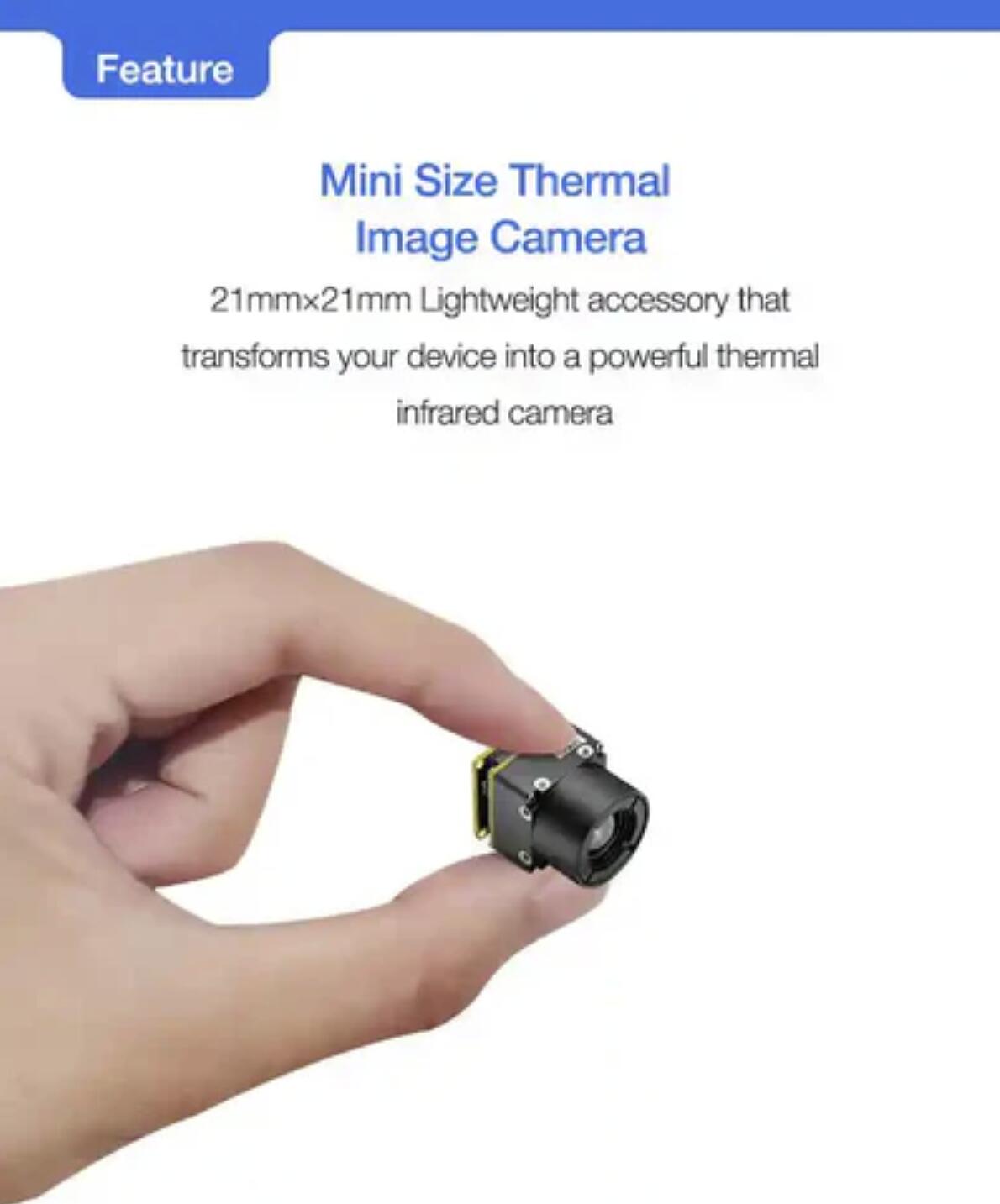

mini analog thermal camera adopts new self-developed 12μm VOx WLP detector and is equipped with an ASIC processing chip, featuring extremely small size, lighter weight, and lower power consumption. Its 640-resolution thermal iamging module has a size of 21mm×21mm, which is very suitable for applications with extremely high requirements such as various miniaturized handheld devices, wearable devices, and light UAVs.


Extremely small size, extremely low power consumption, and extremely light weight

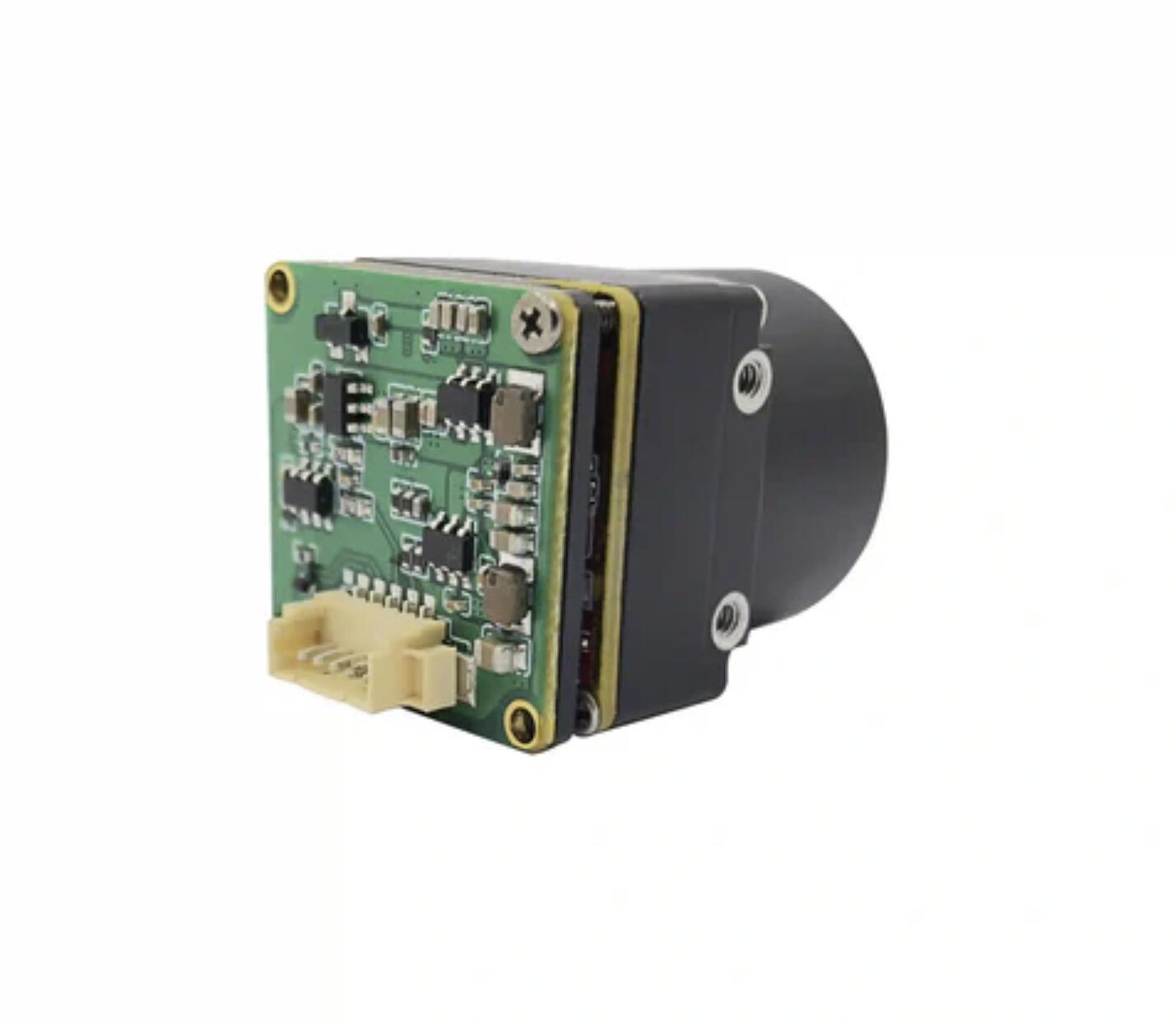

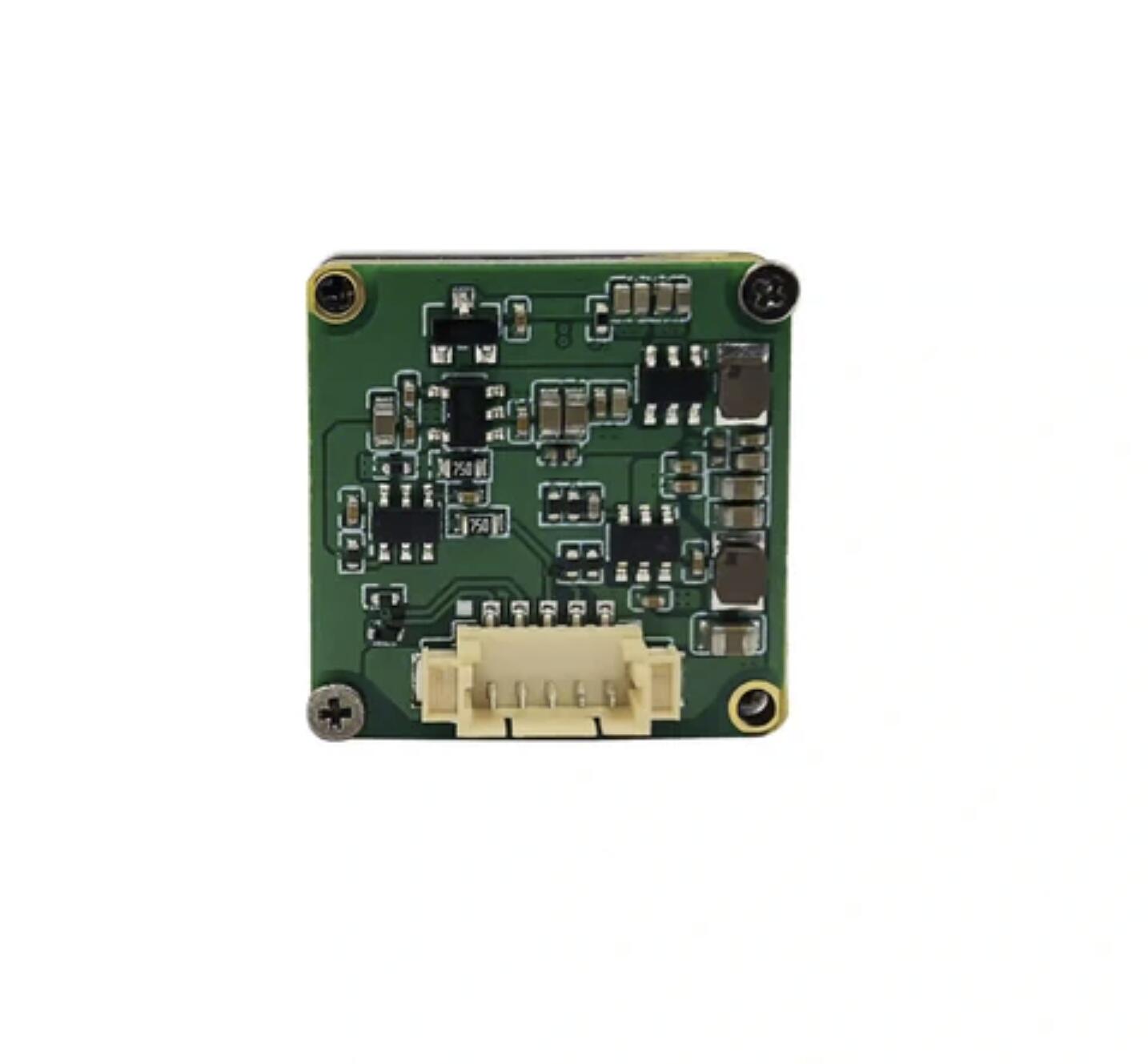

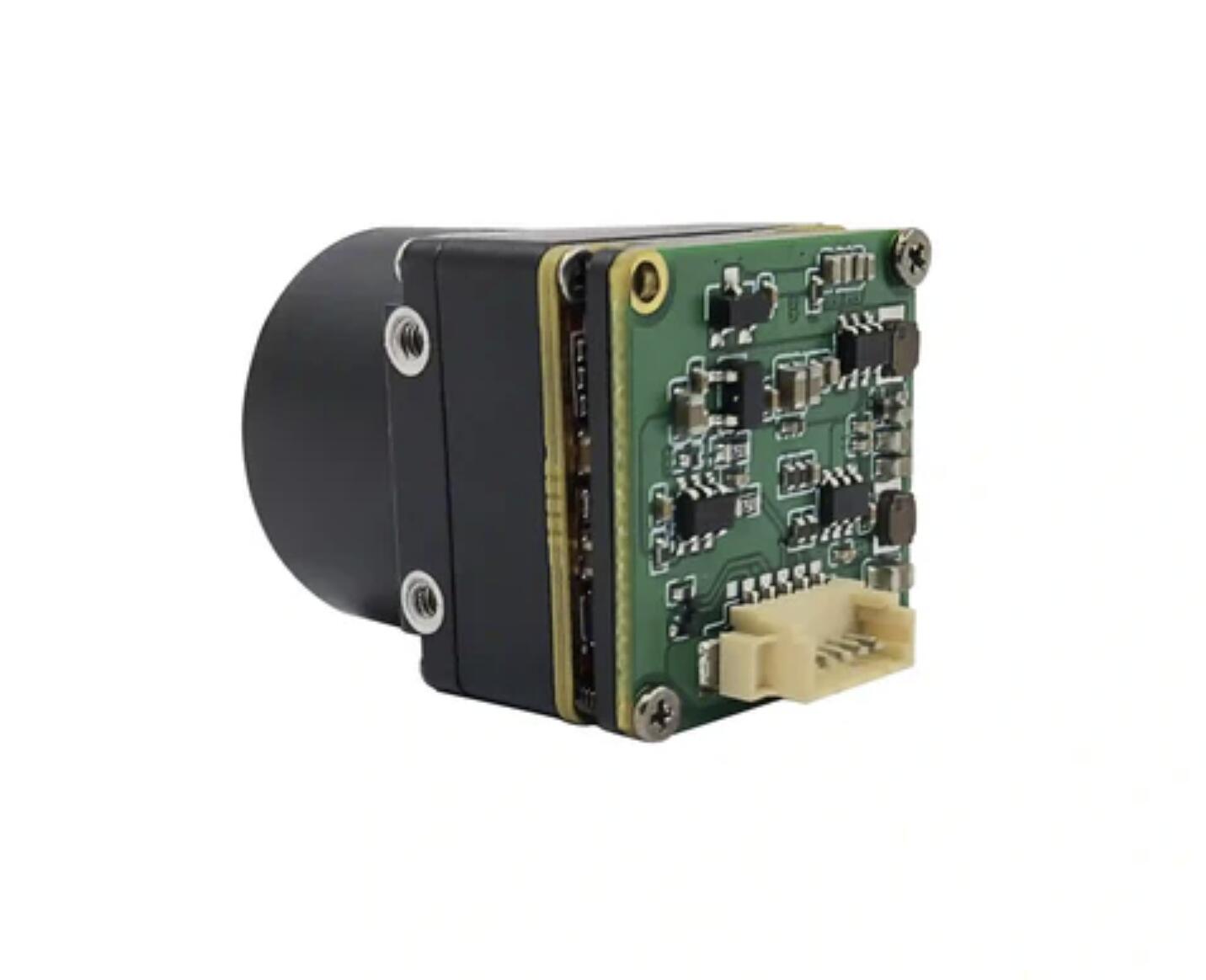

Benefit from the size advantages of ASIC and WLP;Benefit from the low power consumption of ASIC;Mini series thermal imaging module has only one circuit board, which is extremely light.

Self-developed Core

With advanced image detection algorithm, it can realize automatic monitoring alarm, warning area customizing, and automatic target recognizing or tracking;The interface software has complete functions and friendly interaction. It provides a variety of monitoring methods such as 360° panoramic image, radar image, and single frame image, and various parameters of the device can be set;When the monitored target appears, it can alarm via image slice, log, sound, and other methods;

Advanced image detection algorithm

The alarm position can be accurately displayed in real time on the infrared panoramic image and 2D/3D electronic map of GIS system, and link with other external devices. For example, combined with the ARD high-accuracy remote dual-spectrum early-warning imaging tracker, it can quickly locate and recognize the target, complete the alarm situation review process, and record the linkage process information;

Advanced image stabilization algorithm

Small size, customized color, easy to install and deploy in various environments;30V DC power supply, average power of less than 30w. The ordinary portable power source is enough for it;A single person can complete its handling, installing, and debugging in half an hour. Main components: 1 tripod + 1 portable power supply + 1 laptop;One 640 infrared radar can cover the shooting range of 45 units 640×512 infrared monitoring cameras, and the pitch range is adjusted from -20° to +40°, which further improves the monitoring range of the infrared radar;


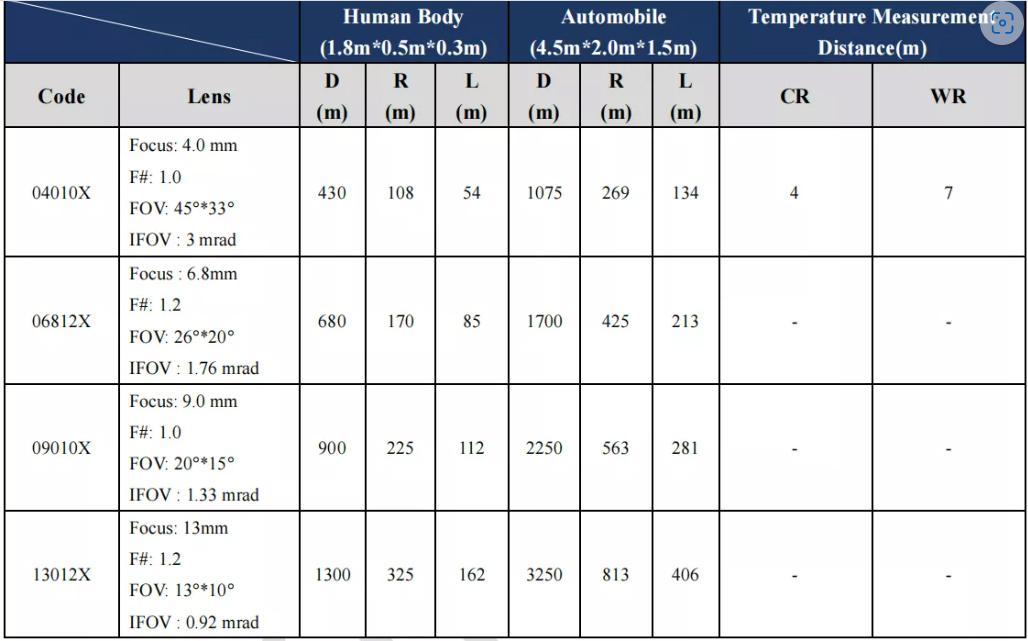

Specifications of Mini 256/384/640 LWIR Micro Thermal Camera Module

Main Specifications MINI 640 MINI 384 MINI 256
Detector Type VOx   infrared detector
Resolution 640×512 384×288 256×192
Detector Frame Rate Imaging   module: 50Hz; 25Hz
Pixel Pitch 12μm
Spectral Band 8~14μm
NETD ≤50mK@25℃, F#1.0(≤40mK optional)
Imaging Fuction
Brightness Adjustment 0~255, optional
Contrast Adjustment 0~255, optional
Polarity Black-hot/White-hot
Palettes Supported
Digital Zoom 0.25×~2.0× continuous zoom
Mirroring Horizontal/Vertical/Diagonal
Reticle Display/Blank/Move
Image Processing TEC-less algorithm
Non-uniformity correction
Digital filter noise reduction
Digital detail enhancement
Module Power Supply
Service Voltage 3.3V, 5V dual power supply
Typical Power Consumption @ 25ºC <0.55W <0.50W <0.30W
Module Output   and Communication Interface
Digital Video DVP/BT656 DVP/SPI
Communication Interface I2C
Expansion Board and Optional   Interfaces
Power Supply 5V
Power Protection Support   overvoltage, undervoltage, and reverse connection protection
Output and Control Interfaces USB2.0+I²C image output, providing Linux/Windows/Android SDK

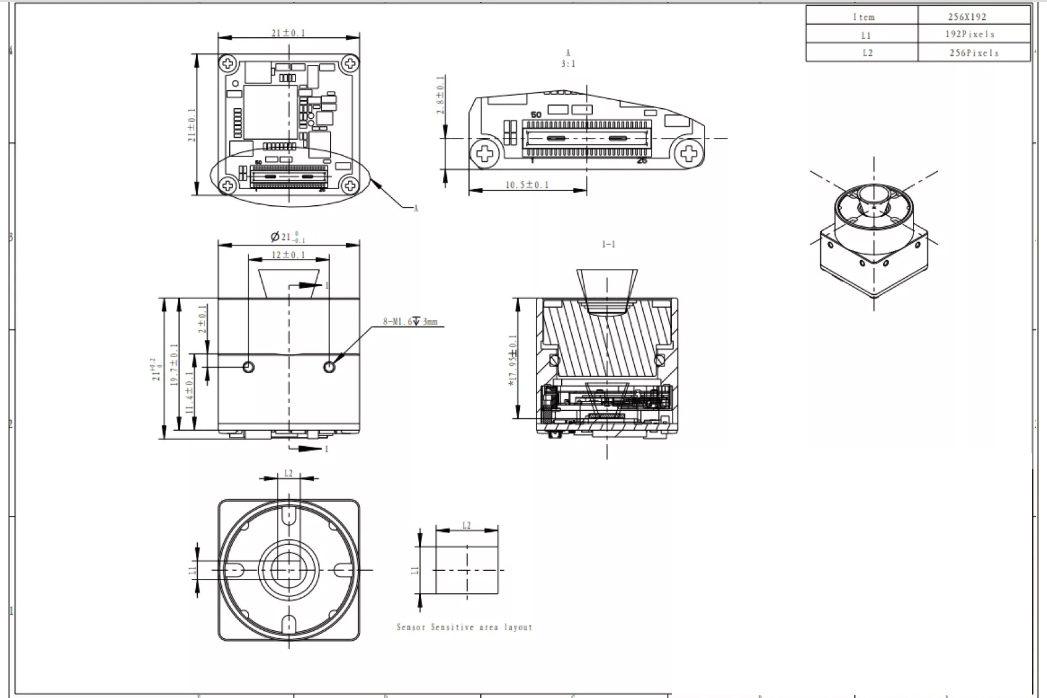

Physical Characteristics of Module
Lens Without   lens/fixed focus/manual focusing
Weight <8 g
Dimension 21mm×21mm
Environment Adaptability
Operating Temperature -40℃~+80℃
Storage Temperature -50℃~+85℃
Humidity 5%~95%, non-condensing
Vibration 6.06g, random vibration, all axes
Impact 80g, 4ms, final peak sawtooth wave, three axes, and six directions
