Miniature UAV Gimbal HD and thermal camera IR

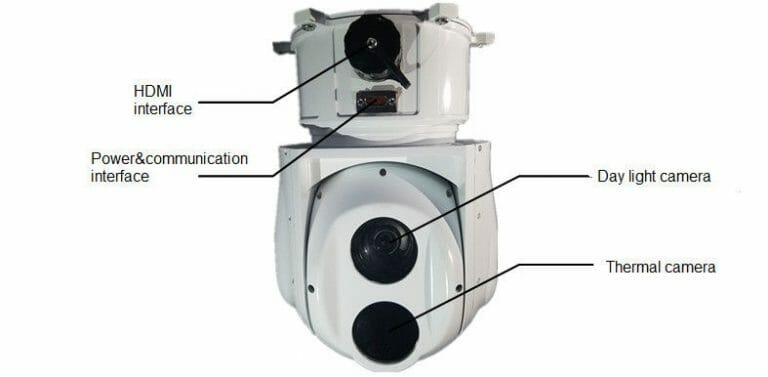

MGH-IR-10X UAV Gimbal   is a small USV EO/IR thermal camera adopting 2-axis stabilized platform with high accuracy. Built-in 10× continuous zooming 1080p HD day light camera and uncooled thermal camera with 35m lens, it is mainly used for USV to search, observe and track targets on land or at sea, to satisfy the navigation, reconnaissance and other application demands. It is compact in structure and highly cost-effective, which has been widely applied not only in helicopters, UAVs, unmanned airships, but also on vessels and vehicles. It is comparatively small and light dual-sensor EO/IR thermal camera in current domestic Chinamarket.

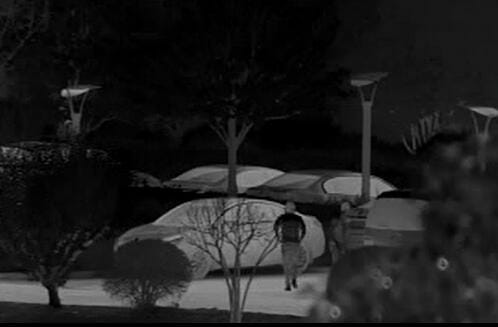

1) IR+ HD daylight camera support surveillance at day & night
2) 2-axis (horizontal and pitch) image stabilization fulfils the seamless surveillance covering
3) Wireless digital transmission technology enables the ground station to control gimbal’s working mode and status as well as real-time return of videos and images from gimbal to ground station.
4)  Standard communication interface facilitates communication with UAVs, helicopters carriers and  easy installation and debugging.
5) Small size, light weight, compact structure, high adaptability, low power dissipation and cost-effective.
6) Image processing board (video tracking board) realizes the real-time target tracking, and support manual tracking, auto-tracking and target locking.
7) Ground control terminal can control various working modes and status of the electro-optical thermal camera system.

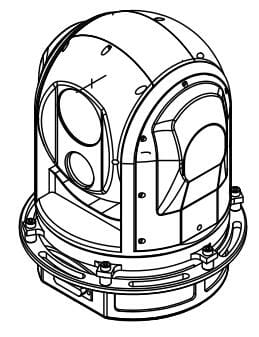

uav gimbal
uav gimbal

SKU: 548710/14 Category: Tags: ,
Weight 1 kg
Dimensions 25 × 25 × 20 cm

Technical Specification

Description Gyro-stabilized Multi-sensor
Platform Two-axis
Azimuth range n×360°
Elevation range -35°~+110°
Max angle speed ≥60°/s
Max angular acceleration ≥80°/s2
Stabilization accuracy ≤0.5mrad
Angular accuracy ±0.1°
IR Camera
Detector VOx uncooled FPA
Pixel 640×512
Spectrum 7.5~13.5um
Focal length 35mm
Pixel size 17μm
Frame frequency 25Hz
Digital Video SD-SDI interface
Daylight Camera
Resolution 1920×1080
Focal length 4.9mm~49mm(10× optical zooming)
FOV 7°03’×4°~49°28’×7°28′
Frame frequency 30Hz
Digital Video HD-SDI interface
External Interface
Video HD-SDI interface(Two-way)
Communication RS232/RS422/RS485
Control protocol Pelco-D and extended protocol
Power Supply DC 12V
Power consumption ≤15W
Dimension ≤Φ145mm×205mm
Weight ≤2.5kg
Installation Below belly
Color White & black
